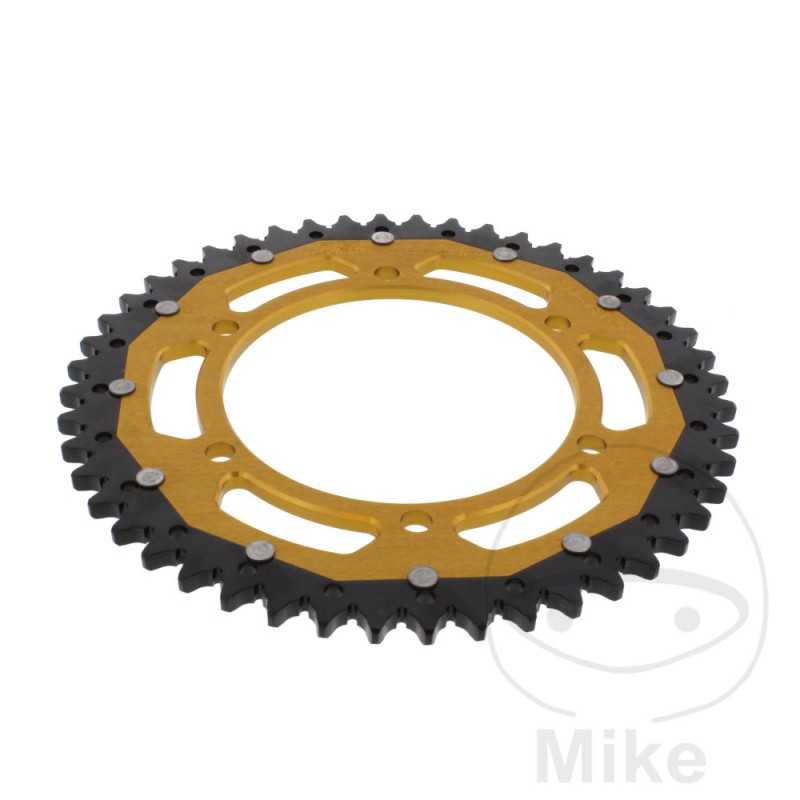

ZF SPROCKETS Transmission plate crown DUAL 48T P-525 Ø130 MM Ø150 758.08.27

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot get between the teeth and thus wear down the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Ideal for road and offroad use.
DIVISION: 525
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 150 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 48
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 H Bastidores: PD06-3000002-PD06-3000101 1987
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 K Bastidores: PD06-3200001-PD06-3200500 1989
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 M Bastidores: PD06-3400001-PD06-3400950 1991
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 N Bastidores: PD06-3500001-PD06-3501067 1992
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 P Bastidores: PD06-3600001-PD06-3600700 1993
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06 R Bastidores: PD06-6000001-PD06-6001425 1994-1995
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD06B T Bastidores: PD06B-TM000001-- 1996
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B V Bastidores: ZDC PD10B henceforthVF000001-- 1997
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B W Bastidores: ZDC PD10B henceforthWF100001-- 1998
Honda XL 600 V Transalp 34 CV, 25 kw 2cil. PD10B X Bastidores: ZDC PD10B henceforthXF150001-- 1999-2000
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 H Bastidores: PD06-5000033-PD06-5011960 1987
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 K Bastidores: PD06-5200008-PD06-5207274 1989
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 L Bastidores: PD06-5300005-- 1990
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 M Bastidores: PD06-5401105-PD06-5407243 1991
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 N Bastidores: PD06-5501154-PD06-5508137 1992
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 P Bastidores: PD06-5600393-PD06-5607924 1993
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 R Bastidores: PD06-5700013-PD06-5712658 1994-1995
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06A T Bastidores: PD06A-TM000001-- 1996
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A V Bastidores: ZDC PD10A henceforthVF000001-- 1997
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A W Bastidores: ZDC PD10A henceforthWF100001-- 1998
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD10A X Bastidores: ZDC PD10A henceforthXF150001-- 1999-2000
Honda XL 600 V Transalp piñón engranaje fino 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje fino 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
Honda XL 600 V Transalp piñón engranaje grueso 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje grueso 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD10B 1 Bastidores: ZDC RD10B henceforth1F030001-- 2001
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD10B Y Bastidores: ZDC RD10B henceforthYF200001-- 2000
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 2 Bastidores: VTM RD11B henceforth2E100001-VTM RD11B henceforth2E199999 2002
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 3 Bastidores: VTMRD11B henceforth3E110001-VTM RD11B henceforth3E199999 2003
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 4 Bastidores: VTM RD11B henceforth4E120001-VTM RD11B henceforth4E199999 2004
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 5 Bastidores: VTM RD11B henceforth5E130001-VTM RD11B henceforth5E199999 2005
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 5 Bastidores: VTM RD11B henceforth5E600001-VTM RD11B henceforth5E699999 2005
Honda XL 650 V Transalp 34 CV, 25 kw 2cil. RD11B 6 Bastidores: VTM RD11B henceforth6E510001-- 2006-2007
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD10A 1 Bastidores: ZDC RD10A 01F030001-- 2001
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD10A Y Bastidores: ZDC RD10A henceforthYF000001-- 2000
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 2 Bastidores: VTM RD11A henceforth2E100001-VTM RD11A henceforth2E199999 2002
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 3 Bastidores: VTMRD11A henceforth3E110001-VTM RD11A henceforth3E199999 2003
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 4 Bastidores: VTM RD11A henceforth4E120001-VTM RD11A henceforth4E199999 2004
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 5 Bastidores: VTM RD11A henceforth5E130001-VTM RD11A henceforth5E199999 2005
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 5 Bastidores: VTM RD11A henceforth5E500001-VTM RD11A henceforth5E599999 2005
Honda XL 650 V Transalp 53 CV, 39 kw 2cil. RD11A 6 Bastidores: VTM RD11A henceforth6E510001-- 2006-2007
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A 8 Bastidores: VTM RD13A henceforth8E000001-VTM RD13A henceforth8E009999 2008
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A 9 Bastidores: VTM RD13A-9E010001-VTM RD13A-9E0199999 2009
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A A Bastidores: VTM RD13A-AE020001-- 2010
Honda XL 700 V Transalp 60 CV, 44 kw 2cil. RD13A B Bastidores: ZDC RD15A henceforthBF010001-- 2011
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B 8 Bastidores: VTM RD13B henceforth8E000001-VTM RD13B henceforth8E009999 2008
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B 9 Bastidores: VTM RD13B-9E010001-VTM RD13B-9E0199999 2009
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD13B A Bastidores: VTM RD13B-AE020001-- 2010
Honda XL 700 VA Transalp ABS 60 CV, 44 kw 2cil. RD15B B Bastidores: ZDC RD15B0-BF010001-- 2011-2013
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN255 39P1 Bastidores: RN255 henceforth00461-- 2011
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN255 39P6 Bastidores: RN255 henceforth10709-- 2012
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 2SH4 Bastidores: RN258 henceforth02078-- 2014
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 2SH7 Bastidores: RN258 henceforth02277-- 2015
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 39PL Bastidores: RN258 henceforth00301-- 2013
Yamaha FZ8 800 N 106 CV, 78 kw 4cil. RN258 39PT Bastidores: RN258 henceforth00379-- 2013
Yamaha FZ8 800 N Anniversary 106 CV, 78 kw 4cil. RN255 39PB Bastidores: RN255 henceforth12002-- 2012
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN256 59P1 Bastidores: RN256 henceforth00301-- 2011
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN256 59P2 Bastidores: RN256 henceforth04091-- 2012
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P5 Bastidores: RN259 henceforth00320-- 2013
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P6 Bastidores: RN259 henceforth00301-- 2013
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P8 Bastidores: RN259 henceforth01582-- 2014
Yamaha FZ8 800 NA ABS 106 CV, 78 kw 4cil. RN259 59P9 Bastidores: RN259 henceforth02142-- 2015-2016
Yamaha FZ8 800 NA Anniversary ABS 106 CV, 78 kw 4cil. RN256 59P3 Bastidores: RN256 henceforth04541-- 2012
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN251 42P1 Bastidores: RN251 henceforth00301-- 2010-2011
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN251 42P4 Bastidores: RN251 henceforth04361-- 2012
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PA Bastidores: RN25F henceforth00301-- 2013
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PE Bastidores: RN25F henceforth00312-- 2013
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PG Bastidores: RN25F henceforth00559-- 2014
Yamaha FZ8 800 S Fazer 106 CV, 78 kw 4cil. RN25F 42PN Bastidores: RN25F henceforth00787-- 2015
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN252 1BD1 Bastidores: RN252 henceforth00301-- 2011
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN252 1BD2 Bastidores: RN252 henceforth04717-- 2012
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD4 Bastidores: RN25G henceforth00301-- 2013
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD6 Bastidores: RN25G henceforth00312-- 2013
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BD8 Bastidores: RN25G henceforth01233-- 2014
Yamaha FZ8 800 SA Fazer ABS 106 CV, 78 kw 4cil. RN25G 1BDA Bastidores: RN25G henceforth02045-- 2015-2016
Yamaha TDM 900 86 CV, 63 kw 2cil. RN081 5PS1 Bastidores: RN081 henceforth00301-- 2002
Yamaha TDM 900 86 CV, 63 kw 2cil. RN084 5PS4 Bastidores: RN084 henceforth00301-- 2003
Yamaha TDM 900 86 CV, 63 kw 2cil. RN111 5PS6 Bastidores: RN111 henceforth00301-- 2004
Yamaha TDM 900 86 CV, 63 kw 2cil. RN111 5PS8 Bastidores: RN111 henceforth06904-- 2005
Yamaha TDM 900 86 CV, 63 kw 2cil. RN111 5PSA Bastidores: RN111 henceforth09373-- 2006
Yamaha TDM 900 86 CV, 63 kw 2cil. RN181 5PSC Bastidores: RN181 henceforth00301-- 2007
Yamaha TDM 900 86 CV, 63 kw 2cil. RN181 5PSE Bastidores: RN181 henceforth02041-- 2008
Yamaha TDM 900 86 CV, 63 kw 2cil. RN181 5PSG Bastidores: RN181 henceforth01996-- 2008
Yamaha TDM 900 86 CV, 63 kw 2cil. RN181 5PSH Bastidores: RN181 henceforth04582-- 2009
Yamaha TDM 900 86 CV, 63 kw 2cil. RN181 5PSK Bastidores: RN181 henceforth05162-- 2010-2011
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN114 2B01 Bastidores: RN114 henceforth00301-- 2005
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN114 2B02 Bastidores: RN114 henceforth05078-- 2006
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN184 2B03 Bastidores: RN184 henceforth00301-- 2007
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN184 2B04 Bastidores: RN184 henceforth02615-- 2008
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN184 2B05 Bastidores: RN184 henceforth02875-- 2008
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN184 2B07 Bastidores: RN184 henceforth05155-- 2009
Yamaha TDM 900 A ABS 86 CV, 63 kw 2cil. RN184 2B08 Bastidores: RN184 henceforth06795-- 2010-2013
