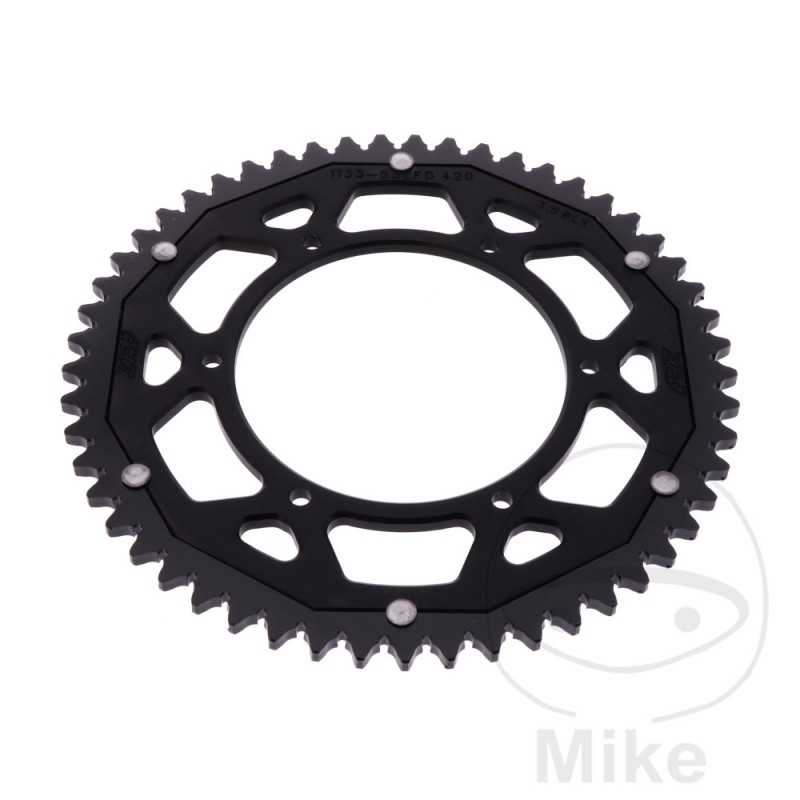

ZF SPROCKETS Transmission plate crown DUAL 53T P-420 Ø108 MM Ø123 758.18.56

ZF-Dual sprockets are among the highest quality and most technologically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

Through hardening, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and greater durability have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cutters ensure that dirt cannot settle between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Best suited for road and off-road.
DIVISION: 420
INSIDE DIAMETER: 108MM
CIRCLE SIZE: 123 MM
HOLE: 6.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 53
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 50 /Replica 5,4 CV, 4 kw 1cil. PL000 Bastidores: --- 2006-2010
Aprilia RS4 50 /Replica 5,4/2,7 CV, 4/2 kw 1cil. TK000 Bastidores: --- 2011-2013
Aprilia RS4 50 /Replica euro2 5,4/2,7 CV, 4/2 kw 1cil. TK000/VX000 Bastidores: --- 2014-2018
Aprilia RS4 50 euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2018-2019
Aprilia RS4 50 Euro4 3 CV, 2,2 kw 1cil. KRA00 Bastidores: --- 2020-2021
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. - Bastidores: --- 2014-2018
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. PVG01 Bastidores: --- 2011-2012
Aprilia SX 50 SM 4,9 CV, 3,6 kw 1cil. SWA Bastidores: --- 2013
Aprilia SX 50 SM Limited Edition 4,9 CV, 3,6 kw 1cil. SWA00/PVG01 Bastidores: --- 2014-2016
Derbi GPR 50 Nude 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2007-2012
Derbi GPR 50 Nude 3,2 CV, 2,3 kw 1cil. GR1A1B Bastidores: VTHGR1A1B4H257767-- 2004-2006
Derbi GPR 50 Racing 1,5 CV, 1,1 kw 1cil. GR1A1A Bastidores: VTHGR1A1A4H250007-- 2005
Derbi GPR 50 Racing 1,5 CV, 1,1 kw 1cil. GR1D1A Bastidores: --- 2006
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2008-2009
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. GR1D1A Bastidores: --- 2007
Derbi GPR 50 Racing 2,9 CV, 2,1 kw 1cil. RF1A1A Bastidores: --- 2010-2012
Derbi GPR 50 Racing 8,5 CV, 6,25 kw 1cil. PVXA00 Bastidores: --- 2013-2016
Derbi GPR 50 Replica Racing 2,4 CV, 1,75 kw 1cil. GPRRWB Bastidores: --- 2003-2004
Derbi Senda 50 R DRD X-Treme 2,9 CV, 2,1 kw 1cil. ZDPAB Bastidores: --- 2014-2017
Derbi Senda 50 SM DRD Evo HYP 2,9 CV, 2,1 kw 1cil. SR2D1C Bastidores: VTHSR2D1C8H403419-- 2008-2012
Derbi Senda 50 SM DRD Racing 1cil. PABB00 Bastidores: --- 2012-2017
Derbi Senda 50 SM DRD Racing 2,4 CV, 1,8 kw 1cil. PABB00 Bastidores: --- 2011
Derbi Senda 50 SM DRD X-Treme 2,9 CV, 2,1 kw 1cil. - Bastidores: --- 2012-2017
Motorhispania RX 50 R 1cil. - Bastidores: --- 2009-2011
Motorhispania RX 50 Superracing 1,9 CV, 1,4 kw 1cil. - Bastidores: --- 2006-2007
Peugeot XR6 50 1,9 CV, 1,4 kw 1cil. VGA DR01E2 DR01 Bastidores: --- 2006-2007
Sachs MadAss 50 4-marchas 2,7 CV, 2 kw 1cil. 649003 649 Bastidores: --- 2004-2005
Sachs MadAss 50 automática 2,7 CV, 2 kw 1cil. 649004 649 Bastidores: --- 2005
