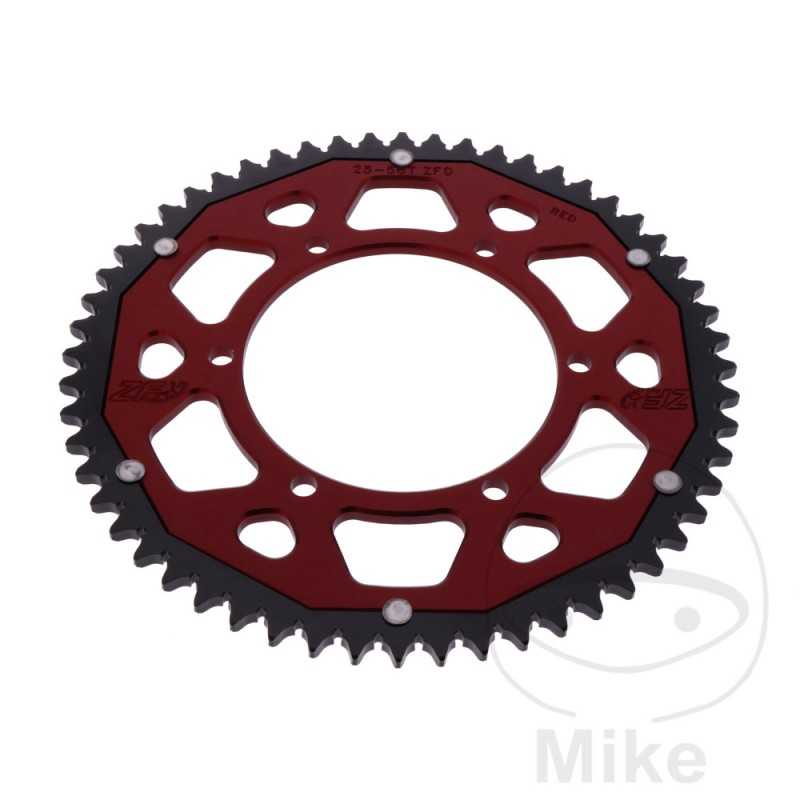

ZF SPROCKETS Transmission plate crown DUAL 56T P-428 Ø108 MM Ø123 758.18.31

ZF-Dual sprockets are among the highest quality and most technologically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

Through hardening, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and greater durability have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cutters ensure that dirt cannot settle between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Best suited for road and off-road.
DIVISION: 428
INSIDE DIAMETER: 108MM
CIRCLE SIZE: 123 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 56
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 4T ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 4T Replica ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T Replica ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS4 125 4T 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 125 4T Replica 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia Tuono 125 4T ABS 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2017-2020
Aprilia Tuono 125 4T ABS Euro4 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2021
Malaguti Monte Pro 125 Anniversay Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Monte Pro 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti RST 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Zündapp ZXA 125 ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2020
