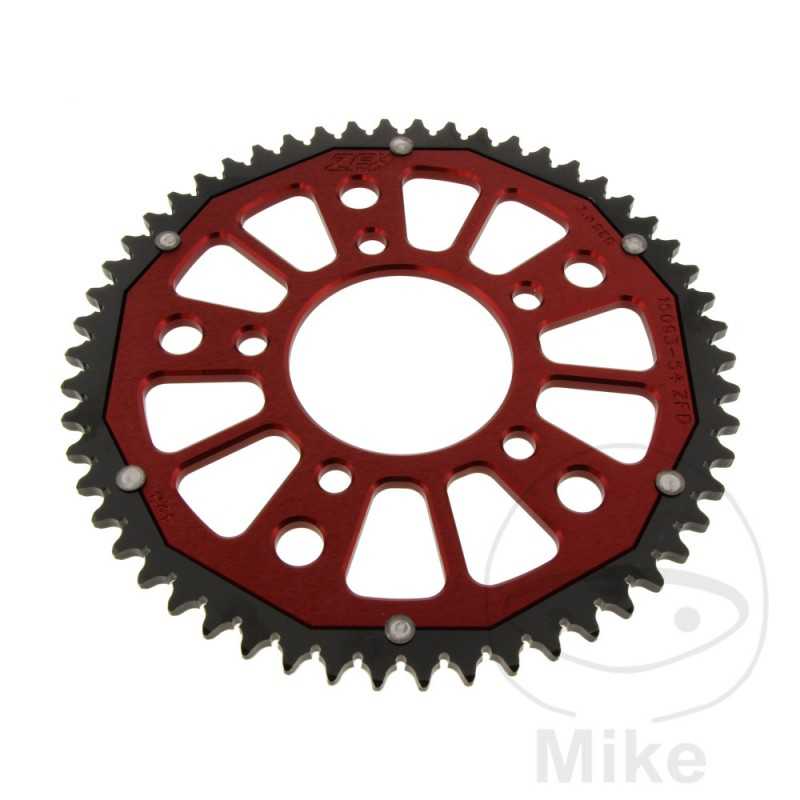

ZF SPROCKETS Transmission plate crown DUAL 54T P-428 Ø74 MM Ø100 758.17.69

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 428
INSIDE DIAMETER: 74MM
CIRCLE SIZE: 100 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 54
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SWM SM 125 R ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2021-2022
SWM SM 125 R CBS 15 CV, 11 kw 1cil. B201ABH Bastidores: --- 2017-2018
SWM SM 125 R CBS 15 CV, 11 kw 1cil. B201ABK Bastidores: --- 2019
SWM SM 125 R CBS Euro4 15 CV, 11 kw 1cil. B201ABL Bastidores: ZN0B201ABLV000000-ZN0B201ABLV999999 2020
SWM SM 125 R CBS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2021-2022
SWM SM 125 R Factory CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2017-2019
SWM SMT 125 R CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019
