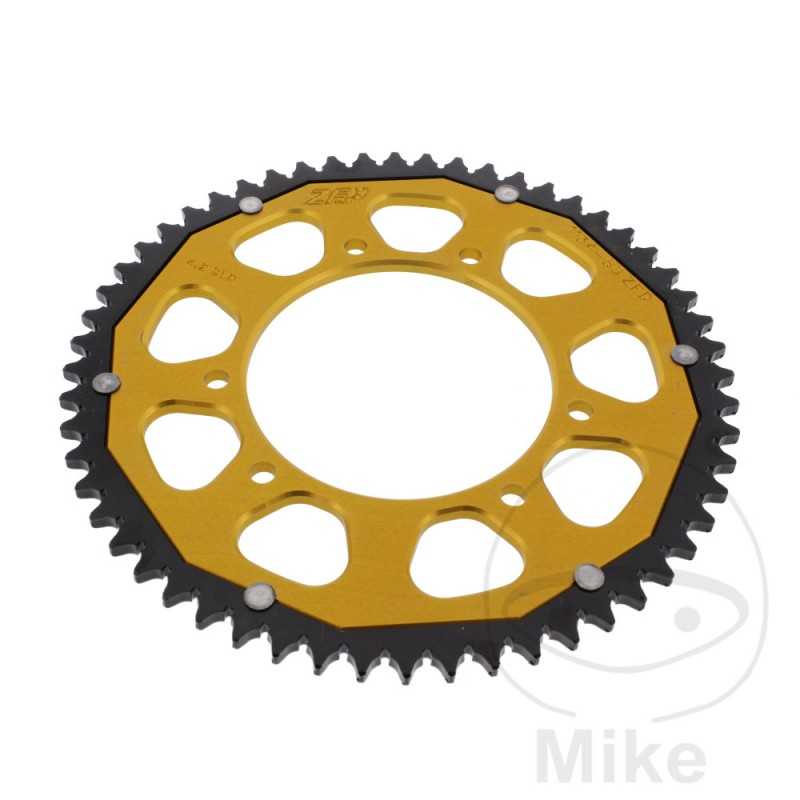

ZF SPROCKETS Transmission plate crown DUAL 56T P-428 Ø105 MM Ø125 758.17.46

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 428
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 125 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 56
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: --VTHMS1A1A7N001790 2007
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: VTHMS1A1A7N001791-- 2007-2010
Derbi Senda 125 Cross City 12 CV, 8,8 kw 1cil. SC2D1B/SC2E1B Bastidores: --- 2008-2016
Derbi Senda 125 R 11,4 CV, 8,4 kw 1cil. SC1B1A Bastidores: VTHSC1B1A5H270708-- 2007-2008
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: --- 2004
Derbi Senda 125 R 12 CV, 9 kw 1cil. SC1B1A Bastidores: VTHSC1B1A5H270708-- 2005-2006
Derbi Senda 125 R 4V DRD 15 CV, 11 kw 1cil. DR1A1A Bastidores: VTHDR1A1A00000001-- 2010-2015
Derbi Senda 125 R Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 125 R Baja 12 CV, 8,8 kw 1cil. SC1E1A Bastidores: --- 2010-2014
Derbi Senda 125 SM 11,4 CV, 8,4 kw 1cil. SC2B1A Bastidores: VTHSC2B1A5H269375-- 2007
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2A1A Bastidores: VTHSC2A1A4H236323-- 2004
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: --- 2004
Derbi Senda 125 SM 12 CV, 9 kw 1cil. SC2B1A Bastidores: VTHSC2B1A5H269375-- 2005-2006
Derbi Senda 125 SM 4V DRD 15 CV, 11 kw 1cil. DR2A1A Bastidores: VTHDR2A1A00000001-- 2010-2013
Derbi Senda 125 SM Baja 11,4 CV, 8,4 kw 1cil. - Bastidores: --- 2007-2009
Derbi Senda 125 SM Baja 12 CV, 8,8 kw 1cil. SC1E1A Bastidores: --- 2010
Derbi Senda 125 SM Baja 12 CV, 8,8 kw 1cil. SC2E1A Bastidores: --- 2011-2014
Derbi Senda 125 Terra 15 CV, 11 kw 1cil. TS1A1A Bastidores: VTHTS1A1A8H384751-- 2008-2014
Derbi Senda 125 Terra Adventure 15 CV, 11 kw 1cil. TS1A2B Bastidores: VTHTS1A2B8H407288-- 2008-2016
Malaguti X3M 125 Enduro 10,3 CV, 7,6 kw 1cil. 7500VE5 Bastidores: --- 2008-2011
Malaguti X3M 125 Motard 10,3 CV, 7,6 kw 1cil. 7500VM5 Bastidores: --- 2008-2011
Rieju Marathon 125 AC Cross 10.3 CV, 7,6 kw 1cil. - Bastidores: --- 2014-2017
Rieju Marathon 125 AC Supermoto 10.3 CV, 7,6 kw 1cil. - Bastidores: --- 2014-2015
Rieju Marathon 125 LC Pro 15 CV, 11 kw 1cil. - Bastidores: --- 2009-2015
Rieju Marathon 125 LC Pro Supermoto 15 CV, 11 kw 1cil. - Bastidores: --- 2009-2015
Rieju MRT 125 Cross 10.3 CV, 7,6 kw 1cil. - Bastidores: --- 2012-2015
Rieju MRT 125 Supermoto 10.3 CV, 7,6 kw 1cil. - Bastidores: --- 2014-2015
Rieju MRX 125 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2002-2010
Rieju RS-3 125 LC 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2017
Rieju RS-3 125 LC NKD 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2017
Rieju RS-3 125 LC Pro 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2015
Rieju SMX 125 llanta de fundición 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2006
Rieju SMX 125 llanta de radios 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2004-2005
Rieju SMX 125 llanta de radios 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2007-2010
Rieju SMX 125 Super Motard llanta de radios 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2003
Rieju Tango 125 10,3 CV, 7,6 kw 1cil. - Bastidores: --- 2011-2016
Rieju Tango 125 10,7 CV, 7,9 kw 1cil. - Bastidores: --- 2006-2010
Rieju Tango 125 CBS 10,3 CV, 7,6 kw 1cil. - Bastidores: --- 2017
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401A 3D63 Bastidores: 7401A074 henceforth15409-- 2006
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401E 13D1 Bastidores: 7401E074 henceforth18982-- 2007
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401G 13D3 Bastidores: 7401G074 henceforth21663-- 2007
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401G 13D5 Bastidores: 7401G074 henceforth24439-- 2008-2012
Yamaha XT 125 R 12,5 CV, 9,2 kw 1cil. 7401A 3D61 Bastidores: 7401A074 henceforth02071-- 2005
Yamaha XT 125 X 10 CV, 7,3 kw 1cil. 7401B 3D64 Bastidores: 7401B074 henceforth16351-- 2006
Yamaha XT 125 X 10 CV, 7,3 kw 1cil. 7401F 13D2 Bastidores: 7401F074 henceforth19168-- 2007
Yamaha XT 125 X 10 CV, 7,3 kw 1cil. 7401F 13D4 Bastidores: --- 2007
Yamaha XT 125 X 10 CV, 7,3 kw 1cil. 7401H 13D6 Bastidores: 7401H074 henceforth25142-- 2008-2012
Yamaha XT 125 X 12,5 CV, 9,2 kw 1cil. 7401B 3D62 Bastidores: 7401B074 henceforth03406-- 2005
