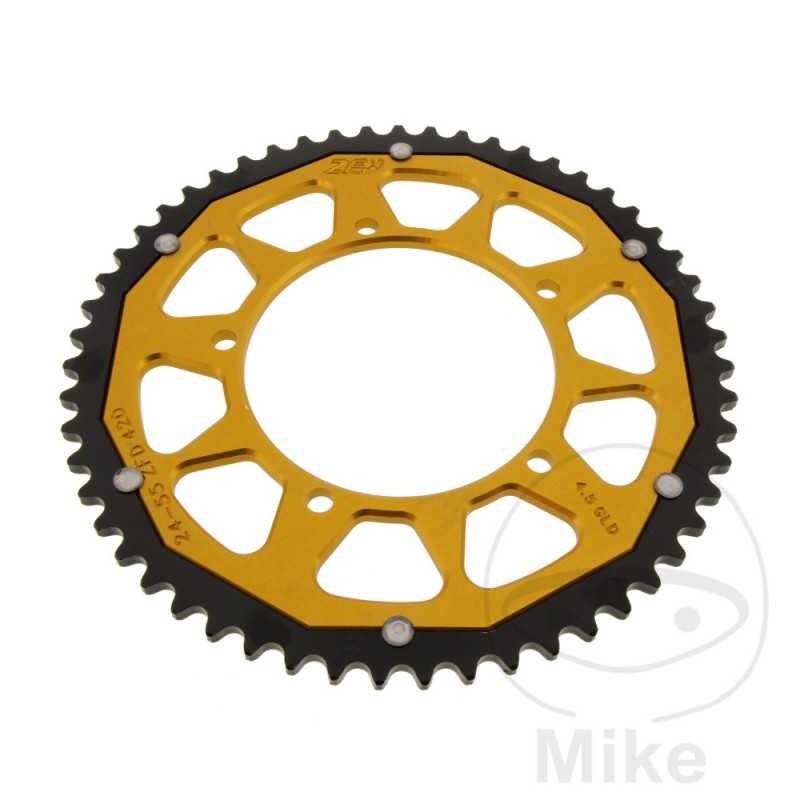

ZF SPROCKETS Transmission plate crown DUAL 55T P-420 Ø105 MM Ø120 758.17.33

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 420
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 120 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 55
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia MX 50 2 CV, 1,5 kw 1cil. ST000/ST001/STA01 Bastidores: --- 2003
Aprilia MX 50 2 CV, 1,5 kw 1cil. STC00 Bastidores: --- 2004
Aprilia RX 50 6-marchas 1cil. ST000/ST001/STA01 Bastidores: --- 2002-2003
Aprilia RX 50 6-marchas 1cil. STA00 Bastidores: --- 2003-2004
Aprilia RX 50 6-marchas 2,7 CV, 2 kw 1cil. ST000/ST001/STA01 Bastidores: --- 1998-2001
Aprilia RX 50 Racing 6-marchas 1cil. STC00 Bastidores: --- 2003-2006
Generic TR 50 SM 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013
Generic TR 50 SM Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013
Generic TR 50 SM One 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013
Generic TR 50 X 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013
Generic TR 50 X Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013
Generic Trigger 50 SM 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 SM 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 SM Competition 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 SM Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 SM One 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 X 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 X 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Generic Trigger 50 X Competition 1,9 CV, 1,39 kw 1cil. - Bastidores: --- 2008-2010
Generic Trigger 50 X Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2011-2012
Keeway TX 50 SM X-Ray 2 CV, 1,4 kw 1cil. EXRY005001 Bastidores: --- 2008-2009
Keeway TX 50 X-Ray 2 CV, 1,4 kw 1cil. EXRY005001 Bastidores: --- 2008-2009
KSR-Moto TR 50 SM 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013-2018
KSR-Moto TR 50 SM Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013-2018
KSR-Moto TR 50 SM One 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013-2018
KSR-Moto TR 50 X 3 CV, 2,2 kw 1cil. - Bastidores: --- 2013-2018
KSR-Moto TR 50 X 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2019-2022
KSR-Moto TR 50 X Competition 3 CV, 2,2 kw 1cil. - Bastidores: --- 2014-2015
Malaguti XTM 50 Enduro 3,1 CV, 2,3 kw 1cil. - Bastidores: --- 2019-2020
