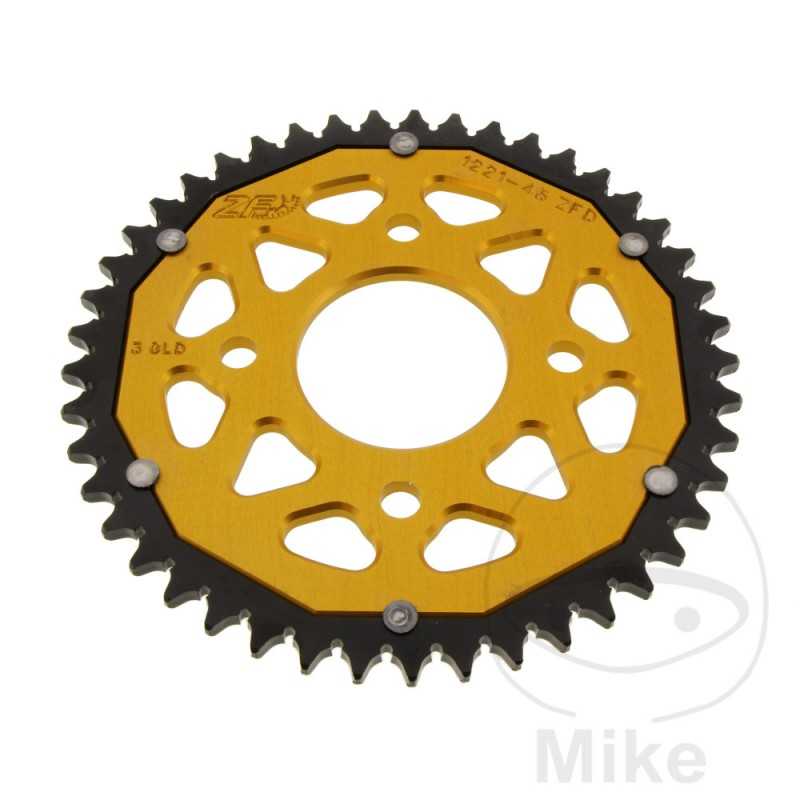

ZF SPROCKETS Transmission plate crown DUAL 45T P-428 Ø058 MM Ø090 758.17.07

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cuts ensure that dirt does not stick between the teeth and therefore wear the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

The most suitable for road and offroad.
DIVISION: 428
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 90 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 45
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 125 F (GLR125) 10,6 CV, 7,8 KW 1CIL. JC64A F BASTIDORES: LWB JC64A-F1000015-LWB JC64A-F1099999 2015-2016
HONDA CB 125 F (GLR125WH) CBS 10,6 CV, 7,8 KW 1CIL. JC74A H BASTIDORES: LWB JC74A-H1000017-- 2017-2020
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 R 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50A D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 R 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RS REPSOL 13,6 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RS REPSOL 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A C BASTIDORES: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A D BASTIDORES: MLH JC50A-D5100001-- 2013-2014
HONDA CBR 125 RT 13,3 CV, 10 KW 1CIL. JC50A F BASTIDORES: MLH JC50A-D5200001-- 2015-2019
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B C BASTIDORES: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B D BASTIDORES: MLH JC50B-D5100001-- 2013-2014
HONDA CBR 125 RT 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B F BASTIDORES: MLH JC50B-D5200001-- 2015
HONDA CBR 125 RW 13,3 CV, 10 KW 1CIL. JC50A B BASTIDORES: MLH JC50A-B5000001-MLH JC50A-B5099999 2011
HONDA CBR 125 RW 80 KM/H 6,4 CV, 4,7 KW 1CIL. JC50B B BASTIDORES: MLH JC50B-B5000001-MLH JC50B-B5099999 2011
