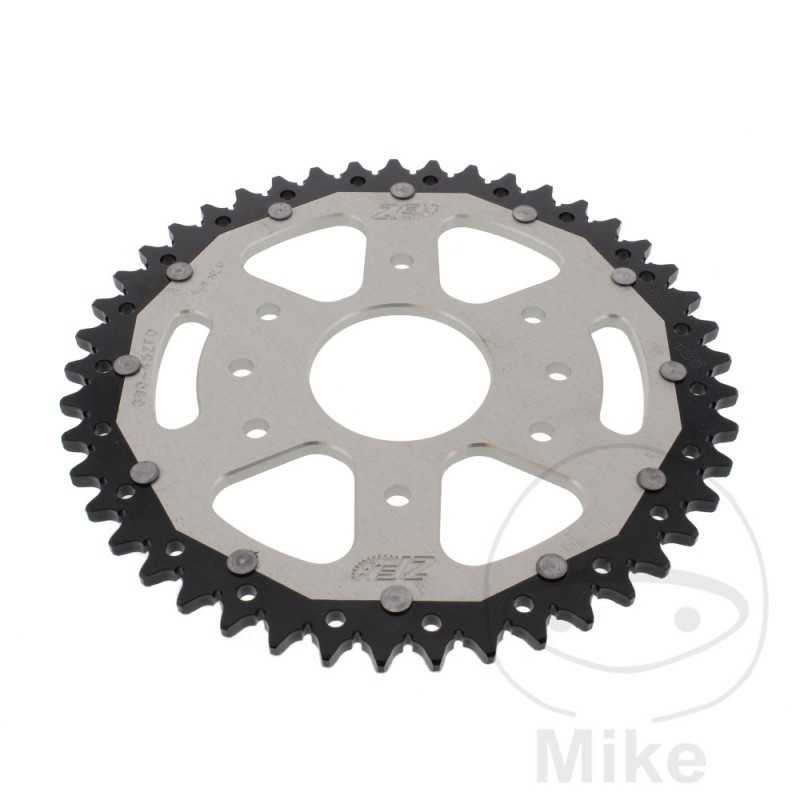

ZF SPROCKETS Transmission plate crown DUAL 45T P-520 Ø063 MM Ø110 758.16.31

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 520
INSIDE DIAMETER: 63MM
CIRCLE SIZE: 110 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 45
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna Svartpilen 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2021-2022
Husqvarna Svartpilen 401 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2022
Husqvarna Vitpilen 401 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2022
KTM Adventure 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2020-2022
KTM Duke 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2022
KTM Duke 200 ABS 26 CV, 19,1 kw 1cil. - Bastidores: --- 2015-2017
KTM Duke 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2020
KTM Duke 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021-2022
KTM RC 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 125 ABS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
KTM RC 125 ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2022
KTM RC 200 ABS 26 CV, 19 kw 1cil. - Bastidores: --- 2014-2017
KTM RC 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021
KTM RC 390 R ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2019
