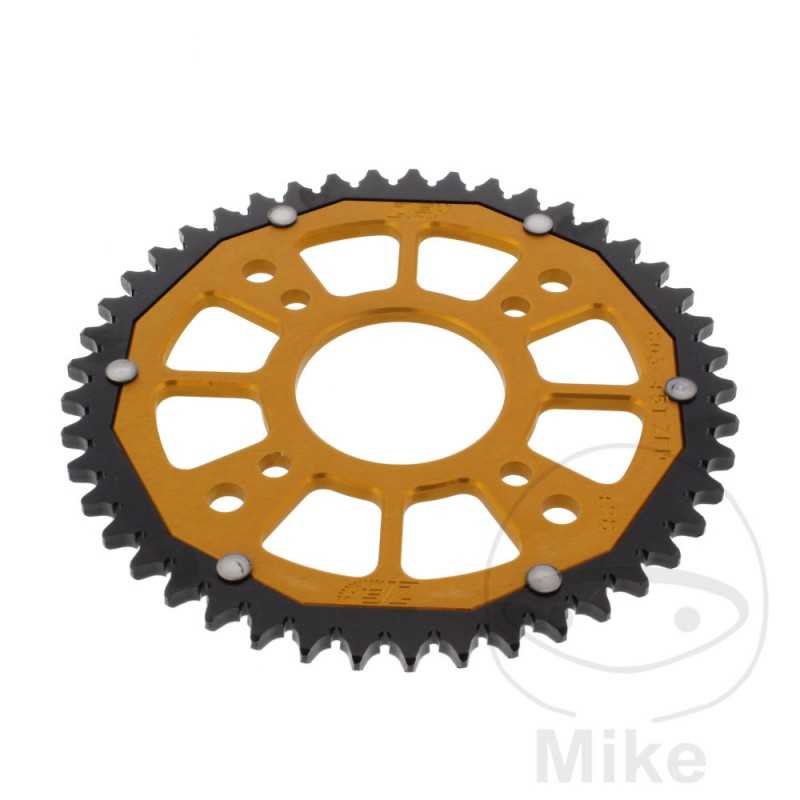

ZF SPROCKETS Transmission plate crown DUAL 45T P-428 Ø058 MM Ø090 758.14.89

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot get between the teeth and thus wear down the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Ideal for road and offroad use.
DIVISION: 428
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 90 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 45
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GSX-R 125 A ABS 15 CV, 11 kw 1cil. DL33AZ M0 Bastidores: DL33AZ-LJ100001-DL33AZ-LJ999999 2020
Suzuki GSX-R 125 RL ABS 15 CV, 11 kw 1cil. DL33AZ L8 Bastidores: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
Suzuki GSX-R 125 RLX ABS 15 CV, 11 kw 1cil. DL33AZ L8 Bastidores: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
Suzuki GSX-R 125 RLX ABS 15 CV, 11 kw 1cil. DL33EZ M3 Bastidores: DL32EZPJ-100001-DL32EZPJ-999999 2022-2023
Suzuki GSX-R 125 RLZ ABS 15 CV, 11 kw 1cil. DL33AZ M1 Bastidores: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
Suzuki GSX-R 125 XA ABS 15 CV, 11 kw 1cil. DL33AZ L9 Bastidores: DL33AZ-KJ100001-DL33AZ-KJ199999 2019
Suzuki GSX-R 125 XA ABS 15 CV, 11 kw 1cil. DL33AZ M1 Bastidores: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
Suzuki GSX-S 125 ML ABS 15 CV, 11 kw 1cil. DL32AZ L8 Bastidores: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
Suzuki GSX-S 125 MLX ABS 15 CV, 11 kw 1cil. DL32AZ L8 Bastidores: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
Suzuki GSX-S 125 RLX ABS 15 CV, 11 kw 1cil. DL31EZ M3 Bastidores: DL32EZPJ1 henceforth0001-DL32EZPJ-999999 2022-2023
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ L9 Bastidores: DL32AZ-KJ100001-DL32AZ-KJ999999 2019
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ M0 Bastidores: DL32AZ-LJ100001-DL32AZ-LJ999999 2020
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ M1 Bastidores: DL33AZMJ-100001-DL33AZMJ-999999 2021
