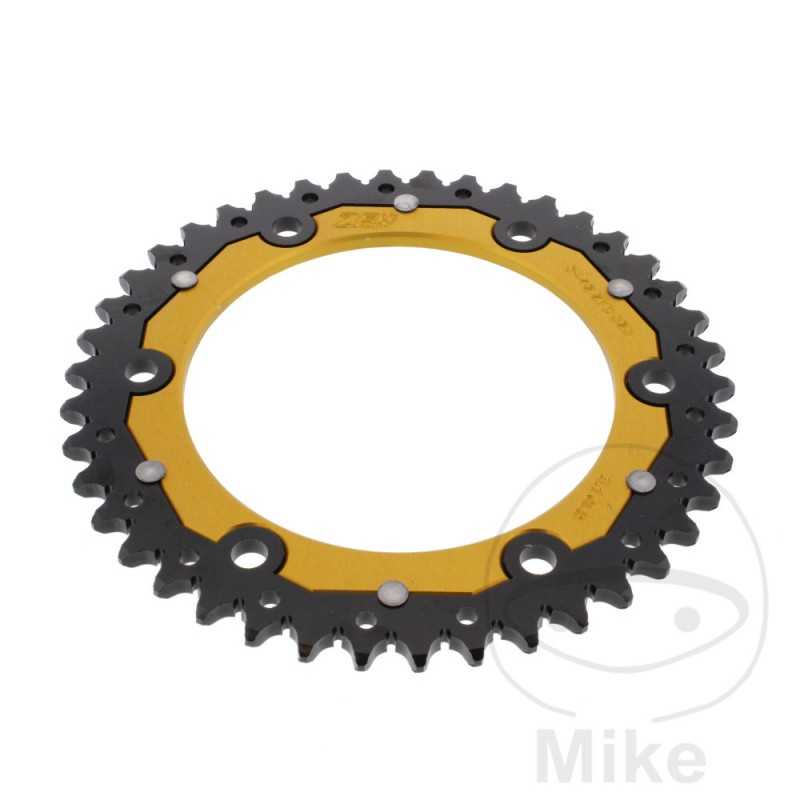

ZF SPROCKETS Transmission plate crown DUAL 42T P-525 Ø140 MM Ø168 758.09.89

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot get between the teeth and thus wear down the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Ideal for road and offroad use.
DIVISION: 525
INSIDE DIAMETER: 140MM
CIRCLE SIZE: 168 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 42
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW F 650 800 GS 34 CV, 25 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2009-2012
BMW F 650 800 GS 71 CV, 52 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2009-2012
BMW F 650 800 GS ABS 34 CV, 25 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2009-2012
BMW F 650 800 GS ABS 71 CV, 52 KW 2CIL. E8GS/K72 0218 BASTIDORES: --- 2009-2012
BMW F 700 800 GS ABS 48 CV, 35 KW 2CIL. 4G80R/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS 48 CV, 35 KW 2CIL. E8GS/K70 0B01 BASTIDORES: --- 2013-2016
BMW F 700 800 GS ABS 75 CV, 55 KW 2CIL. 4G80/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS 75 CV, 55 KW 2CIL. E8GS/K70 0B01 BASTIDORES: --- 2013-2016
BMW F 700 800 GS ABS ESA 48 CV, 35 KW 2CIL. 4G80R/K70 0B06 BASTIDORES: --- 2017
BMW F 700 800 GS ABS ESA 75 CV, 55 KW 2CIL. 4G80/K70 0B06 BASTIDORES: --- 2017
BMW F 800 800 GS 85 CV, 63 KW 2CIL. E8GS/K72 0219 BASTIDORES: --- 2009-2012
BMW F 800 800 GS ABS 48 CV, 35 KW 2CIL. 4G80R/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS 48 CV, 35 KW 2CIL. E8GS/K72 0B02 BASTIDORES: --- 2013-2016
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. 4G80/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. E8GS/K72 0219 BASTIDORES: --- 2009-2012
BMW F 800 800 GS ABS 85 CV, 63 KW 2CIL. E8GS/K72 0B02 BASTIDORES: --- 2013-2016
BMW F 800 800 GS ABS ESA 48 CV, 35 KW 2CIL. 4G80R/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ABS ESA 85 CV, 63 KW 2CIL. 4G80/K72 0B07 BASTIDORES: --- 2017
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. E8GS/K75 0B05 BASTIDORES: --- 2013-2015
BMW F 800 800 GS ADVENTURE ABS 48 CV, 35 KW 2CIL. E8GS/K75 0B55 BASTIDORES: --- 2016
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. E8GS/K75 0B05 BASTIDORES: --- 2013-2015
BMW F 800 800 GS ADVENTURE ABS 85 CV, 63 KW 2CIL. E8GS/K75 0B55 BASTIDORES: --- 2016
BMW F 800 800 GS ADVENTURE ABS ESA 48 CV, 35 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 GS ADVENTURE ABS ESA 85 CV, 63 KW 2CIL. 4G80/K75 0B55 BASTIDORES: --- 2017-2018
BMW F 800 800 R 34 CV, 25 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R 87 CV, 64 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R ABS 34 CV, 25 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2012
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2013-2014
BMW F 800 800 R ABS 48 CV, 35 KW 2CIL. E8ST/K73 0B04 BASTIDORES: --- 2015-2016
BMW F 800 800 R ABS 87 CV, 64 KW 2CIL. E8ST/K73 0217 BASTIDORES: --- 2009-2014
BMW F 800 800 R ABS 90 CV, 66 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS 90 CV, 66 KW 2CIL. E8ST/K73 0B04 BASTIDORES: --- 2015-2016
BMW F 800 800 R ABS ESA 48 CV, 35 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
BMW F 800 800 R ABS ESA 90 CV, 66 KW 2CIL. 4R80/K73 0B54 BASTIDORES: --- 2017-2019
