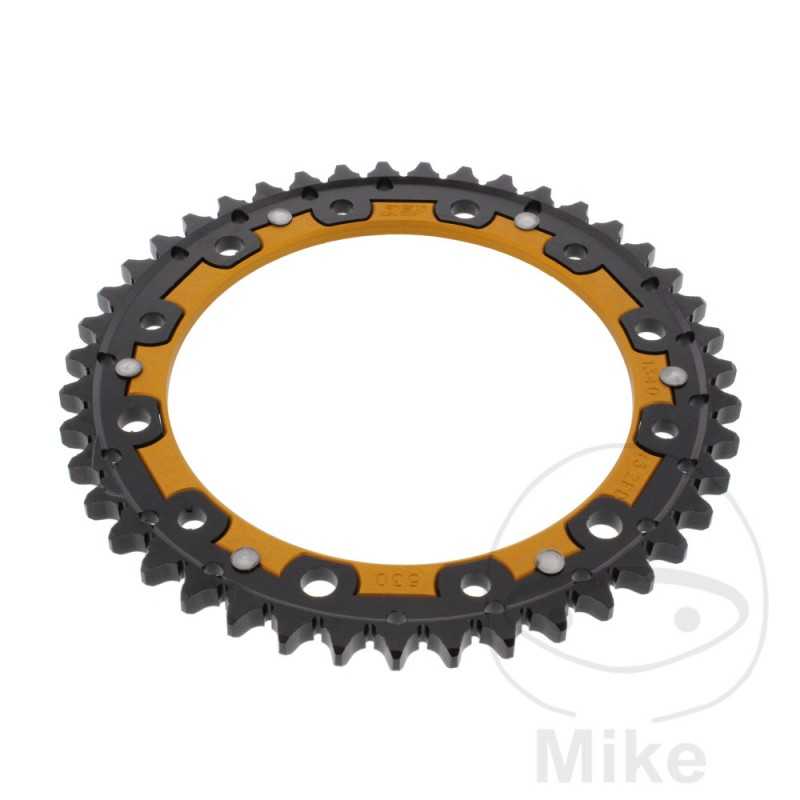

ZF SPROCKETS Transmission plate crown DUAL 43T P-530 Ø154 MM Ø176 758.08.64

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot get between the teeth and thus wear down the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Ideal for road and offroad use.
DIVISION: 530
INSIDE DIAMETER: 154MM
CIRCLE SIZE: 176 MM
HOLE: 10.5
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 43
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A 9 BASTIDORES: ZDC SC60A henceforth9F000001-ZDC SC60A henceforth9F029999 2008-2009
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A A BASTIDORES: ZDC SC60A henceforthAF030001-ZDC SC60A henceforthAF049999 2010
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A B BASTIDORES: ZDC SC60A henceforthBF050001-ZDC SC60A henceforthBF059999 2011
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A C BASTIDORES: ZDC SC60A henceforthCF065001-- 2012
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A D BASTIDORES: ZDC SC60A henceforthDF075001-ZDC SC60A henceforthDF079999 2013
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A E BASTIDORES: ZDC SC60A henceforthEF085001-ZDC SC60A henceforthEF089999 2014
HONDA CB 1000 R 125 CV, 92 KW 4CIL. SC60A F BASTIDORES: ZDC SC60A henceforthEF085001-- 2015-2016
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C 9 BASTIDORES: ZDC SC60C henceforth9F000001-ZDC SC60C 09F029999 2008-2009
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C A BASTIDORES: ZDC SC60C henceforthAF030001-ZDC SC60C henceforthAF049999 2010
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C B BASTIDORES: ZDC SC60C henceforthBF050001-ZDC SC60C henceforthBF059999 2011
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C C BASTIDORES: ZDC SC60C henceforthCF065001-- 2012
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C D BASTIDORES: ZDC SC60C henceforthDF075001-ZDC SC60C henceforthDF079999 2013
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C E BASTIDORES: ZDC SC60C henceforthEF085001-ZDC SC60C henceforthEF089999 2014
HONDA CB 1000 RA ABS 125 CV, 92 KW 4CIL. SC60C F BASTIDORES: ZDC SC60C henceforthFF090001-- 2015-2016
HONDA VFR 750 F 100 CV, 74 KW 4CIL. RC36 L BASTIDORES: RC36-2000060-RC36-2009630 1990
HONDA VFR 750 F 100 CV, 74 KW 4CIL. RC36 M BASTIDORES: RC36-2100004-RC36-2108297 1991
HONDA VFR 750 F 100 CV, 74 KW 4CIL. RC36 N BASTIDORES: RC36-2200014-RC36-2206916 1992
HONDA VFR 750 F 100 CV, 74 KW 4CIL. RC36 P BASTIDORES: RC36-2300001-RC36-2306684 1993
HONDA VFR 750 F 98 CV, 72 KW 4CIL. RC36 R BASTIDORES: RC36-2400060-RC36-2408470 1994
HONDA VFR 750 F 98 CV, 72 KW 4CIL. RC36 S BASTIDORES: RC36-2500001-RC36-2505150 1995
HONDA VFR 750 F 98 CV, 72 KW 4CIL. RC36B T BASTIDORES: RC36B-TM000001-- 1996
HONDA VFR 750 F 98 CV, 72 KW 4CIL. RC36B V BASTIDORES: RC36B-VM100001-- 1997
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 2 BASTIDORES: JH2 RC46A-2M400001-JH2 RC46A-2M499999 2002
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 3 BASTIDORES: JH2 RC46A-3M500001-JH2 RC46A-3M599999 2003
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 4 BASTIDORES: JH2 RC46A-4M600001-JH2 RC46A-4M699999 2004
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 5 BASTIDORES: JH2 RC46A-5M700001-- 2005
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 6 BASTIDORES: JH2 RC46A-6M800001-JH2 RC46A-6M999999 2006-2007
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8K010001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 8 BASTIDORES: JH2 RC46A-8M000001-- 2008
HONDA VFR 800 109 CV, 80 KW 4CIL. RC46A 9 BASTIDORES: --- 2009-2010
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 2 BASTIDORES: JH2 RC46C-2M400001-JH2 RC46C-2M499999 2002
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 3 BASTIDORES: JH2 RC46C-3M500001-JH2 RC46C-3M599999 2003
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 4 BASTIDORES: JH2 RC46C-4M600001-JH2 RC46C-4M699999 2004
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 5 BASTIDORES: JH2 RC46C-5M700001-- 2005
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 6 BASTIDORES: JH2 RC46C-6M800001-JH2 RC46C-6M899999 2006-2007
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8K010001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 8 BASTIDORES: JH2 RC46C-8M000001-- 2008
HONDA VFR 800 A ABS 109 CV, 80 KW 4CIL. RC46C 9 BASTIDORES: --- 2009-2013
HONDA VFR 800 FI 106/98 CV, 78/72 KW 4CIL. RC46D 1 BASTIDORES: JH2 RC46D-1M300001-- 2001
HONDA VFR 800 FI 106/98 CV, 78/72 KW 4CIL. RC46D Y BASTIDORES: JH2 RC46D-YM200001-- 2000
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46A W BASTIDORES: JH2 RC46A-WM000001-- 1998
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46B W BASTIDORES: JH2 RC46B-WM000001-- 1998
HONDA VFR 800 FI 98 CV, 72 KW 4CIL. RC46B X BASTIDORES: JH2 RC46B-XM100001-- 1999
HONDA VFR 800 FI JUBI MODELL 98 CV, 72 KW 4CIL. RC46B X BASTIDORES: JH2 RC46B-XM150001-- 1999
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A B BASTIDORES: JH2 RC60A-BK000001-JH2 RC60A-BK099999 2011
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A C BASTIDORES: JH2 RC60A-CK100001-JH2 RC60A-CK199999 2012
HONDA VFR 800 X CROSSRUNNER ABS 102 CV, 75 KW 2CIL. RC60A D BASTIDORES: JH2 RC60A-DK200001-- 2013-2014
