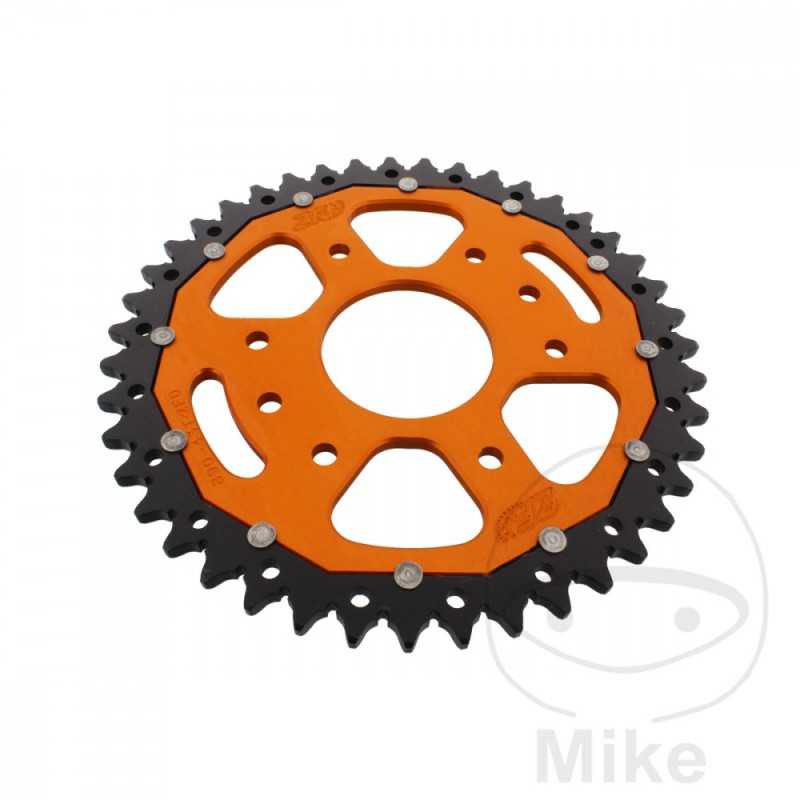

ZF SPROCKETS Transmission plate crown DUAL 43T P-520 Ø063 MM Ø110 758.06.12

ZF two sprockets are among the highest quality and most technologically advanced sprockets in the world.

The secret lies in the connection of the strength of steel and the ease of duralumin.

This aluminum alloy is characterized by enormous strength and rigidity, as well as light weight.

The tensile strength is about 11 times of pure aluminum.

By hardening duralumin almost reached the strength of steel.

implemented is therefore a lower weight and greater durability.

Grinding at the base of the tooth of the chain wheel ensure optimal self-cleaning.

These millings ensure that dirt cannot start between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of the IF double sprockets is approximately three times more than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Ideal for highway and off-road.
DIVISION: 520
INSIDE DIAMETER: 63MM
CIRCLE SIZE: 110 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 43
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna Svartpilen 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2021-2022
Husqvarna Svartpilen 401 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2022
Husqvarna Vitpilen 401 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2022
KTM Adventure 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2020-2022
KTM Duke 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2022
KTM Duke 200 ABS 26 CV, 19,1 kw 1cil. - Bastidores: --- 2015-2017
KTM Duke 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2013-2020
KTM Duke 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021-2022
KTM RC 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 125 ABS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
KTM RC 125 ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2022
KTM RC 200 ABS 26 CV, 19 kw 1cil. - Bastidores: --- 2014-2017
KTM RC 390 ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 390 ABS Euro5 44 CV, 32 kw 1cil. - Bastidores: --- 2021
KTM RC 390 R ABS 44 CV, 32 kw 1cil. - Bastidores: --- 2018-2019
