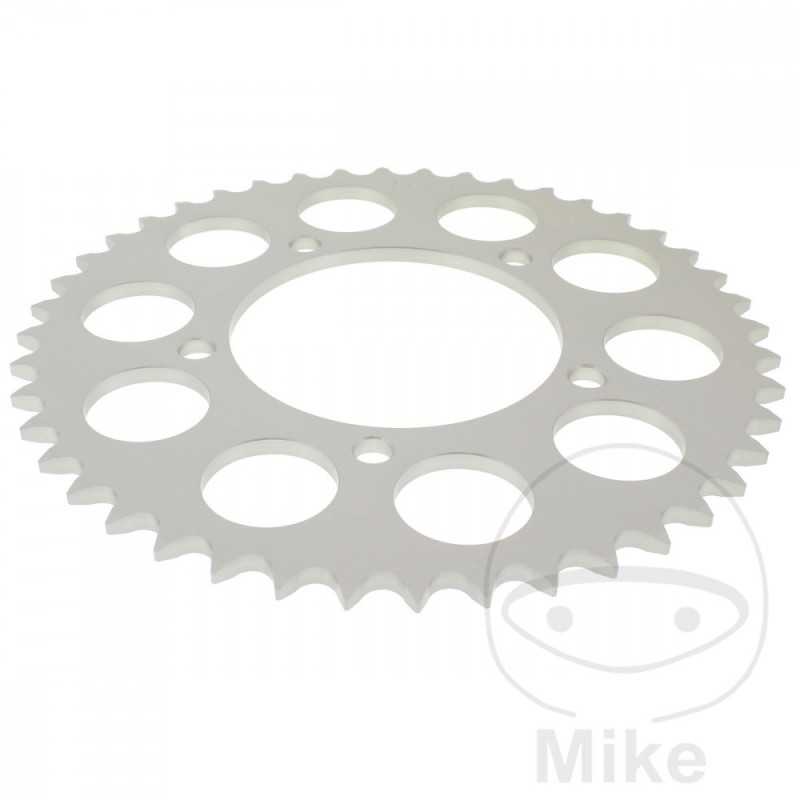

ESJOT Transmission plate crown 44T P-520 Ø100 MM Ø120 758.50.79

ESJOT aluminum sprockets are specifically designed for the harsh operating conditions in motocross, enduro and road area.

Compared to conventional steel sprockets, an ESJOT sprocket provides a weight saving of more than 60%.

The use of very high quality aluminum (7075 T6), which is also used in the aerospace industry,

and the extremely low manufacturing tolerances guarantee an extremely long service life.

All ESJOT color anodized aluminum sprockets are.

- About 60% lighter than a conventional steel sprocket.

- Manufactured on precision CNC machines

- Flat and concentricity of less than 0.1 mm

- Made of high quality and high strength 7075 T6 aluminum

- Special surface treatment

- 100% Made in Germany

- OEM quality
DIVISION: 520
INNER DIAMETER: 100MM
CIRCLE SIZE: 120 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 44
CROWN TYPE: ALU


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. MPA00 Bastidores: --- 1996-1998
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000 Bastidores: --- 2008
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RD000/RDA00 Bastidores: --- 2009
Aprilia RS 125 Extrema/Replica 15 CV, 11 kw 1cil. RDA00 Bastidores: --- 2010-2012
Aprilia RS 125 Extrema/Replica 24,5 CV, 18 kw 1cil. RM000 Bastidores: --- 2008-2012
Aprilia RS 125 Extrema/Replica 29,2 CV, 21,5 kw 1cil. PYA00 Bastidores: --- 2006-2007
Aprilia RS 125 Extrema/Replica 31 CV, 23 kw 1cil. MPA00 Bastidores: --- 1997-1998
Aprilia RS 125 Extrema/Replica 33/27 CV, 24/20 kw 1cil. MP000 Bastidores: --- 1995
Aprilia RS 125 Extrema/Replica 6,8 CV, 5 kw 1cil. RM000 Bastidores: --- 2009-2012
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000WS000037-ZD4ME0000WS000766 1998-1999
Aprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000XS000767-- 2000
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP000 Bastidores: ZD4RP00001S000001-- 2001-2002
Aprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000WS000001-ZD4MEA000XS000843 1998-1999
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000XS000845-- 2000
Aprilia RSV 1000 Mille 98 CV, 72 kw 2cil. RP001 Bastidores: ZD4RP00101S000001-- 2001-2002
Aprilia RSV 1000 R 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RR000 Bastidores: --- 2007-2010
Aprilia RSV 1000 R 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006
Aprilia RSV 1000 R Factory 139 CV, 102 kw 2cil. RR000 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Factory 143 CV, 105 kw 2cil. RRK00 Bastidores: --- 2006-2010
Aprilia RSV 1000 R Mille 118 CV, 87 kw 2cil. ME001 Bastidores: ZD4ME0010XS000001-- 2000
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
Aprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RPA00 Bastidores: ZD4RPA000YS000006-- 2001-2002
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. MEA01 Bastidores: --- 2000
Aprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. RPA01 Bastidores: ZD4RPA0101S000001-- 2001-2002
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB00 Bastidores: --- 2003
Aprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV 1000 R Tuono Factory 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
Aprilia RSV4 1000 Factory 180 CV, 132 kw 4cil. RK000 Bastidores: --- 2009-2011
Aprilia RSV4 1000 Factory ABS APRC 184 CV, 135 kw 4cil. RKG Bastidores: --- 2013-2015
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB00 Bastidores: --- 2011
Aprilia RSV4 1000 Factory APRC 180 CV, 132 kw 4cil. RKB01 Bastidores: --- 2012-2013
Aprilia RSV4 1000 R 180 CV, 132 kw 4cil. RKA00/RKC01 Bastidores: --- 2010-2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKH/RKU04 Bastidores: --- 2013
Aprilia RSV4 1000 R ABS APRC 184 CV, 135 kw 4cil. RKUA4 Bastidores: --- 2014-2015
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE00 Bastidores: --- 2011
Aprilia RSV4 1000 R APRC 180 CV, 132 kw 4cil. RKE01 Bastidores: --- 2012-2013
Aprilia RSV4 1000 RF Racing Factory LE ABS 201 CV, 148 kw 4cil. KE000 Bastidores: --- 2017
Aprilia RSV4 1000 RF Racing Factory LE ABS 201 CV, 148 kw 4cil. RKL00/RKL01 Bastidores: --- 2015-2016
Aprilia RSV4 1000 RR ABS 201 CV, 148 kw 4cil. - Bastidores: --- 2015
Aprilia RSV4 1000 RR ABS 201 CV, 148 kw 4cil. KE000 Bastidores: --- 2017-2018
Aprilia RSV4 1000 RR ABS 201 CV, 148 kw 4cil. RKL00/RKL01 Bastidores: --- 2016
Aprilia SL 1000 Falco 118 CV, 87 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia SL 1000 Falco 95 CV, 70 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 R 133 CV, 98 kw 2cil. RRL00 Bastidores: ZD4RRL0056S000001-- 2006
Aprilia Tuono 1000 R Factory 139 CV, 102 kw 2cil. RR100 Bastidores: --- 2007-2011
Aprilia Tuono 1000 V4 R 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
Aprilia Tuono 1000 V4 R ABS APRC 170 CV, 125 kw 4cil. TYB02/TYB03 Bastidores: --- 2013-2014
Aprilia Tuono 1000 V4 R APRC 167 CV, 123 kw 4cil. TY000 Bastidores: --- 2011-2013
BMW G 650 Xmoto 34 CV, 25 kw 1cil. E65X/K15 0167 Bastidores: --- 2007-2010
BMW G 650 Xmoto 53 CV, 39 kw 1cil. E65X/K15 0167 Bastidores: --- 2007-2010
BMW G 650 Xmoto ABS 34 CV, 25 kw 1cil. E65X/K15 0167 Bastidores: --- 2007-2010
BMW G 650 Xmoto ABS 53 CV, 39 kw 1cil. E65X/K15 0167 Bastidores: --- 2007-2010
