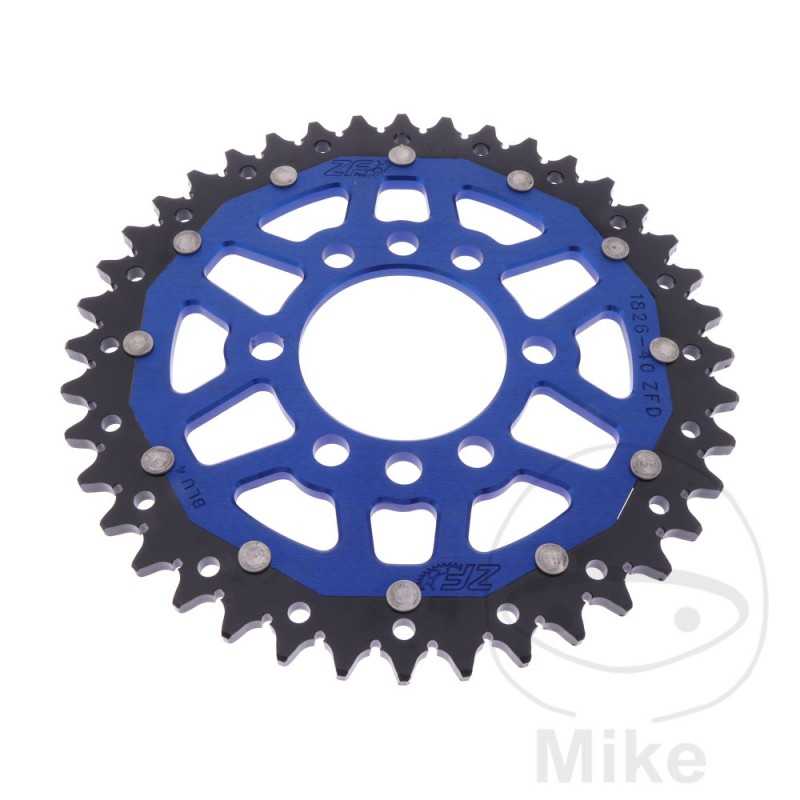

ZF SPROCKETS Transmission plate crown 40T P-520 Ø136 MM Ø156 758.18.72

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by enormous resistance and impermeability, as well as low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When hardened, duralumin becomes almost as strong as steel.

Therefore, a lower weight and greater durability have been implemented.

The cutters at the base of the pinion teeth guarantee optimal self-cleaning.

These millings ensure that dirt does not settle between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Ideal for road and off-road.
DIVISION: 520
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 84 MM
HOLE: 10.5MM
HOLES QUANTITY: 8
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 32 1 Bastidores: AK47B 32-100001-AK47B 32-999999 2003
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L2 Bastidores: AK4AA-C2100001-- 2012-2017
