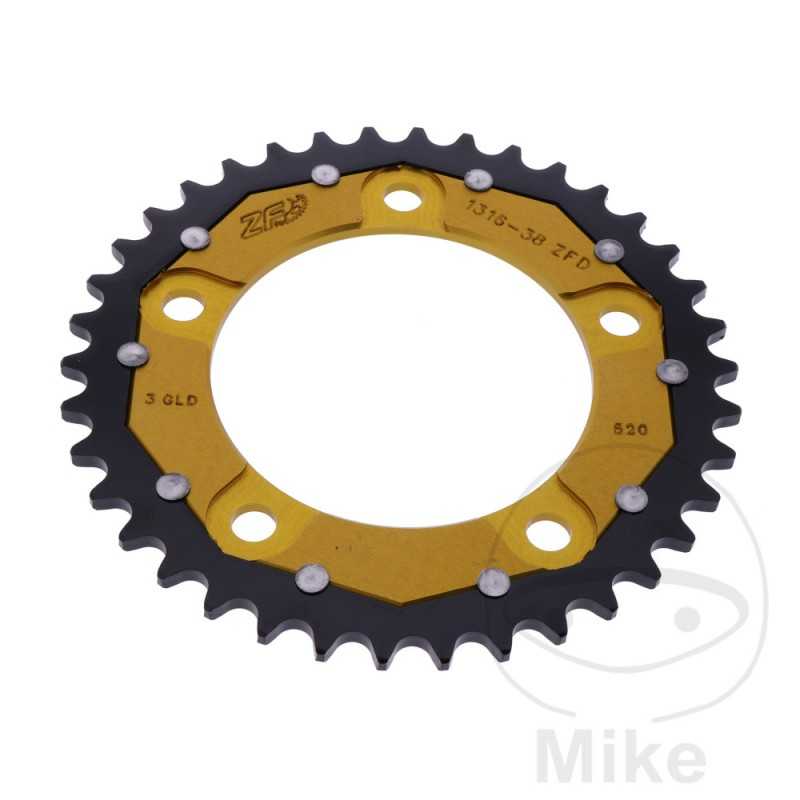

ZF SPROCKETS Transmission plate crown 38T P-520 Ø112 MM Ø138 758.18.67

ZF-Dual sprockets are among the highest quality and most technologically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and tightness, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

Through hardening, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and greater durability have been implemented.

Milling at the base of the sprocket tooth ensures optimal self-cleaning.

These cutters ensure that dirt cannot settle between the teeth and therefore the chain and sprocket do not wear out as quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and they are 50% lighter than steel sprockets.

Best suited for road and off-road.
DIVISION: 520
INSIDE DIAMETER: 112MM
CIRCLE SIZE: 138 MM
HOLE: 12.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A D Bastidores: MLH PC45A-D5000001-MLH PC45A-D5999999 2013
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A E Bastidores: MLH PC45A-E5100001-MLH PC45A-E5199999 2014
Honda CB 500 F 48 CV, 35 kw 2cil. PC45A F Bastidores: MLH PC45A-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B D Bastidores: MLH PC45B-D5000001-MLH PC45B-D5999999 2013
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B E Bastidores: MLH PC45B-E5100001-MLH PC45B-E5199999 2014
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B F Bastidores: MLH PC45B-F5200001-- 2015
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC45B G Bastidores: MLH PC45B-G5300001-MLH PC45B-G5399999 2016
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC58A H Bastidores: MLH PC58A-H5000001-MLH PC58A-H5099999 2017
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC58A J Bastidores: MLH PC58A-J5100001-- 2018
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC63A K Bastidores: MLH PC63A-K5000001-MLH PC63A-K5099999 2019-2020
Honda CB 500 FA ABS 48 CV, 35 kw 2cil. PC63A M Bastidores: MLH PC63A-M5100001-MLH PC63A-M5199999 2021
Honda CB 500 X 48 CV, 35 kw 2cil. PC46A F Bastidores: MLH PC46A-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B D Bastidores: MLH PC46B-D5000001-MLH PC46B-D5099999 2013
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B E Bastidores: MLH PC46B-E5100001-MLH PC46B-E5199999 2014
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B F Bastidores: MLH PC46B-F5200001-- 2015
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC46B G Bastidores: MLH PC46B-G5300001-MLH PC46B-G5399999 2016
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC59A H Bastidores: MLH PC59A-H5000001-- 2017
Honda CB 500 XA ABS 48 CV, 35 kw 2cil. PC59A J Bastidores: MLH PC59A-J5100001-- 2018
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B D Bastidores: MLH PC44B-D5000001-MLH PC44B-D5999999 2013
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B E Bastidores: MLH PC44B-E5100001-- 2014
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B F Bastidores: MLH PC44B-F5200001-- 2015
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC44B G Bastidores: MLH PC44B-G5300001-MLH PC44B-G5399999 2016
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC57A H Bastidores: MLH PC57A-H5000001-MLH PC57A-H5099999 2017
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC57A J Bastidores: MLH PC57A-J5100001-- 2018
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC62A K Bastidores: MLH PC62A-KK5000001-MLH PC62A-K5099999 2019-2020
Honda CBR 500 RA ABS 48 CV, 35 kw 2cil. PC62A M Bastidores: MLH PC62A-M5100001-- 2021
Honda CTX 700 D DCT ABS DCT semicarenado 48 CV, 35 kw 2cil. RC69C E Bastidores: JH2 RC69C-EK000001-- 2014-2017
Honda CTX 700 ND DCT ABS carenado manillar 48 CV, 35 kw 2cil. RC68C E Bastidores: JH2 RC68C-EK000001-- 2014-2016
Honda NC 700 D Integra DCT ABS 48 CV, 35 kw 2cil. RC62B C Bastidores: JH2 RC62B-CK000001-JH2 RC62B-CK099999 2012
Honda NC 700 D Integra DCT ABS 52 CV, 38 kw 2cil. RC62A C Bastidores: JH2 RC62A-CK000001-JH2 RC62A-CK099999 2012
Honda NC 700 D Integra DCT ABS 52 CV, 38 kw 2cil. RC62A D Bastidores: JH2 RC62A-DK100001-- 2013
Honda NC 700 S 48 CV, 35 kw 2cil. RC61B C Bastidores: JH2 RC61B-CK000001-JH2 RC61B-CK099999 2012
Honda NC 700 S 48 CV, 35 kw 2cil. RC61B D Bastidores: JH2 RC61B-DK100001-- 2013-2014
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C C Bastidores: JH2 RC61C-CK000001-JH2 RC61C-CK099999 2012
Honda NC 700 SA ABS 48 CV, 35 kw 2cil. RC61C D Bastidores: JH2 RC61C-DK100001-- 2013-2014
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A C Bastidores: JH2 RC61A-CK000001-JH2 RC61A-CK099999 2012
Honda NC 700 SA ABS 52 CV, 38 kw 2cil. RC61A D Bastidores: JH2 RC61A-DK100001-- 2013-2014
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D C Bastidores: JH2 RC61D-CK000001-JH2 RC61D-CK099999 2012
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D D Bastidores: JH2 RC61D-DK100001-- 2013
Honda NC 700 SD DCT ABS 48 CV, 35 kw 2cil. RC61D E Bastidores: JH2 RC61D-EK200001-- 2014
Honda NC 700 X 48 CV, 35 kw 2cil. RC63C C Bastidores: JH2 RC63C-CK000001-JH2 RC63C-CK009999 2012
Honda NC 700 X 48 CV, 35 kw 2cil. RC63C D Bastidores: JH2 RC63C-DK100001-- 2013-2014
Honda NC 700 X 52 CV, 38 kw 2cil. RC63A C Bastidores: JH2 RC63A-CK500001-JH2 RC63A-CK509999 2012
Honda NC 700 X 52 CV, 38 kw 2cil. RC63A D Bastidores: JH2 RC63A-DK600001-- 2013-2014
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E C Bastidores: JH2 RC63E-CK000001-JH2 RC63E-CK009999 2012
Honda NC 700 XA ABS 48 CV, 35 kw 2cil. RC63E D Bastidores: JH2 RC63E-DK100001-- 2013-2014
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B C Bastidores: JH2 RC63B-CK500001-JH2 RC63B-CK509999 2012
Honda NC 700 XA ABS 52 CV, 38 kw 2cil. RC63B D Bastidores: JH2 RC63B-DK600001-- 2013-2014
Honda NC 700 XD DCT ABS 48 CV, 35 kw 2cil. RC63F D Bastidores: JH2 RC63F-DK000001-- 2013-2014
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D C Bastidores: JH2 RC63D-CK000001-JH2 RC63D-CK009999 2012
Honda NC 700 XD DCT ABS 52 CV, 38 kw 2cil. RC63D D Bastidores: JH2 RC63D-DK100001-- 2013-2014
Honda NC 750 D Integra DCT ABS 48 CV, 35 kw 2cil. RC89B J Bastidores: JH2 RC89B-JK000001-JH2 RC89B-JK299999 2018
Honda NC 750 D Integra DCT ABS 48 CV, 35 kw 2cil. RC89B K Bastidores: JH2 RC89B-KK100001-- 2019-2021
Honda NC 750 D Integra DCT ABS 55 CV, 40 kw 2cil. RC89A J Bastidores: JH2 RC89A-JK200001-JH2 RC89A-JK299999 2018
Honda NC 750 D Integra DCT ABS 55 CV, 40 kw 2cil. RC89A K Bastidores: JH2 RC89A-KK300001-- 2019-2021
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC71A E Bastidores: JH2 RC71A-EK000001-- 2014-2015
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC89A G Bastidores: JH2 RC89A-GK000001-JH2 RC89A-GK099999 2016
Honda NC 750 D Integra DCT ABS 55/48 CV, 40/35 kw 2cil. RC89A H Bastidores: JH2 RC89A-HK100001-JH2 RC89A-HK199999 2017
Honda NC 750 J NM4 Vultus DCT ABS 55 CV, 40,3 kw 2cil. RC82A F Bastidores: JH2 RC82A-FK000001-JH2 RC82A-FK099999 2014-2016
Honda NC 750 J NM4 Vultus DCT ABS 55 CV, 40,3 kw 2cil. RC92A H Bastidores: JH2 RC92A-HK000001-- 2017
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C J Bastidores: JH2 RC88C-JK000001-- 2018
Honda NC 750 SA ABS 48 CV, 35 kw 2cil. RC88C K Bastidores: JH2 RC88C-KK100001-- 2019-2021
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B E Bastidores: JH2 RC70B-EK000001-- 2014
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC70B F Bastidores: JH2 RC70B-FK100001-- 2015
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A G Bastidores: JH2 RC88A-GK000001-JH2 RC88A-GK099999 2016
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A H Bastidores: JH2 RC88A-HK100001-- 2017
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A J Bastidores: JH2 RC88A-JK200001-- 2018
Honda NC 750 SA ABS 55 CV, 40,3 kw 2cil. RC88A K Bastidores: JH2 RC88A-KK300001-- 2019-2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88B K Bastidores: JH2 RC88D-KK100001-- 2021
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D J Bastidores: JH2 RC88D-JK000001-- 2018
Honda NC 750 SD DCT ABS 48 CV, 35 kw 2cil. RC88D K Bastidores: JH2 RC88D-KK100001-- 2019-2020
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70C E Bastidores: JH2 RC70C-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC70D E Bastidores: JH2 RC70D-EK000001-- 2014-2015
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B G Bastidores: JH2 RC88B-GK000001-JH2 RC88B-GK099999 2016
Honda NC 750 SD DCT ABS 55 CV, 40,3 kw 2cil. RC88B H Bastidores: JH2 RC88B-HK100001-- 2017
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B J Bastidores: JH2 RC88B-JK200001-- 2018
Honda NC 750 SD DCT ABS 55 CV, 40,5 kw 2cil. RC88B K Bastidores: JH2 RC88B-KK300001-- 2019-2021
Honda NC 750 XA ABS 48 CV 35 kw 2cil. RH09C M Bastidores: JH2 RH09C-MK000001-- 2021-2022
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C J Bastidores: JH2 RC90C-JK000001-- 2018
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C K Bastidores: JH2 RC90C-KK100001-JH2 RC90C-KK199999 2019
Honda NC 750 XA ABS 48 CV, 35 kw 2cil. RC90C L Bastidores: JH2 RC90C-LK200001-- 2020
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC72B E Bastidores: JH2 RC72B-EK000001-- 2014-2015
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A G Bastidores: JH2 RC90A-GK000001-JH2 RC90A-GK099999 2016
Honda NC 750 XA ABS 55 CV, 40,3 kw 2cil. RC90A H Bastidores: JH2 RC90A-HK100001-JH2 RC90A-HK199999 2017
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A J Bastidores: JH2 RC90A-JK200001-- 2018
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A K Bastidores: JH2 RC90A-KK300001-JH2 RC90A-KK399999 2019
Honda NC 750 XA ABS 55 CV, 40,5 kw 2cil. RC90A L Bastidores: JH2 RC90A-LK400001-- 2020
Honda NC 750 XA ABS 59 CV 43 kw 2cil. RH09A M Bastidores: JH2 RH09A-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV 35 kw 2cil. RH09D M Bastidores: JH2 RH09D-MK000001-- 2021-2022
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D J Bastidores: JH2 RC90D-JK000001-- 2018
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D K Bastidores: JH2 RC90D-KK100001-JH2 RC90D-KK199999 2019
Honda NC 750 XD DCT ABS 48 CV, 35 kw 2cil. RC90D L Bastidores: JH2 RC90D-LK200001-- 2020
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72C E Bastidores: JH2 RC72C-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC72D E Bastidores: JH2 RC72D-EK000001-- 2014-2015
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B G Bastidores: JH2 RC90B-GK000001-JH2 RC90B-GK099999 2016
Honda NC 750 XD DCT ABS 55 CV, 40,3 kw 2cil. RC90B H Bastidores: JH2 RC90B-HK100001-JH2 RC90B-HK199999 2017
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B J Bastidores: JH2 RC90B-JK200001-- 2018
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B K Bastidores: JH2 RC90B-KK300001-JH2 RC90B-KK399999 2019
Honda NC 750 XD DCT ABS 55 CV, 40,5 kw 2cil. RC90B L Bastidores: JH2 RC90B-LK400001-- 2020
Honda NC 750 XD DCT ABS 59 CV 43 kw 2cil. RH09B M Bastidores: JH2 RH09B-MK000001-- 2021-2022
Honda NSS 750 Forza DCT ABS 48 CV, 35 kw 2cil. RH11B M Bastidores: JH2 RH11B-MK000001-- 2021-2022
Honda NSS 750 Forza DCT ABS 59 CV, 43 kw 2cil. RH11A M Bastidores: JH2 RH11A-MK000001-- 2021-2022
Honda X-ADV 750 DCT ABS 48 CV, 35 kw 2cil. RC95B J Bastidores: JH2 RC95B-JK000001-JH2 RC95B-JK199999 2018
Honda X-ADV 750 DCT ABS 48 CV, 35 kw 2cil. RC95B K Bastidores: JH2 RC95B-KK100001-- 2019-2020
Honda X-ADV 750 DCT ABS 48 CV, 35 kw 2cil. RH10B M Bastidores: JH2 RH10B-MK000001-JH2 RH10B-MK099999 2021
Honda X-ADV 750 DCT ABS 48 CV, 35 kw 2cil. RH10B N Bastidores: JH2 RH10B-NK100001-JH2 RH10B-NK199999 2022
Honda X-ADV 750 DCT ABS 55 CV, 40,5 kw 2cil. RC95A H Bastidores: JH2 RC95A-HK000001-JH2 RC95A-HK099999 2017
Honda X-ADV 750 DCT ABS 55 CV, 40,5 kw 2cil. RC95A J Bastidores: JH2 RC95A-JK100001-JH2 RC95A-JK199999 2018
Honda X-ADV 750 DCT ABS 55 CV, 40,5 kw 2cil. RC95A K Bastidores: JH2 RC95A-KK200001-- 2019-2020
Honda X-ADV 750 DCT ABS 59 CV, 43 kw 2cil. RH10A M Bastidores: JH2 RH10A-MK000001-JH2 RH10A-MK099999 2021
Honda X-ADV 750 DCT ABS 59 CV, 43 kw 2cil. RH10A N Bastidores: JH2 RH10A-NK100001-JH2 RH10A-NK199999 2022
