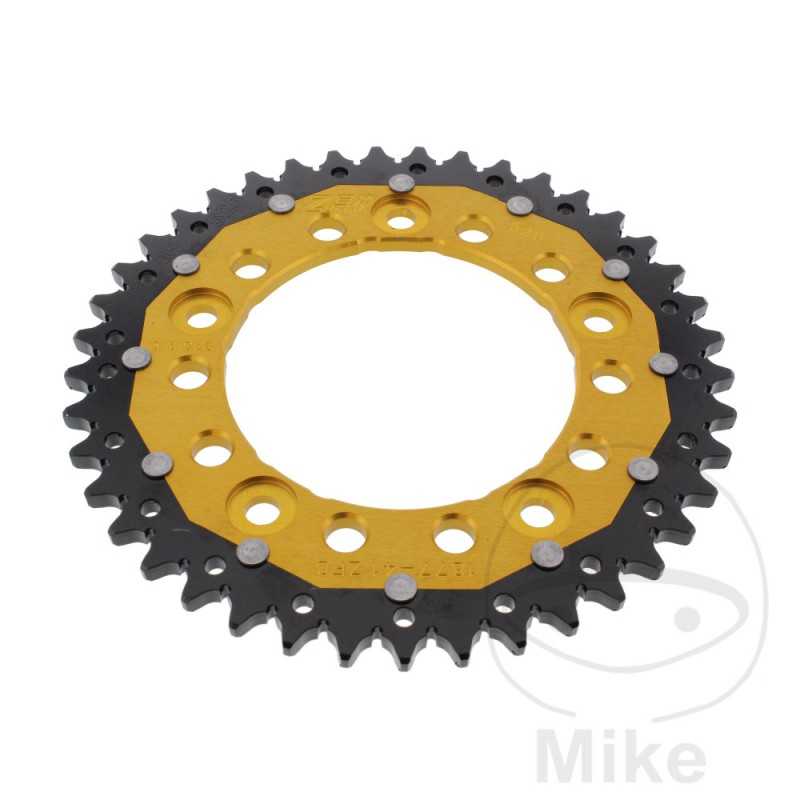

ZF SPROCKETS Transmission plate crown 41T P-525 Ø112 MM Ø138 758.16.92

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 525
INSIDE DIAMETER: 112MM
CIRCLE SIZE: 138 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R1 1000 200 CV, 147 kw 4cil. RN321 2CR1 Bastidores: RN321 henceforth00301-- 2015
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN321 2CRC Bastidores: RN321 henceforth03306-- 2016
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN491 BX41 Bastidores: RN491 henceforth00301-- 2017
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX46 Bastidores: RN497 henceforth00301-- 2018
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX4D Bastidores: RN497 henceforth02249-- 2019
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3L1 Bastidores: RN651 henceforth00301-- 2020-2021
Yamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3LG Bastidores: RN651 henceforth04712-- 2022
Yamaha YZF-R1 1000 Anniversary ABS 200 CV, 147 kw 4cil. RN321 2CRJ Bastidores: RN321 henceforth03246-- 2016
Yamaha YZF-R1 1000 M 200 CV, 147 kw 4cil. RN326 2KS1 Bastidores: RN326 henceforth00301-- 2015
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN326 2KSC Bastidores: RN326 henceforth01168-- 2016
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN494 2KSF Bastidores: RN494 henceforth00301-- 2017
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN499 2KSM Bastidores: RN499 henceforth00301-- 2018-2019
Yamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2020
Yamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2021
Yamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4SD Bastidores: RN655 henceforth01145-- 2022-2023
Yamaha YZF-R1 1000 World GP 60th Anniversary ABS 200 CV, 147 kw 4cil. RN651 B3LS Bastidores: RN651 henceforth04734-- 2022-2023
