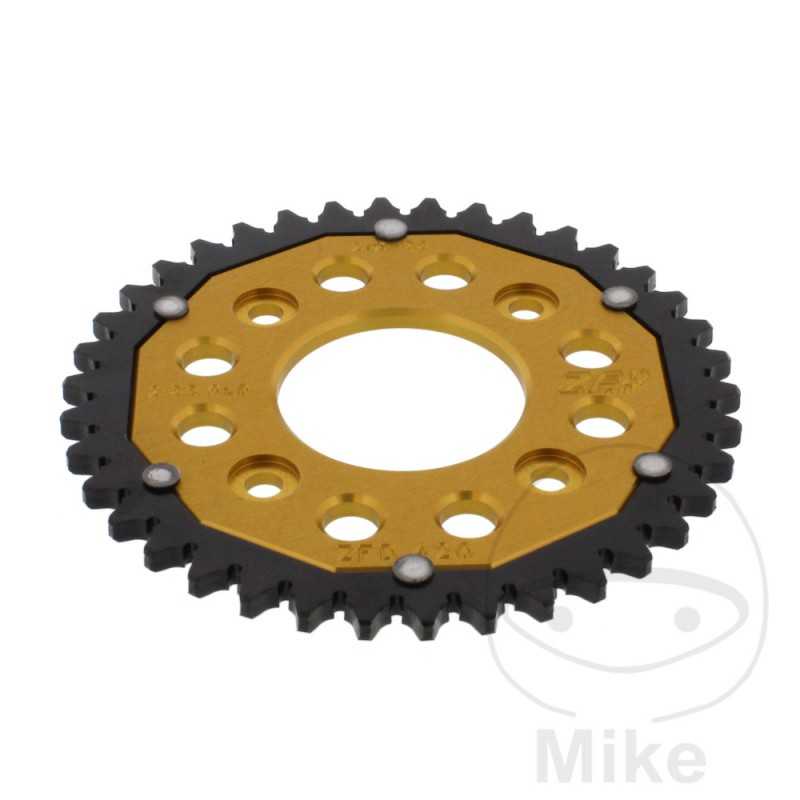

ZF SPROCKETS Transmission plate crown 38T P-420 Ø058 MM Ø090 758.14.94

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot get between the teeth and thus wear down the chain and the sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Ideal for road and offroad use.
DIVISION: 420
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 90 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda AFS 110 2SH i Wave 8,7 CV, 6,4 kw 1cil. JC51A C Bastidores: LTM JC51A henceforthC5000001-- 2012-2014
Honda AFS 110 CSF i Wave 8,7 CV, 6,4 kw 1cil. JC51B F Bastidores: LTM JC51B-F5100001-- 2015-2016
Honda ANF 125 Innova 1cil. JC33A 3 Bastidores: MLH JC33A-25000001-MLH JC33A-49999999 2003-2004
Honda ANF 125 Innova 1cil. JC33A 5 Bastidores: MLH JC33A-55100001-MLH JC33A-55199999 2005
Honda ANF 125 Innova 1cil. JC33A 6 Bastidores: MLH JC33A-65200001-MLH JC33A-65999999 2006
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A 7 Bastidores: MLH JC37A-75000001-- 2007-2009
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A A Bastidores: MLH JC37A-A5100001-- 2010-2012
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A D Bastidores: MLH JC61A-D5000001-MLH JC61A-D5099999 2013
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A E Bastidores: MLH JC61A-E5100001-MLH JC61A-E5199999 2014
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A F Bastidores: MLH JC61A-F5200001-- 2015
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A G Bastidores: MLH JC61A-G5300001-MLH JC61A-G5399999 2016
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A H Bastidores: MLH JC75A-H5000001-MLH JC75A-H5099999 2017
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A J Bastidores: MLH JC75A-J5100001-- 2018-2020
Honda Z 125 MA Monkey ABS 9,4 CV, 6,9 kw 1cil. JB02A K Bastidores: MLH JB02A-K5000001-- 2018-2021
