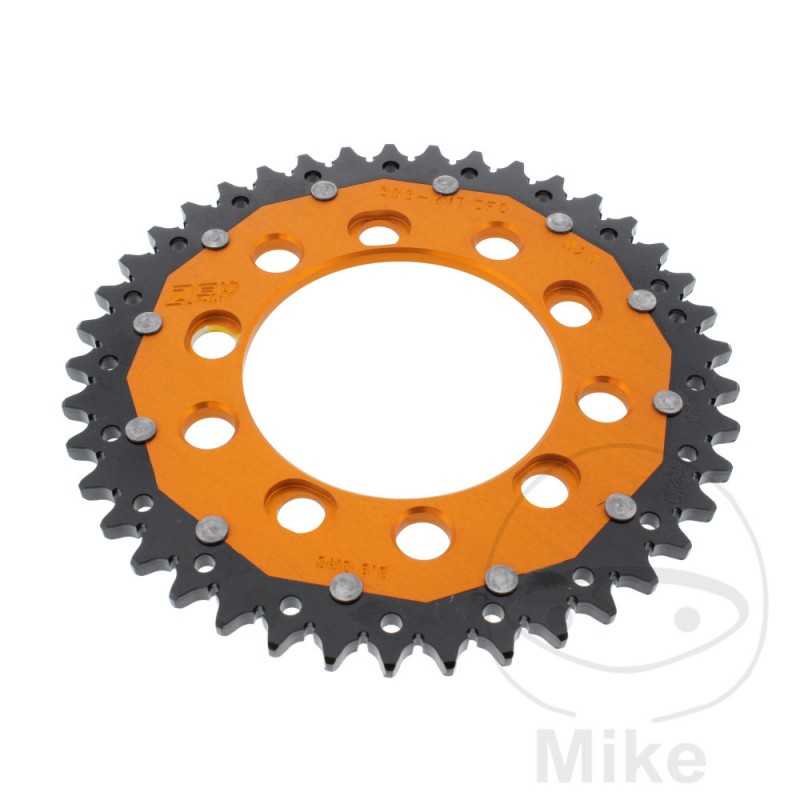

ZF SPROCKETS Transmission plate crown 41T P-525 Ø101 MM Ø124 758.09.94

ZF double sprockets are among the highest quality and most technically advanced sprockets in the world.

The secret lies in the combination of the durability of steel and the lightness of duralumin.

This aluminum alloy is characterized by its enormous resistance and hermeticity, as well as its low weight.

The tensile strength is approximately 11 times that of pure aluminum.

When cured, duralumin nearly reaches the strength of steel.

Consequently, a lower weight and higher resistance have been implemented.

The milling of the tooth base of the toothed wheel ensures optimal self-cleaning.

These cuts ensure that dirt cannot stick between the teeth and thus wear down the chain and sprocket not so quickly.

The durability of ZF-Dual sprockets is approximately three times longer than pure aluminum sprockets and 50% lighter than steel sprockets.

Best suitable for road and offroad.
DIVISION: 525
INSIDE DIAMETER: 101MM
CIRCLE SIZE: 124 MM
HOLE: 14.2MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: DUAL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM RC8 1190 154 CV, 113 kw 2cil. - Bastidores: --- 2008-2011
KTM RC8 1190 R 164 CV, 121 kw 2cil. - Bastidores: --- 2009-2010
KTM RC8 1190 R 175 CV, 129 kw 2cil. - Bastidores: --- 2011-2015
KTM RC8 1190 R Red Bull 164 CV, 121 kw 2cil. - Bastidores: --- 2010
KTM RC8 1190 R Track 180 CV, 132 kw 2cil. - Bastidores: --- 2011-2013
KTM Super Duke 990 LC8 120 CV, 88 kw 2cil. - Bastidores: --- 2005-2011
KTM Super Duke 990 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2005-2006
KTM Super Duke 990 R LC8 120 CV, 88 kw 2cil. - Bastidores: --- 2007
KTM Super Duke 990 R LC8 125 CV, 92 kw 2cil. - Bastidores: --- 2012-2013
KTM Super Duke 990 R LC8 132 CV, 97 kw 2cil. - Bastidores: --- 2008-2011
KTM Supermoto 950 LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2006-2008
KTM Supermoto 950 R LC8 34 CV, 25 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 950 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2007-2008
KTM Supermoto 990 LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2010
KTM Supermoto 990 R LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 R LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 R LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2012-2013
KTM Supermoto 990 T LC8 115 CV, 85 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 98 CV, 72 kw 2cil. - Bastidores: --- 2009-2011
KTM Supermoto 990 T LC8 ABS 115 CV, 85 kw 2cil. - Bastidores: --- 2011-2013
KTM Supermoto 990 T LC8 ABS 98 CV, 72 kw 2cil. - Bastidores: --- 2011-2013
