JT SPROCKETS Transmission plate crown 56T P-428 Ø125 MM Ø145MM 727.91.77

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

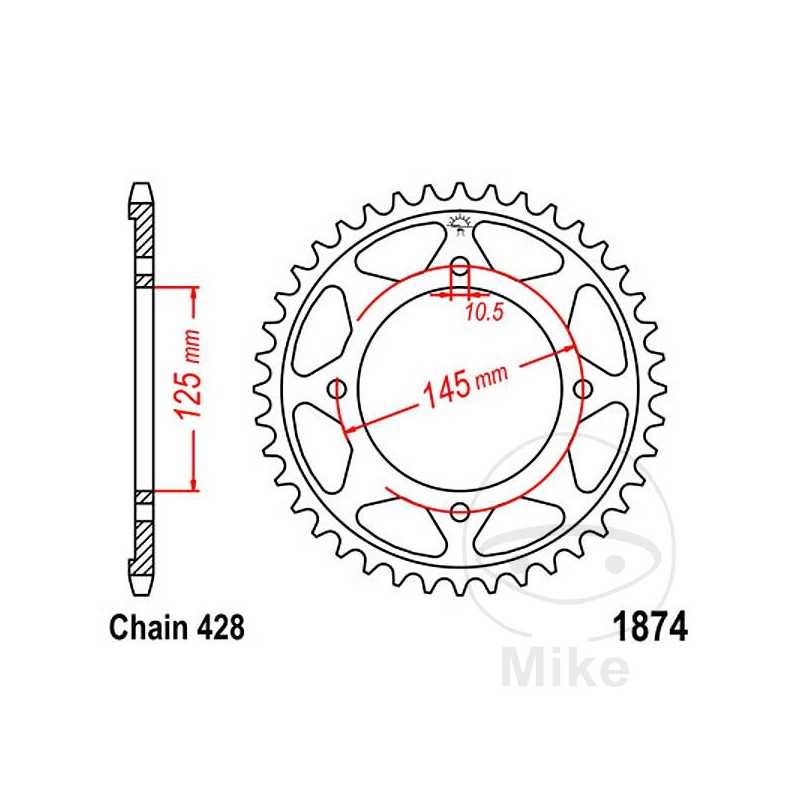

DIVISION: 428
INSIDE DIAMETER: 125MM
CIRCLE SIZE: 145 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 56
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XVS 125 H DRAG STAR 13 CV, 9,6 KW 2CIL. VE011 5JX1 BASTIDORES: VE011 henceforth00301-- 2000
YAMAHA XVS 125 H DRAG STAR 13 CV, 9,6 KW 2CIL. VE011 5JX3 BASTIDORES: VE011 henceforth10101-- 2001
YAMAHA XVS 125 H DRAG STAR 13 CV, 9,6 KW 2CIL. VE011 5JX5 BASTIDORES: VE011 henceforth10931-- 2002-2003
YAMAHA XVS 125 H DRAG STAR 13 CV, 9,6 KW 2CIL. VE011 5JX7 BASTIDORES: VE011 henceforth13271-- 2004
YAMAHA XVS 125 N DRAG STAR 80 KM/H 13 CV, 9,6 KW 2CIL. VE012 5JX2 BASTIDORES: VE012 henceforth00301-- 2000
YAMAHA XVS 125 N DRAG STAR 80 KM/H 13 CV, 9,6 KW 2CIL. VE012 5JX4 BASTIDORES: VE012--- 2001
YAMAHA XVS 125 N DRAG STAR 80 KM/H 13 CV, 9,6 KW 2CIL. VE012 5JX6 BASTIDORES: VE012--- 2002-2003
YAMAHA XVS 250 DRAG STAR 21 CV, 15,5 KW 2CIL. VG031 5KR2 BASTIDORES: VG031 henceforth00301-- 2001
YAMAHA XVS 250 DRAG STAR 21 CV, 15,5 KW 2CIL. VG031 5KR5 BASTIDORES: VG031 henceforth02288-- 2002-2003
YAMAHA XVS 250 DRAG STAR 21 CV, 15,5 KW 2CIL. VG031 5KR9 BASTIDORES: VG031 henceforth03097-- 2004
