JT SPROCKETS Transmission plate crown 46T P-520 Ø130 MM Ø152 727.86.17

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

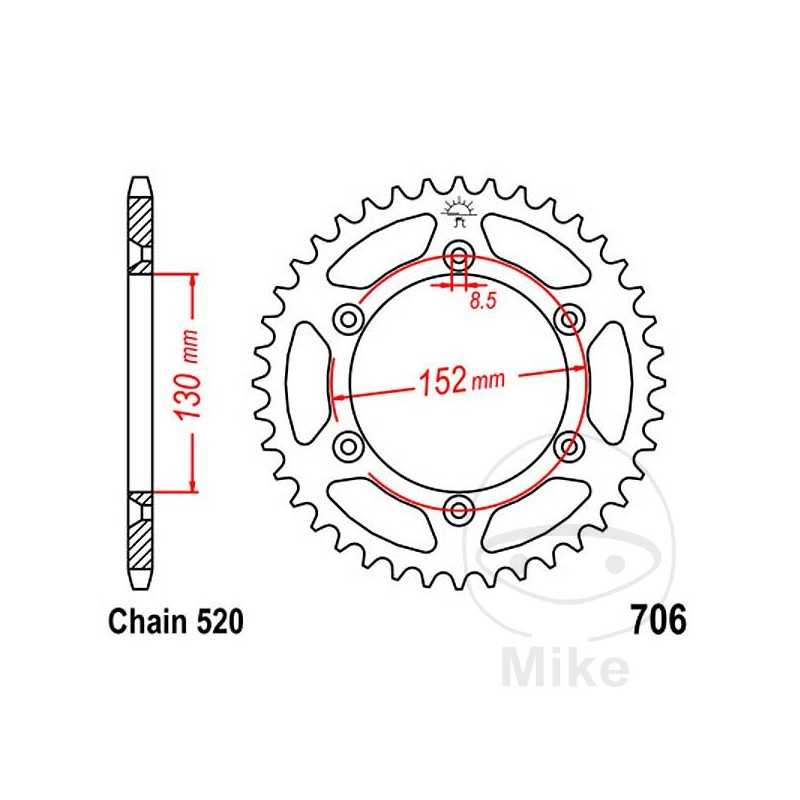

DIVISION: 520
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 152 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 46
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RXV 450 17 CV, 12,5 kw 2cil. VPH00 Bastidores: --- 2006-2007
Aprilia RXV 450 17 CV, 12,5 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 450 52/34 CV, 38/25 kw 2cil. VPH00 Bastidores: --- 2006-2007
Aprilia RXV 450 52/34 CV, 38/25 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 550 20 CV, 15 kw 2cil. VPL00 Bastidores: --- 2006-2007
Aprilia RXV 550 20 CV, 15 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 550 58/34 CV, 43/25 kw 2cil. VPL00 Bastidores: --- 2006-2007
Aprilia RXV 550 58/34 CV, 43/25 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia SXV 450 19 CV, 14 kw 2cil. VSH00 Bastidores: --- 2006-2007
Aprilia SXV 450 19 CV, 14 kw 2cil. VSR00 Bastidores: --- 2008-2010
Aprilia SXV 450 19 CV, 14 kw 2cil. VSU41 Bastidores: --- 2011-2013
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSH00 Bastidores: --- 2006-2007
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSR00 Bastidores: --- 2008-2010
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSU41 Bastidores: --- 2011-2013
Aprilia SXV 550 17 CV, 13 kw 2cil. VSS00/VSU51 Bastidores: --- 2011-2015
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSL00 Bastidores: --- 2006-2007
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00 Bastidores: --- 2009
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00/VSR00 Bastidores: --- 2008
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00/VSU51 Bastidores: --- 2010
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSL00 Bastidores: --- 2006-2007
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00 Bastidores: --- 2009
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00/VSR00 Bastidores: --- 2008
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00/VSU51 Bastidores: --- 2010-2015
