JT SPROCKETS Transmission plate crown 47T P-428 Ø110 MM Ø126 727.85.59

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

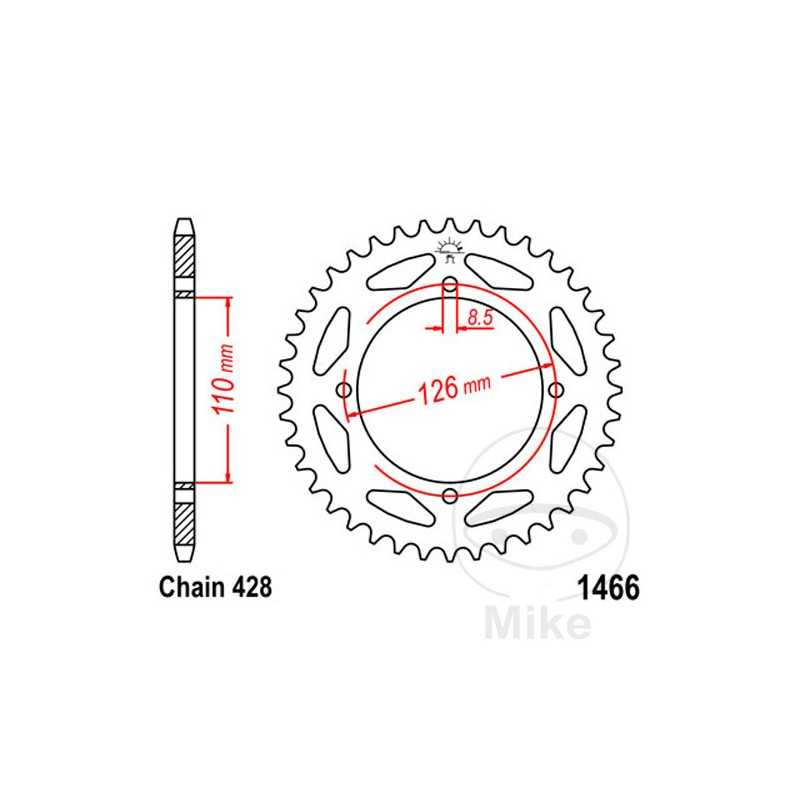

DIVISION: 428
INSIDE DIAMETER: 110MM
CIRCLE SIZE: 126 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA AF Bastidores: LX125CCDA henceforth0054-LX125CCDA henceforth3527 2010
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA BF Bastidores: LX125CCDA henceforth3528-LX125CCDA henceforth6795 2011
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA CF Bastidores: LX125CCDA henceforth6796-LX125CCDA henceforth7352 2012
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA CS Bastidores: LX125CCDA henceforth7353-LX125CCDA henceforth8289 2012
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA DF Bastidores: LX125CCDA henceforth8290-- 2013
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA DS Bastidores: LX125CCDA henceforth8730-LX125CCDA henceforth9124 2013
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA EF Bastidores: LX125CCDA henceforth9125-LX125CCDA-10540 2014
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA FF Bastidores: LX125CCDA-10541-LX125CCDA-11850 2015
Kawasaki KLX 125 C 10,3 CV, 7,6 kw 1cil. LX125CCDA GF Bastidores: LX125CCDA-11851-- 2016-2017
Kawasaki KLX 125 D D-Tracker 10,3 CV, 7,6 kw 1cil. LX125CDDA AF Bastidores: LX125CDDA henceforth0077-LX125CDDA henceforth3533 2010
Kawasaki KLX 125 D D-Tracker 10,3 CV, 7,6 kw 1cil. LX125CDDA BF Bastidores: LX125CDDA henceforth3534-LX125CDDA henceforth6927 2011
Kawasaki KLX 125 D D-Tracker 10,3 CV, 7,6 kw 1cil. LX125CDDA CF Bastidores: LX125CDDA henceforth6928-LX125CDDA henceforth8045 2012
Kawasaki KLX 125 D D-Tracker 10,3 CV, 7,6 kw 1cil. LX125CDDA DF Bastidores: LX125CDDA henceforth8046-LX125CDDA henceforth8617 2013
Kawasaki KX 65 A 1cil. KX065AAA BF Bastidores: KX065AAA henceforth72001-KX065AAA henceforth75000 2011
Kawasaki KX 65 A 1cil. KX065AAA CF Bastidores: KX065AAA henceforth75001-KX065AAA henceforth78000 2012
Kawasaki KX 65 A 1cil. KX065AAA DF Bastidores: KX065AAA henceforth78001-KX065AAA henceforth81000 2013
Kawasaki KX 65 A 1cil. KX065AAA EF Bastidores: KX065AAA henceforth81001-- 2014
Kawasaki KX 65 A 1cil. KX065AAA FF Bastidores: KX065AAA henceforth83001-KX065AAA henceforth85000 2015
Kawasaki KX 65 A 1cil. KX065AAA GF Bastidores: KX065AAA henceforth85001-KX065AAA henceforth88000 2016
Kawasaki KX 65 A 1cil. KX065AAA HF Bastidores: KX065AAA henceforth88001-KX065AAA henceforth92000 2017
Kawasaki KX 65 A 1cil. KX065AAA JF Bastidores: KX065AAA henceforth92001-KX065AAA henceforth95000 2018
Kawasaki KX 65 A 1cil. KX065AAA KF Bastidores: KX065AAA henceforth95001-KX065AAA henceforth97999 2019
Kawasaki KX 65 A 1cil. KX065AAA LF Bastidores: KX065AAA henceforth98001-- 2020
Kawasaki KX 65 A 15,9 CV, 11,7 kw 1cil. KX065AAA 1 Bastidores: KX065AAA henceforth00001-KX065AAA henceforth09000 2000
Kawasaki KX 65 A 15,9 CV, 11,7 kw 1cil. KX065AAA 2 Bastidores: KX065AAA henceforth09001-KX065AAA henceforth16000 2001
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 6F Bastidores: KX065AAA henceforth48001-KX065AAA henceforth54000 2006
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 7F Bastidores: KX065AAA henceforth54001-- 2007
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 8F Bastidores: KX065AAA henceforth59001-KX065AAA henceforth65000 2008
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA 9F Bastidores: KX065AAA henceforth65001-KX065AAA henceforth70000 2009
Kawasaki KX 65 A 16,7 CV, 12 kw 1cil. KX065AAA AF Bastidores: KX065AAA henceforth70001-KX065AAA henceforth72000 2010
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 3 Bastidores: KX065AAA henceforth16001-KX065AAA henceforth27000 2002
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 4 Bastidores: KX065AAA henceforth27001-KX065AAA henceforth36000 2003
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 5 Bastidores: KX065AAA henceforth36001-- 2004
Kawasaki KX 65 A 16,7 CV, 12,3 kw 1cil. KX065AAA 6 Bastidores: KX065AAA henceforth42001-KX065AAA henceforth48000 2005
Kawasaki KX 65 C 1cil. KX065CCA MFNN Bastidores: KX065CCA henceforth00001-KX065CCA henceforth03000 2021
Kawasaki KX 65 C 1cil. KX065CCA NFNN Bastidores: KX065CCA henceforth03001-KX065CCA henceforth06000 2022
Kawasaki KX 65 C 1cil. KX065CCA NSNN Bastidores: KX065CCA 003001-KX065CCA henceforth06000 2022
Kawasaki KX 65 C 1cil. KX065CCA NSNN Bastidores: KX065CCA 003001-KX065CCA-999999 2022
Kawasaki KX 65 C 1cil. KX065CCA PFNN Bastidores: KX065CCA henceforth06001-KX065CCA-999999 2023
