JT SPROCKETS Transmission plate crown 48T P-420 Ø102 MM Ø125 727.85.00

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

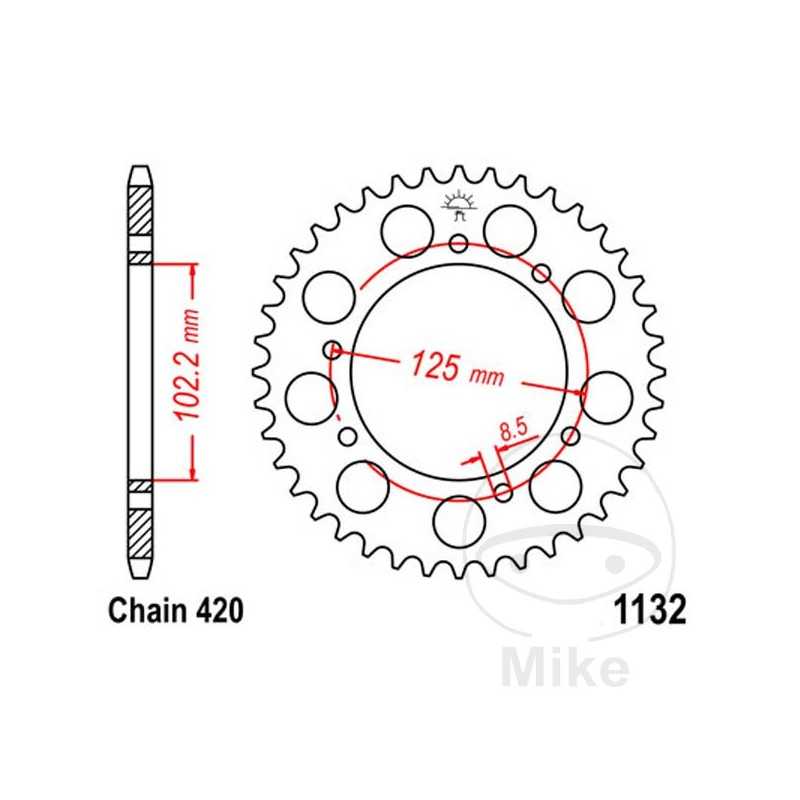

DIVISION: 420
INSIDE DIAMETER: 102MM
CIRCLE SIZE: 125 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 48
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RX 50 4,9 CV, 3,6 kw 1cil. - Bastidores: --- 2014-2018
Aprilia RX 50 4,9 CV, 3,6 kw 1cil. PVL01/PVH01 Bastidores: --- 2011-2013
Aprilia RX 50 Factory euro4 3 CV, 2,2 kw 1cil. KKA01 Bastidores: --- 2018-2019
Aprilia RX 50 Factory Euro4 3 CV, 2,2 kw 1cil. KKA01 Bastidores: --- 2020-2021
Derbi Dekker 50 R 3,2 CV, 2,3 kw 1cil. - Bastidores: --- 2003
Derbi Senda 50 R DRD 3,2 CV, 2,3 kw 1cil. SDR1GB Bastidores: --- 2003-2004
Derbi Senda 50 R DRD Pro 1cil. SA1A1A Bastidores: VTHSA1A1A6H338735-- 2009-2014
Derbi Senda 50 R DRD Pro 2,9 CV, 2,1 kw 1cil. SA1A1A Bastidores: VTHSA1A1A6H338735-- 2007-2008
Derbi Senda 50 R DRD Racing 1cil. - Bastidores: --- 2011-2013
Derbi Senda 50 R DRD Racing 2,9 CV, 2,1 kw 1cil. SR1D2B Bastidores: VTHSR1D2B7H358293-- 2007-2010
Derbi Senda 50 R DRD Racing 3,2 CV, 2,3 kw 1cil. SR1A2B Bastidores: --- 2004-2005
Derbi Senda 50 R DRD Racing 3,2 CV, 2,3 kw 1cil. SR1D2B Bastidores: VTHSR1D2B7H358293-- 2005-2006
Derbi Senda 50 R DRD X-Treme 2,9 CV, 2,1 kw 1cil. ABA01/ABB00 Bastidores: --- 2012-2013
Derbi Senda 50 R Racer 3,2 CV, 2,3 kw 1cil. SENDGB Bastidores: VTHSENDGB3H212996-- 2003-2004
Derbi Senda 50 R X-Treme 1cil. KKA00 Bastidores: --- 2018-2021
Derbi Senda 50 R X-Treme Euro4 1cil. KKA00 Bastidores: --- 2022
Derbi Senda 50 RR X-Treme 1cil. - Bastidores: --- 2021-2022
Derbi Senda 50 SM DRD Pro 1cil. SA2A1A Bastidores: --- 2009-2016
Derbi Senda 50 SM DRD Pro 2,9 CV, 2,1 kw 1cil. SA2A1A Bastidores: --- 2007-2008
Derbi Senda 50 SM DRD Racing 2,9 CV, 2,1 kw 1cil. SR2D2B Bastidores: --- 2007-2010
Derbi Senda 50 SM DRD Racing 3,2 CV, 2,3 kw 1cil. SR2A2B Bastidores: VTHSR2A2B5H286719-- 2004-2005
Derbi Senda 50 SM DRD Racing 3,2 CV, 2,3 kw 1cil. SR2D2B Bastidores: --- 2005-2006
Rieju RR 50 Cross 2,7 CV, 2 kw 1cil. - Bastidores: --- 1997-1998
Rieju RR 50 Cross 2,7 CV, 2 kw 1cil. - Bastidores: --- 2002-2002
Rieju RR 50 Sport 4,8/8,4 CV, 3,5/6,2 kw 1cil. - Bastidores: --- 2005-2006
Rieju RR 50 Sport Edition Enduro 4,8/8,4 CV, 3,5/6,2 kw 1cil. - Bastidores: --- 2004
Rieju RR 50 Super Motard 2,7 CV, 2 kw 1cil. - Bastidores: --- 1997-1998
