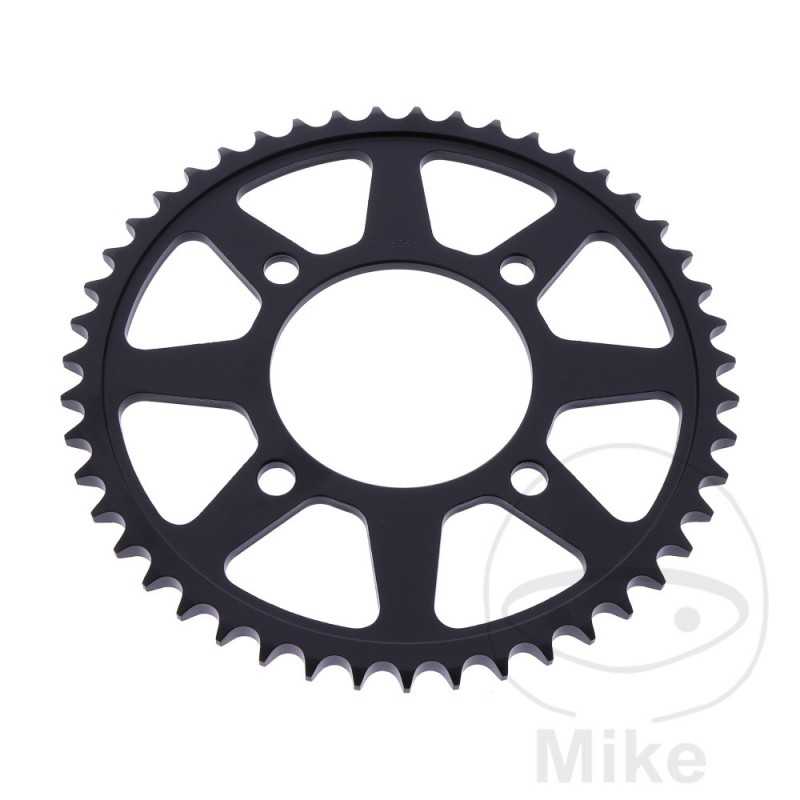

JT SPROCKETS Transmission plate crown 56T P-428 Ø076 MM Ø100 727.65.20

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.
DIVISION: 428
INNER DIAMETER: 76MM
CIRCLE SIZE: 100 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 56
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI RG 125 F GAMMA 33 CV, 24 KW 1CIL. NF13A N BASTIDORES: NF13A-100001-NF13A-104427 1992
SUZUKI RG 125 F GAMMA 33 CV, 24 KW 1CIL. NF13A P BASTIDORES: NF13A-104428-NF13A-107351 1993
SUZUKI RG 125 F GAMMA 33 CV, 24 KW 1CIL. NF13A R BASTIDORES: NF13A-107352-- 1994
SUZUKI RG 125 F GAMMA 33 CV, 24 KW 1CIL. NF13A S BASTIDORES: --- 1995
SUZUKI RG 125 F GAMMA 33 CV, 24 KW 1CIL. NF13A T BASTIDORES: NF13A-108620-- 1996
SUZUKI RG 125 FU GAMMA 33 CV, 24 KW 1CIL. NF13B N BASTIDORES: NF13B-100001-NF13B-101559 1992
SUZUKI RG 125 FU GAMMA 33 CV, 24 KW 1CIL. NF13B P BASTIDORES: NF13B-101560-NF13B-103012 1993
SUZUKI RG 125 FU GAMMA 33 CV, 24 KW 1CIL. NF13B R BASTIDORES: NF13B-103013-- 1994
SUZUKI VL 125 LC INTRUDER 12,2 CV, 9 KW 2CIL. WVA41112 K5 BASTIDORES: A41112 henceforth0102375-A41112 henceforth0103602 2005
SUZUKI VL 125 LC INTRUDER 12,2 CV, 9 KW 2CIL. WVA41112 K6 BASTIDORES: A41112 henceforth0103603-A41112 henceforth0105491 2006
SUZUKI VL 125 LC INTRUDER 12,2 CV, 9 KW 2CIL. WVA41112 K7 BASTIDORES: A41112 henceforth0105492-- 2007-2008
SUZUKI VL 125 LC INTRUDER 13,5 CV, 10 KW 2CIL. A41312 K1 BASTIDORES: A41312 henceforth0104370-- 2001
SUZUKI VL 125 LC INTRUDER 13,5 CV, 10 KW 2CIL. A41312 Y BASTIDORES: A41312 henceforth0100001-A41312 henceforth0104369 2000
SUZUKI VL 125 LC INTRUDER 13,5 CV, 10 KW 2CIL. WVA41112 K2 BASTIDORES: A41112 henceforth0100011-A41112 henceforth0101364 2002
SUZUKI VL 125 LC INTRUDER 13,5 CV, 10 KW 2CIL. WVA41112 K3 BASTIDORES: A41112 henceforth0101365-A41112 henceforth0101966 2003
SUZUKI VL 125 LC INTRUDER 13,5 CV, 10 KW 2CIL. WVA41112 K4 BASTIDORES: A41112 henceforth0101967-A41112 henceforth0102374 2004
SUZUKI VL 125 LC U INTRUDER 80 KM/H 11 CV, 8 KW 2CIL. A42112 K1 BASTIDORES: A42112 henceforth0100742-A42112 henceforth0100791 2001
SUZUKI VL 125 LC U INTRUDER 80 KM/H 11 CV, 8 KW 2CIL. A42112 Y BASTIDORES: A42112 henceforth0100001-A42112 henceforth0100741 2000
SUZUKI VL 125 LC U INTRUDER 80 KM/H 11 CV, 8 KW 2CIL. WVA42112 K2 BASTIDORES: A42112 henceforth0100792-- 2002
