JT SPROCKETS Transmission plate crown 47T P-420 Ø102.2 MM Ø120 727.61.08

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

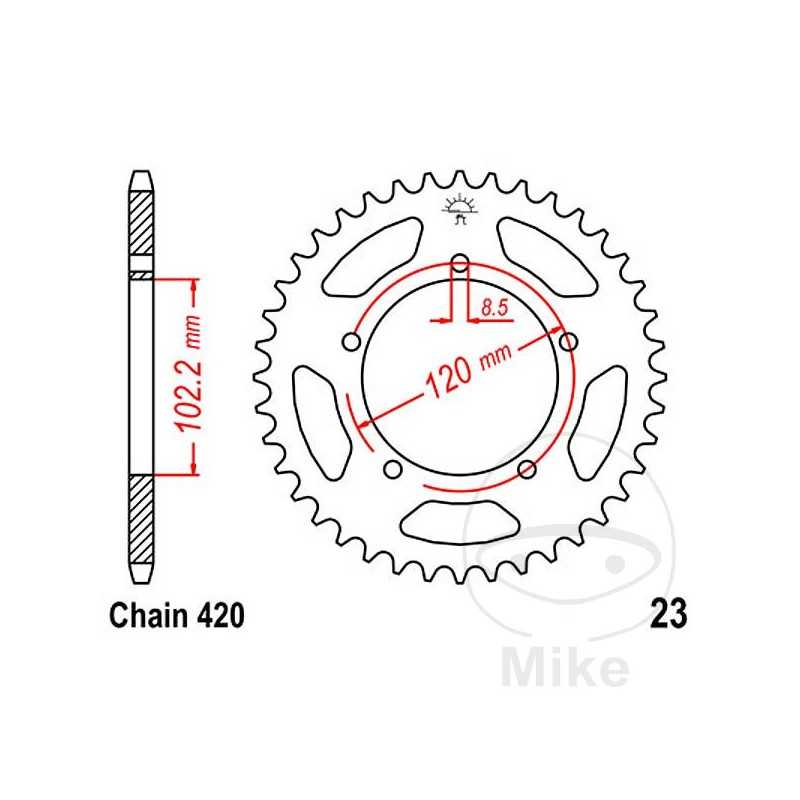

DIVISION: 420
INSIDE DIAMETER: 102.2MM
CIRCLE SIZE: 120 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. HP P Bastidores: --- 1993
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. LM R Bastidores: --- 1994
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM000 S Bastidores: --- 1995
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM000 T Bastidores: --- 1996
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM020 V Bastidores: --- 1997
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. MM020 W Bastidores: --- 1998
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 Bastidores: --- 2001
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 X Bastidores: --- 1999
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. PG000 Y Bastidores: --- 2000
Aprilia RS 50 Extrema/Replica 2,7 CV, 2 kw 1cil. SE000 Bastidores: --- 2002-2003
Aprilia RS 50 Replica 2 CV, 1,4 kw 1cil. SE001 Bastidores: --- 2004-2005
