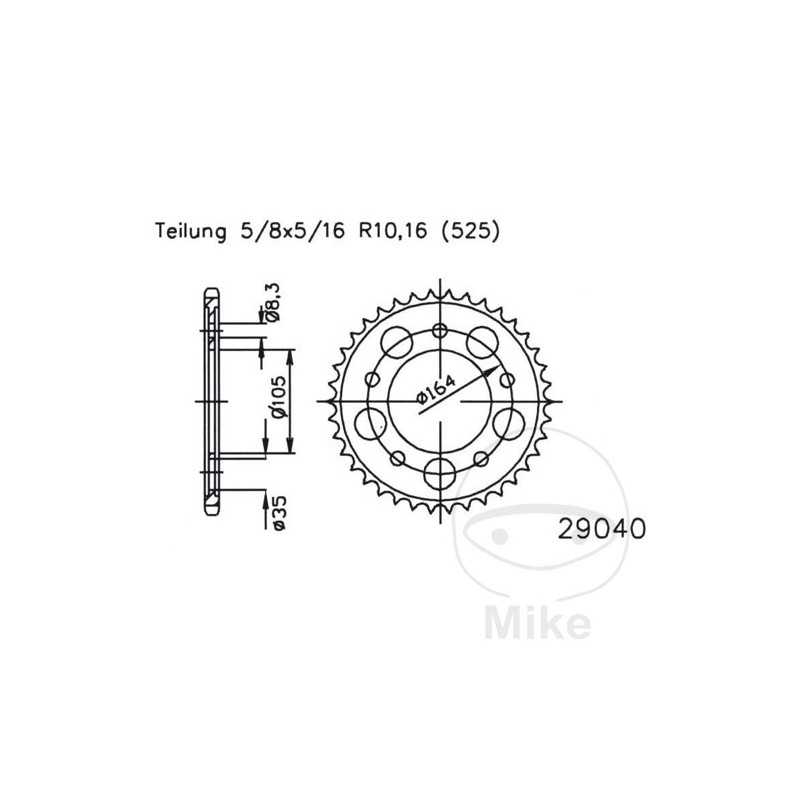

ESJOT Transmission plate crown 47T P-525 Ø105 MM Ø164 727.60.90

ESJOT - Antriebstechnik GmbH is a medium-sized company,

who has specialized in pine nuts for over 80 years.
DIVISION: 525
INSIDE DIAMETER: 105MM
CIRCLE SIZE: 164 MM
HOLE: 8.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
APRILIA SRV 850 IE 76 CV, 56 KW 2CIL. M55103/M55104 BASTIDORES: --- 2012-2017
APRILIA SRV 850 IE ABS 76 CV, 56 KW 2CIL. M55103/M55104 BASTIDORES: --- 2012-2018
GILERA GP 800 34 CV, 25 KW 2CIL. M55100 BASTIDORES: --- 2009-2014
GILERA GP 800 34 CV, 25 KW 2CIL. M55100 BASTIDORES: ZAPM55100 henceforth0001001-- 2007-2008
GILERA GP 800 75 CV, 55 KW 2CIL. M55100 BASTIDORES: --- 2009-2014
GILERA GP 800 75 CV, 55 KW 2CIL. M55100 BASTIDORES: ZAPM55100 henceforth0001001-- 2007-2008
