JT SPROCKETS Transmission plate crown 46T P-520 Ø130 MM Ø150 727.50.00

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

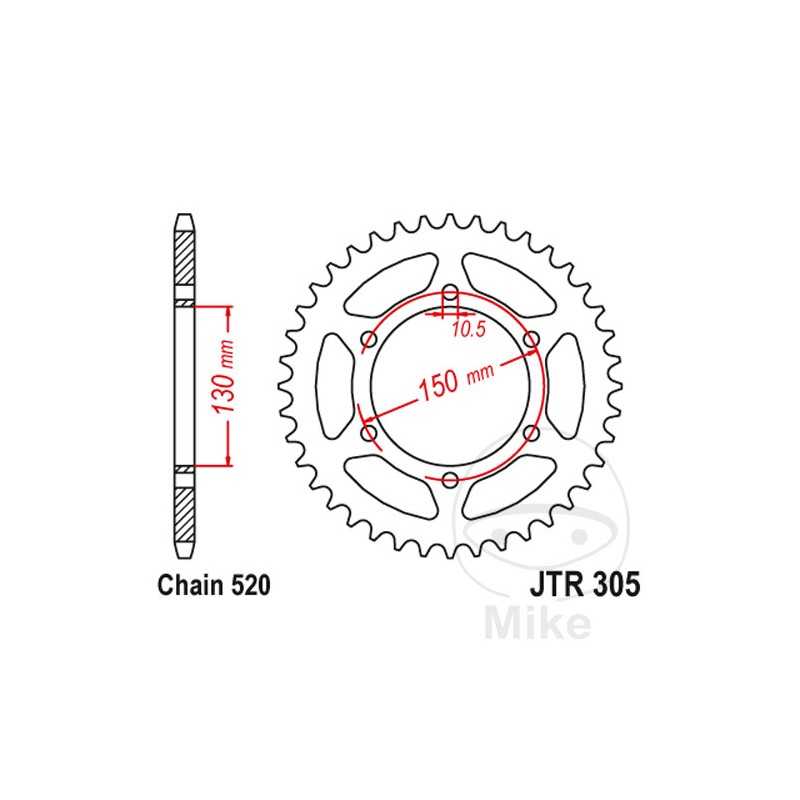

DIVISION: 520
INSIDE DIAMETER: 130MM
CIRCLE SIZE: 150 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 46
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD087 S BASTIDORES: ZDC RD087-1SF000396-- 1995
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B T BASTIDORES: ZDC RD08B henceforthTF100001-- 1996
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B V BASTIDORES: ZDC RD08B henceforthVF200001-- 1997
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B W BASTIDORES: ZDC RD08B henceforthWF300001-- 1998
HONDA NX 650 DOMINATOR 34 CV, 25 KW 1CIL. RD08B X BASTIDORES: ZDC RD08B henceforthXF300001-- 1999-2000
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD087 S BASTIDORES: ZDC RD087 henceforthSF000276-- 1995
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A T BASTIDORES: ZDC RD08A henceforthTF100001-- 1996
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A V BASTIDORES: ZDC RD08A 0VF200001-- 1997
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A W BASTIDORES: ZDC RD08A henceforthWF300001-- 1998
HONDA NX 650 DOMINATOR 44 CV, 32 KW 1CIL. RD08A X BASTIDORES: ZDC RD08A henceforthXF300001-- 1999-2000
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ198 1CW1 BASTIDORES: RJ198 henceforth00301-- 2010
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ19L 1CW8 BASTIDORES: RJ19L henceforth00301-- 2011-2012
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ227 1CWG BASTIDORES: RJ227 henceforth00301-- 2013-2014
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ227 1CWN BASTIDORES: RJ227 henceforth00744-- 2014
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ227 1CWV BASTIDORES: RJ227 henceforth00973-- 2015
YAMAHA XJ6 600 F DIVERSION 77,5 CV, 57 KW 4CIL. RJ227 1CWW BASTIDORES: --- 2015
YAMAHA XJ6 600 FA DIVERSION ABS 48 CV, 35 KW 4CIL. - 1DG6 BASTIDORES: --- 2014
YAMAHA XJ6 600 FA DIVERSION ABS 48 CV, 35 KW 4CIL. - 1DG8 BASTIDORES: --- 2015
YAMAHA XJ6 600 FA DIVERSION ABS 48 CV, 35 KW 4CIL. - 1DGB BASTIDORES: --- 2016
YAMAHA XJ6 600 FA DIVERSION ABS 48 CV, 35 KW 4CIL. - 1DGD BASTIDORES: --- 2016
YAMAHA XJ6 600 FA DIVERSION ABS 48 CV, 35 KW 4CIL. RJ22H 1DG4 BASTIDORES: RJ22H henceforth00301-- 2013
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ199 1DG1 BASTIDORES: RJ199 henceforth00301-- 2010
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ19M 1DG2 BASTIDORES: RJ19M henceforth00301-- 2011-2012
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ228 1DG3 BASTIDORES: RJ228 henceforth00301-- 2013
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ228 1DG5 BASTIDORES: RJ228 henceforth00645-- 2014
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ228 1DG7 BASTIDORES: RJ228 henceforth00919-- 2015
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ228 1DGA BASTIDORES: RJ228 henceforth01001-- 2016
YAMAHA XJ6 600 FA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ228 1DGC BASTIDORES: RJ228 henceforth00996-- 2016
YAMAHA XJ6 600 N 34 CV, 25 KW 4CIL. - 20S2 BASTIDORES: --- 2009
YAMAHA XJ6 600 N 48 CV, 35 KW 4CIL. - B612 BASTIDORES: --- 2015
YAMAHA XJ6 600 N 48 CV, 35 KW 4CIL. RJ221 20ST BASTIDORES: RJ221 henceforth03914-- 2014
YAMAHA XJ6 600 N 48 CV, 35 KW 4CIL. RJ226 20SJ BASTIDORES: RJ226 henceforth00301-- 2013
YAMAHA XJ6 600 N 48 CV, 35 KW 4CIL. RJ226 20SV BASTIDORES: RJ226 henceforth00309-- 2014
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ195 20S1 BASTIDORES: RJ195 henceforth00301-- 2009
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ195 20S5 BASTIDORES: RJ195 henceforth11164-- 2010
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ195 20SA BASTIDORES: RJ195 henceforth11244-- 2010
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ19G 20SB BASTIDORES: RJ19G henceforth00301-- 2011-2012
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ221 20SF BASTIDORES: RJ221 henceforth00301-- 2013
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ221 20SR BASTIDORES: RJ221 henceforth04108-- 2014
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ221 B611 BASTIDORES: RJ221 henceforth04628-- 2015
YAMAHA XJ6 600 N 77,5 CV, 57 KW 4CIL. RJ226 20SU BASTIDORES: RJ226 henceforth00308-- 2014
YAMAHA XJ6 600 N SP 48 CV, 35 KW 4CIL. - 20SM BASTIDORES: --- 2013
YAMAHA XJ6 600 N SP 77,5 CV, 57 KW 4CIL. RJ221 20SL BASTIDORES: RJ221 henceforth02397-- 2013
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. - 36B8 BASTIDORES: --- 2013
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. - 36BC BASTIDORES: --- 2014
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. - 36BG BASTIDORES: --- 2016
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. - 36BJ BASTIDORES: --- 2016
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. RJ22F 36B6 BASTIDORES: RJ22F henceforth00301-- 2013
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. RJ22F 36BA BASTIDORES: RJ22F henceforth00337-- 2014
YAMAHA XJ6 600 NA ABS 48 CV, 35 KW 4CIL. RJ22F 36BE BASTIDORES: RJ22F henceforth00363-- 2015
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ196 36B1 BASTIDORES: RJ196 henceforth00301-- 2009
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ196 36B2 BASTIDORES: RJ196 henceforth02677-- 2010
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ196 36B3 BASTIDORES: RJ196 henceforth02688-- 2010
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ19H 36B4 BASTIDORES: RJ19H henceforth00301-- 2011-2012
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36B5 BASTIDORES: RJ224 henceforth00301-- 2013
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36B7 BASTIDORES: RJ224 henceforth01872-- 2013
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36B9 BASTIDORES: RJ224 henceforth03474-- 2014
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36BB BASTIDORES: RJ224 henceforth03351-- 2014
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36BD BASTIDORES: RJ224 henceforth04433-- 2015
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36BF BASTIDORES: RJ224 henceforth04946-- 2016
YAMAHA XJ6 600 NA ABS 77,5 CV, 57 KW 4CIL. RJ224 36BH BASTIDORES: RJ224 henceforth04986-- 2016
YAMAHA XJ6 600 S DIVERSION 48 CV, 35 KW 4CIL. - 36CB BASTIDORES: --- 2013
YAMAHA XJ6 600 S DIVERSION 48 CV, 35 KW 4CIL. - 36CE BASTIDORES: --- 2014
YAMAHA XJ6 600 S DIVERSION 48 CV, 35 KW 4CIL. - 36CH BASTIDORES: --- 2015
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ191 36C1 BASTIDORES: RJ191 henceforth00301-- 2009
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ191 36C4 BASTIDORES: RJ191 henceforth05683-- 2010
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ19B 36C6 BASTIDORES: RJ19B henceforth00301-- 2011-2012
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ225 36C9 BASTIDORES: RJ225 henceforth00301-- 2013
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ225 36CC BASTIDORES: RJ225 henceforth00695-- 2014
YAMAHA XJ6 600 S DIVERSION 77,5 CV, 57 KW 4CIL. RJ225 36CF BASTIDORES: RJ225 henceforth00912-- 2015
YAMAHA XJ6 600 SA DIVERSION ABS 48 CV, 35 KW 4CIL. - 36DA BASTIDORES: --- 2014
YAMAHA XJ6 600 SA DIVERSION ABS 48 CV, 35 KW 4CIL. - 36DD BASTIDORES: --- 2015
YAMAHA XJ6 600 SA DIVERSION ABS 48 CV, 35 KW 4CIL. - 36DG BASTIDORES: --- 2016
YAMAHA XJ6 600 SA DIVERSION ABS 48 CV, 35 KW 4CIL. - 36DK BASTIDORES: --- 2016
YAMAHA XJ6 600 SA DIVERSION ABS 48 CV, 35 KW 4CIL. RJ22G 36D7 BASTIDORES: RJ22G henceforth00301-- 2013
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. - 36DE BASTIDORES: --- 2016
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. - 36DH BASTIDORES: --- 2016
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ192 36D1 BASTIDORES: RJ192 henceforth00301-- 2009
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ192 36D2 BASTIDORES: RJ192 henceforth03369-- 2010
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ19D 36D3 BASTIDORES: RJ19D henceforth00301-- 2011-2012
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ229 36D5 BASTIDORES: RJ229- 000301-- 2013
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ229 36D8 BASTIDORES: RJ229 henceforth00646-- 2014
YAMAHA XJ6 600 SA DIVERSION ABS 77,5 CV, 57 KW 4CIL. RJ229 36DB BASTIDORES: RJ229 henceforth00965-- 2015
