JT SPROCKETS Transmission plate crown 49T P-428 Ø062 MM Ø080 727.42.77

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

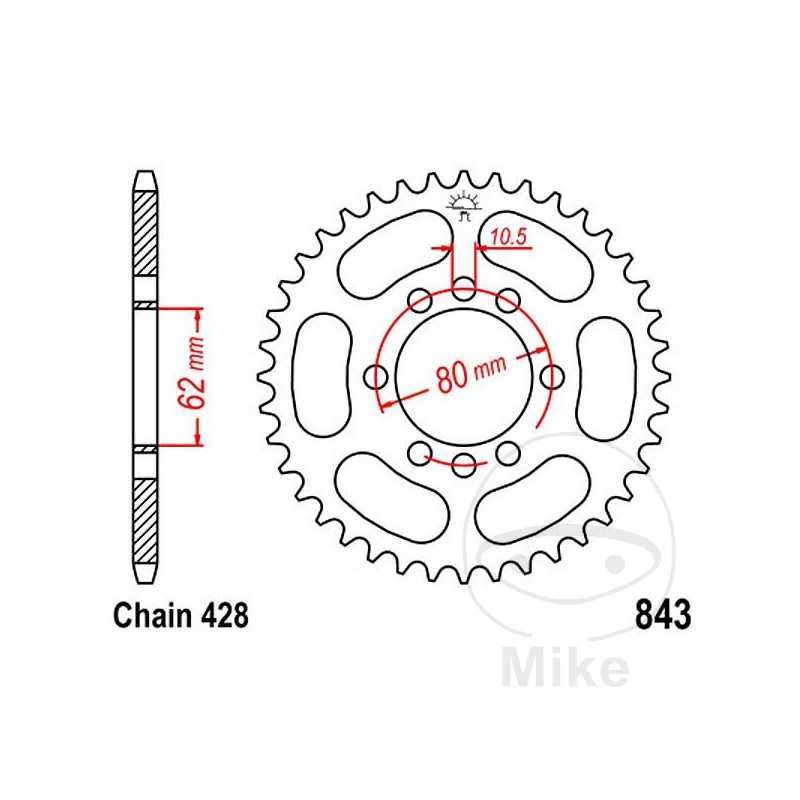

DIVISION: 428
INNER DIAMETER: 62MM
CIRCLE SIZE: 80 MM
HOLE: 10.5MM
HOLES QUANTITY: 8
SCREW TYPE: FLAT HEAD
QTY TEETH: 49
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA DT 125 LC 16 CV, 12 KW 1CIL. 10V 10V BASTIDORES: 10V henceforth00101-10V-100000 1982-1984
YAMAHA DT 175 MX 15 CV, 11 KW 1CIL. 2K4 2K4 BASTIDORES: 2K4 henceforth00101-2K4 henceforth10000 1978
YAMAHA DT 175 MX 15 CV, 11 KW 1CIL. 2K4 2X2 BASTIDORES: 2K4 henceforth10101-2K4 henceforth20000 1979
YAMAHA DT 175 MX 16 CV, 12 KW 1CIL. 2K4 4J4 BASTIDORES: 2K4 henceforth20101-2K4 henceforth60000 1980
YAMAHA DT 175 MX 16 CV, 12 KW 1CIL. 2K4 4J4 BASTIDORES: 2K4 henceforth60101-2K4 henceforth70000 1981-1983
YAMAHA DT 80 LC I 9,5 CV, 7 KW 1CIL. 37A 37A BASTIDORES: 37A henceforth00101-37A henceforth15000 1983
YAMAHA DT 80 LC I 9,5 CV, 7 KW 1CIL. 37A 37A BASTIDORES: 37A henceforth26101-37A henceforth40000 1984
YAMAHA DT 80 LC II 9,5 CV, 7 KW 1CIL. 53V 2RA BASTIDORES: 53V henceforth30101-53V henceforth40000 1987-1989
YAMAHA DT 80 LC II 9,5 CV, 7 KW 1CIL. 53V 3WC1 BASTIDORES: 53V henceforth40101-53V henceforth50000 1990-1991
YAMAHA DT 80 LC II 9,5 CV, 7 KW 1CIL. 53V 4ED1 BASTIDORES: 53V henceforth50101-- 1992-1997
YAMAHA DT 80 LC II 9,5 CV, 7 KW 1CIL. 53V 53V BASTIDORES: 53V henceforth00101-53V henceforth07701 1985-1986
