JT SPROCKETS Transmission plate crown 46T P-532 Ø087 MM Ø110 727.42.69

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

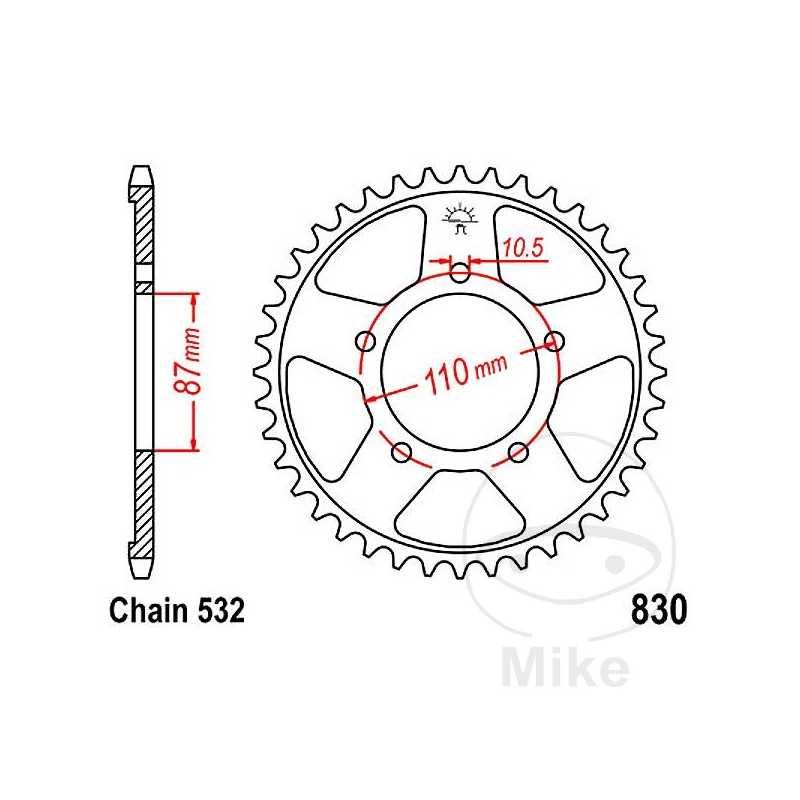

DIVISION: 532
INSIDE DIAMETER: 87MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 46
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD G BASTIDORES: GU74CD-100001-GU74CD-103178 1986
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD H BASTIDORES: GU74CD-103179-GU74CD-106097 1987
SUZUKI GSX-R 1100 100 CV, 74 KW 4CIL. GU74CD J BASTIDORES: GU74CD-106098-- 1988
