JT SPROCKETS Transmission plate crown 57T P-428 Ø108 MM Ø128 727.31.47

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

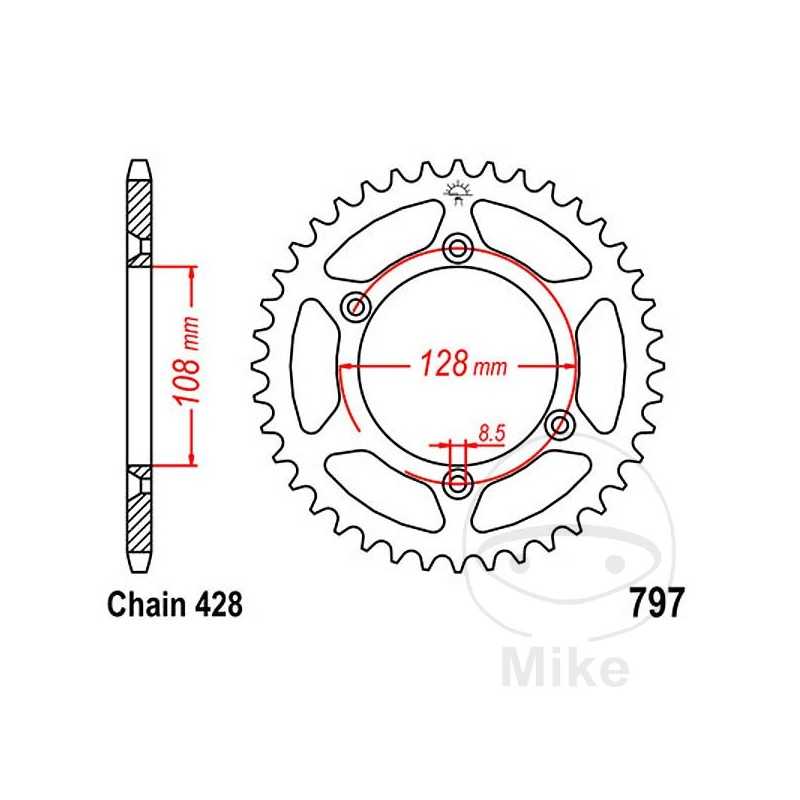

DIVISION: 428
INSIDE DIAMETER: 108MM
CIRCLE SIZE: 128 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 57
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR-Z 125 L 1cil. DF43B M1 Bastidores: DF43B henceforthM7500001-DF43B henceforthM7999999 2021
Suzuki DR-Z 125 L 10 CV, 7,2 kw 1cil. DF43B L7 Bastidores: DF43B henceforthH0500001-DF43B henceforthH0599999 2017-2019
Suzuki DR-Z 125 L 10 CV, 7,2 kw 1cil. DF43B M0 Bastidores: DF43B henceforthL7100001-DF43B henceforthL7999999 2020
Suzuki DR-Z 125 L 12 CV, 8,1 kw 1cil. DF43B L6 Bastidores: DF43B henceforth00500267-DF43B henceforth00599999 2016
Suzuki DR-Z 125 L 12 CV, 8,8 kw 1cil. DF43B K7 Bastidores: DF43B-72100001-- 2007
Suzuki DR-Z 125 L 12 CV, 8,8 kw 1cil. DF43B K8 Bastidores: DF43B-82100001-DF43B-82199999 2008
Suzuki DR-Z 125 L 12 CV, 8,8 kw 1cil. DF43B K9 Bastidores: DF43B-92100001-DF43B-92199999 2009
Suzuki DR-Z 125 L 12 CV, 8,8 kw 1cil. DF43B L0 Bastidores: DF43B-A2100001-DF43B-A2199999 2010-2015
