JT SPROCKETS Transmission plate crown 50T P-428 Ø126 MM Ø146 727.30.55

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

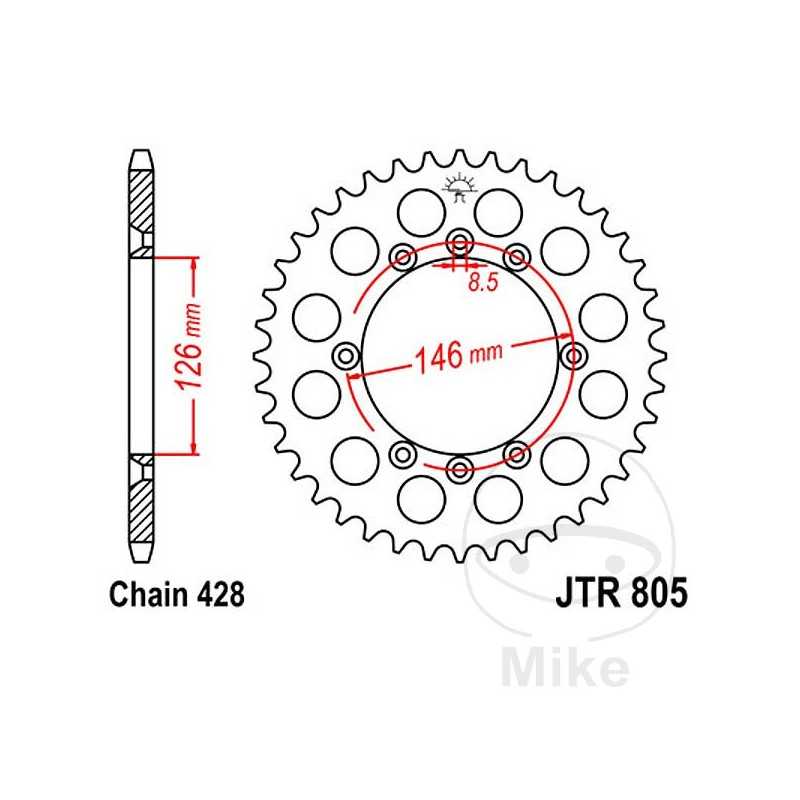

DIVISION: 428
INSIDE DIAMETER: 126MM
CIRCLE SIZE: 146 MM
HOLE: 8.5MM
HOLES QUANTITY: 8
SCREW TYPE: COUNTERSUNK HEAD
QTY TEETH: 50
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI DR 125 SM 11 CV, 8,1 KW 1CIL. CS1111 K9 BASTIDORES: CS1111 henceforth0100001-CS1111 henceforth0100797 2008-2009
SUZUKI DR 125 SM 11 CV, 8,1 KW 1CIL. CS1111 L0 BASTIDORES: CS1111 henceforth0100798-- 2010-2013
