JT SPROCKETS Transmission plate crown 47T P-520 Ø136 MM Ø154 727.28.67

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

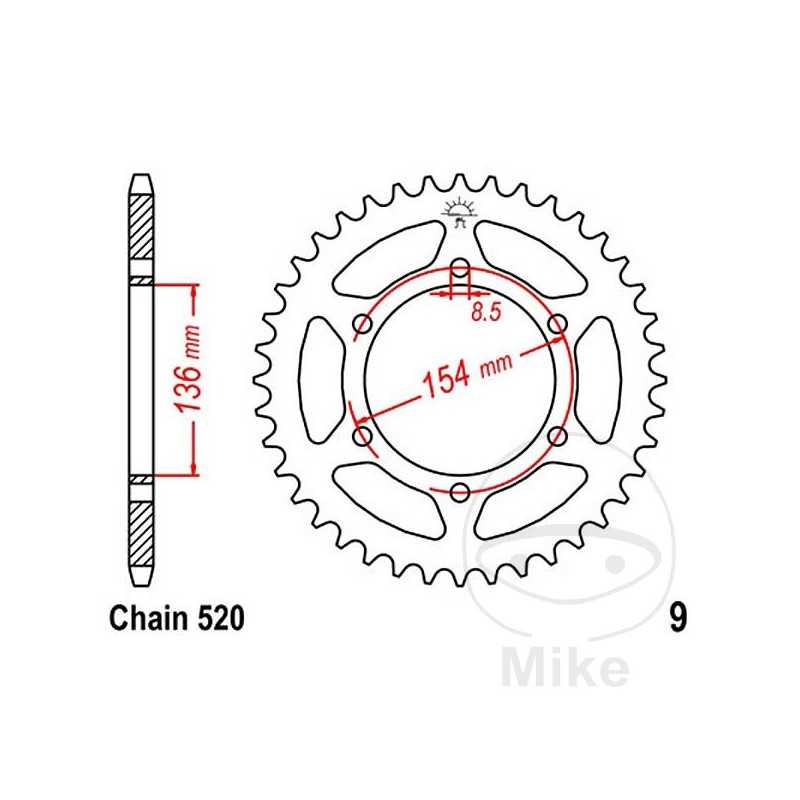

DIVISION: 520
INSIDE DIAMETER: 136MM
CIRCLE SIZE: 154 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 47
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW G 650 Xchallenge 34 CV, 25 kw 1cil. E65X/K15 0165 Bastidores: --- 2009-2010
BMW G 650 Xchallenge 53 CV, 39 kw 1cil. E65X/K15 0165 Bastidores: --- 2009-2010
BMW G 650 Xchallenge ABS 34 CV, 25 kw 1cil. E65X/K15 0165 Bastidores: --- 2009-2010
BMW G 650 Xchallenge ABS 53 CV, 39 kw 1cil. E65X/K15 0165 Bastidores: --- 2009-2010
BMW G 650 Xcountry 34 CV, 25 kw 1cil. E65X/K15 0141 Bastidores: --- 2008-2010
BMW G 650 Xcountry 34 CV, 25 kw 1cil. E65X/K15 0164 Bastidores: --- 2007
BMW G 650 Xcountry 53 CV, 39 kw 1cil. E65X/K15 0141 Bastidores: --- 2008-2010
BMW G 650 Xcountry 53 CV, 39 kw 1cil. E65X/K15 0164 Bastidores: --- 2007
BMW G 650 Xcountry ABS 34 CV, 25 kw 1cil. E65X/K15 0141 Bastidores: --- 2008-2010
BMW G 650 Xcountry ABS 34 CV, 25 kw 1cil. E65X/K15 0164 Bastidores: --- 2007
BMW G 650 Xcountry ABS 53 CV, 39 kw 1cil. E65X/K15 0141 Bastidores: --- 2008-2010
BMW G 650 Xcountry ABS 53 CV, 39 kw 1cil. E65X/K15 0164 Bastidores: --- 2007
