JT SPROCKETS Transmission plate crown 49T P-428 Ø064 MM Ø084 727.27.27

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

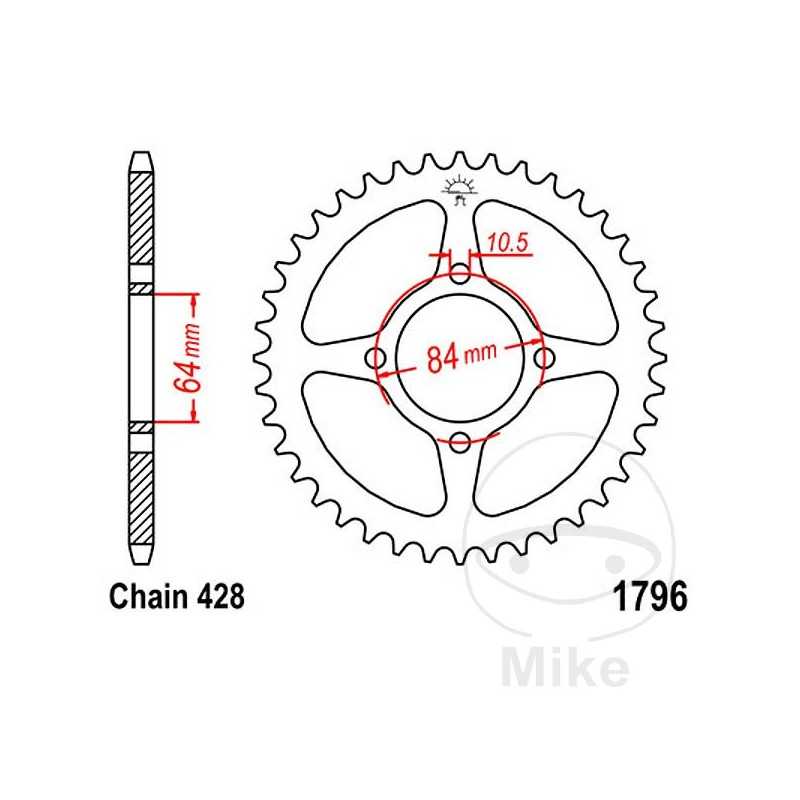

DIVISION: 428
INSIDE DIAMETER: 64MM
CIRCLE SIZE: 84 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 49
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K7 BASTIDORES: BT1111 henceforth0111063-BT1111 henceforth0112755 2007
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K8 BASTIDORES: BT1111 henceforth0112756-BT1111 henceforth0115181 2008
SUZUKI RV 125 VAN VAN 11,6 CV. 8,5 KW 1CIL. WVBT1111 K9 BASTIDORES: BT1111 henceforth0115182-BT1111 henceforth0116732 2009
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K3 BASTIDORES: BT1111 henceforth0100001-BT1111 henceforth0103534 2003
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K4 BASTIDORES: BT1111 henceforth0103535-BT111-100106979 2004
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K5 BASTIDORES: BT1111 henceforth0106980-BT1111 henceforth0107684 2005
SUZUKI RV 125 VAN VAN 11,8 CV. 8,7 KW 1CIL. WVBT1111 K6 BASTIDORES: BT1111 henceforth0107685-BT1111 henceforth0111062 2006
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L0 BASTIDORES: BT1111 henceforth0116733-BT1111 henceforth0122088 2010-2012
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L3 BASTIDORES: BT1111 henceforth0122089-BT1111 henceforth0125553 2013-2014
SUZUKI RV 125 VAN VAN 12 CV. 8,8 KW 1CIL. WVBT1111 L5 BASTIDORES: BT1111 henceforth0125554-- 2015-2017
