JT SPROCKETS Transmission plate crown 46T P-520 Ø142 MM Ø164 727.12.16

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

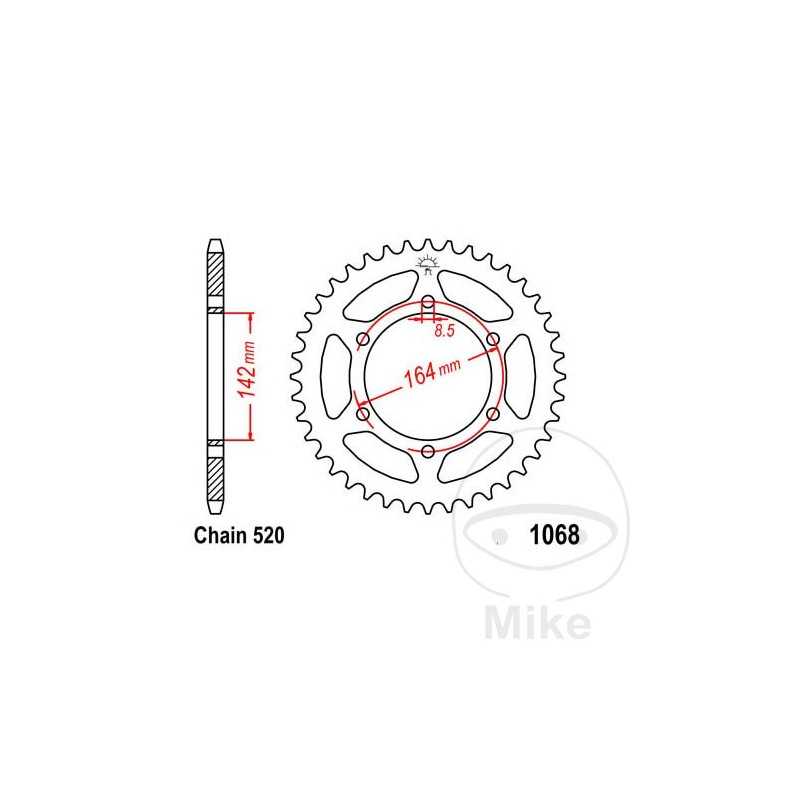

DIVISION: 520
INSIDE DIAMETER: 142MM
CIRCLE SIZE: 164 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 46
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HYOSUNG GD 250 N I NAKED 28 CV, 20,6 KW 1CIL. KM4NF46C BASTIDORES: --- 2014-2017
HYOSUNG GD 250 R I 28 CV, 20,6 KW 1CIL. KM4NF46D BASTIDORES: --- 2015-2017
HYOSUNG GT 250 N I NAKED VERSION E 26,6 CV, 19,6 KW 2CIL. KM4MJ55A BASTIDORES: --- 2010-2011
HYOSUNG GT 250 NAKED 28 CV, 20,5 KW 2CIL. KM4MJ51B BASTIDORES: --- 2004-2007
HYOSUNG GT 250 P I NAKED DELPHI 28 CV, 20,6 KW 2CIL. KM4MJ57A BASTIDORES: --- 2012-2016
HYOSUNG GT 250 R I COMET 28 CV, 20,6 KW 2CIL. - BASTIDORES: --- 2016-2017
HYOSUNG GT 250 R I DELPHI VERSION H 28 CV, 20,6 KW 2CIL. KM4MJ57B BASTIDORES: --- 2012-2015
HYOSUNG GT 250 R I VERSION F 26,6 CV, 19,6 KW 2CIL. KM4MJ55B BASTIDORES: --- 2011
