JT SPROCKETS Transmission plate crown 60T P-428 Ø108 MM Ø123 727.10.10

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

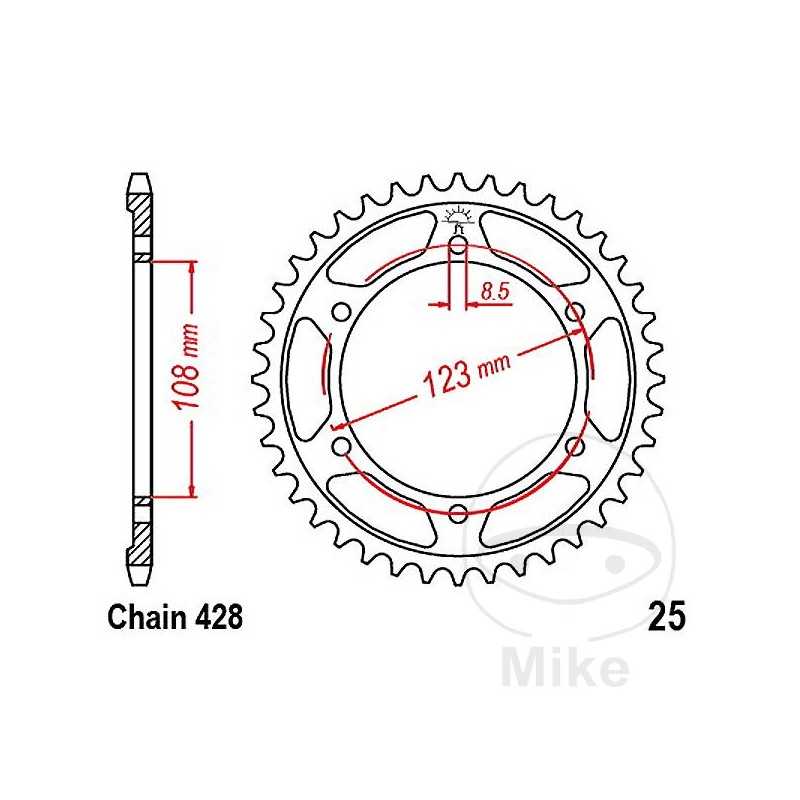

DIVISION: 428
INSIDE DIAMETER: 108MM
CIRCLE SIZE: 123 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 60
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 125 4T ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS 125 4T Replica ABS 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2017-2020
Aprilia RS 125 4T Replica ABS Euro4 15 CV, 11 kw 1cil. KC000 Bastidores: --- 2021
Aprilia RS 125 GP 4T Replica ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2023
Aprilia RS 125 GP 4T Replica ABS Euro5 15 CV, 11 kw 1cil. XAA00 Bastidores: --- 2021-2022
Aprilia RS4 125 4T 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia RS4 125 4T Replica 15 CV, 11 kw 1cil. TW000 Bastidores: --- 2011-2016
Aprilia Tuono 125 4T ABS 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2017-2020
Aprilia Tuono 125 4T ABS Euro4 15 CV, 11 kw 1cil. KCA00 Bastidores: --- 2021
Aprilia Tuono 125 4T ABS Euro5 15 CV, 11 kw 1cil. XAB00 Bastidores: --- 2021-2022
Malaguti Monte Pro 125 Anniversay Edition CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2020-2021
Malaguti Monte Pro 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Malaguti RST 125 CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2019-2021
Zündapp ZRN 125 ie Naked ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2022
Zündapp ZXA 125 ie Adventure CBS 15 CV, 11 kw 1cil. - Bastidores: --- 2018-2020
