The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

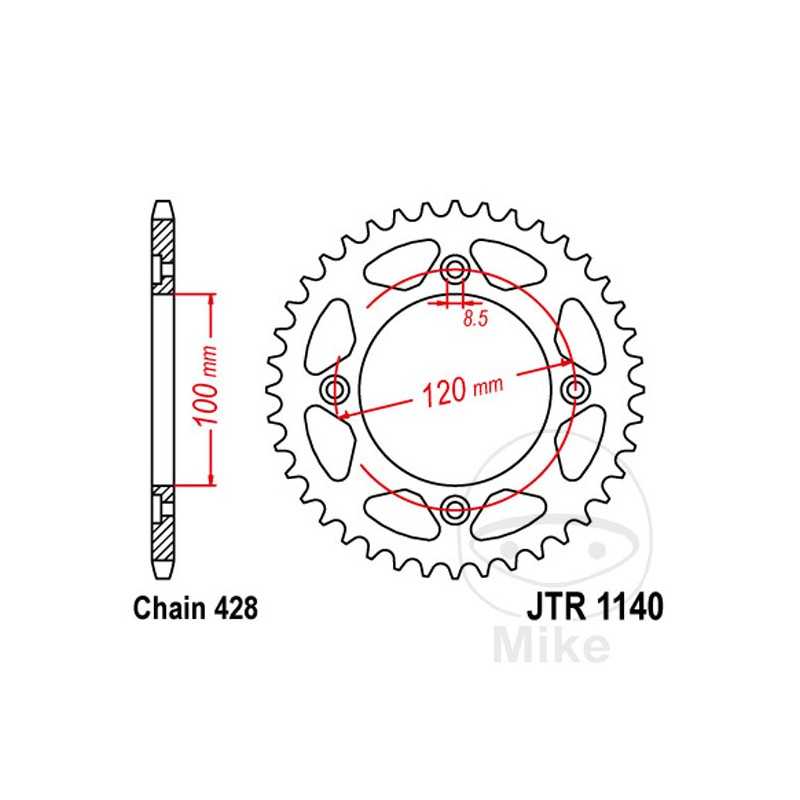

DIVISION: 428
INNER DIAMETER: 100MM
CIRCLE SIZE: 120 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 63
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Beta RE 125 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforth80000451-ZD3E2001 henceforth80000800 2008
Beta RE 125 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforth90100001-ZD3E2001 henceforth90100100 2009
Beta RE 125 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthA0100101-ZD3E2001 henceforthA0100150 2010
Beta RE 125 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthB0100151-ZD3E2001 henceforthB0100210 2011-2015
Beta RE 125 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthG0100906-ZD3E2001 henceforthG0101225 2016-2017
Beta REV3 125 10 CV, 7 kw 1cil. - Bastidores: --- 2001-2004
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforth80000301-ZD3E2001 henceforth80000900 2008
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforth90000901-ZD3E2001 henceforth90001051 2009
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthA0001052-ZD3E2001 henceforthA0001181 2010
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthA0001141-ZD3E2001 henceforthA0001219 2010
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthB0001220-ZD3E2001 henceforthB0001354 2011
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthC0001355-ZD3E2001 henceforthD0001474 2012
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthD0001505-ZD3E2001 henceforthD0100485 2013
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthE0001575-ZD3E2001 henceforthE0100625 2014
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthF0001815-ZD3E2001 henceforthF0100905 2015
Beta RR 125 AC Enduro 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforthG0002135-ZD3E2001 henceforthG0002514 2016-2017
Beta RR 125 AC Enduro 11,3 CV, 8,3 kw 1cil. - Bastidores: --- 2006
Beta RR 125 AC Enduro 11,3 CV, 8,3 kw 1cil. ZD3E2001 Bastidores: ZD3E2001 henceforth70000001-ZD3E2001 henceforth70000300 2007
Beta RR 125 AC Motard 10,3 CV, 7,6 kw 1cil. - Bastidores: --- 2011-2015
Beta RR 125 AC Motard 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001-180000151-ZD3E2001-180000397 2008
Beta RR 125 AC Motard 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001-190000398-ZD3E2001-190000487 2009
Beta RR 125 AC Motard 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001-1A0000488-ZD3E2001-1A0000577 2010
Beta RR 125 AC Motard 10,3 CV, 7,6 kw 1cil. ZD3E2001 Bastidores: ZD3E2001-1A0000578-ZD3E2001-1D0000770 2010
Beta RR 125 LC Enduro 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2012
Beta RR 125 LC Enduro 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforth10000302-ZD3E4000 henceforthE0060846 2013
Beta RR 125 LC Enduro 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthE0000898-ZD3E4000 henceforthE0001017 2014
Beta RR 125 LC Enduro 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthF0001018-ZD3E4000 henceforthG0001617 2015
Beta RR 125 LC Enduro 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthG0001618-ZD3E4000 henceforthG0002467 2016
Beta RR 125 LC Enduro CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthH0100013-ZD3E9143-XH0101492 2017
Beta RR 125 LC Enduro CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthJ0101507-ZD3E9143-XJ0101742 2018
Beta RR 125 LC Enduro CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthJ0101751-ZD3E9143-XJ0102700 2018
Beta RR 125 LC Enduro CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthK0102707-ZD3E9143-XK0104352 2019
Beta RR 125 LC Enduro CBS Color blanco 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthL0104362-ZD3E9143-XL0105163 2020
Beta RR 125 LC Enduro CBS Color blanco Euro5 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100008-ZD3EH143-XN0104133 2021
Beta RR 125 LC Enduro CBS Color negro 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthL0104474-ZD3E9143-XL0105261 2020
Beta RR 125 LC Enduro CBS Color negro Euro5 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100204-ZD3EH143-XN0104293 2021
Beta RR 125 LC Enduro CBS Color rojo 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthL0104412-ZD3E9143-XL0105275 2020
Beta RR 125 LC Enduro CBS Color rojo Euro5 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100106-ZD3EH143-XN0104214 2021
Beta RR 125 LC Enduro CBS Farbe Rot 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100106-ZD3EH143-XN0104214 2022-2023
Beta RR 125 LC Enduro CBS Farbe Schwarz 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100204-ZD3EH143-XN0104293 2022-2023
Beta RR 125 LC Enduro CBS Farbe Weiss 15 CV, 11 kw 1cil. ZD3EH143 Bastidores: ZD3EH143 henceforthM0100008-ZD3EH143-XN0104133 2022-2023
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2012
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthA0100001-ZD3E4000 henceforthD0100365 2013
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthE0100366-ZD3E4000 henceforthE0100425 2014
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthE0100426-ZD3E4000 henceforthE0100455 2014
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthF0100456-ZD3E4000 henceforthG0100645 2015
Beta RR 125 LC Motard 15 CV, 11 kw 1cil. ZD3E4000 Bastidores: ZD3E4000 henceforthG0100646-ZD3E4000 henceforthG0100945 2016
Beta RR 125 LC Motard CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthH0200001-ZD3E914C-XH0200345 2017
Beta RR 125 LC Motard CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthJ0200358-ZD3E914C-XJ0200660 2018
Beta RR 125 LC Motard CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthJ0200683-ZD3E914C-XJ0201291 2018
Beta RR 125 LC Motard CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthK0201303-ZD3E914C-XK0202460 2019
Beta RR 125 LC Motard CBS Color blanco 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthL0202565-ZD3E914C-XL0203190 2020
Beta RR 125 LC Motard CBS Color negro 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthL0202484-ZD3E914C-XL0203125 2020
Beta RR 125 R LC Enduro Limited Edition CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthK0103503-ZD3E9143-XK0103699 2019
Beta RR 125 R LC Enduro Limited Edition CBS 15 CV, 11 kw 1cil. ZD3E9143 Bastidores: ZD3E9143 henceforthL0104717-ZD3E9143-XL0105230 2020
Beta RR 125 R LC Motard Limited Edition CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthK0202029-ZD3E914C-XK0202166 2019
Beta RR 125 R LC Motard Limited Edition CBS 15 CV, 11 kw 1cil. ZD3E914C Bastidores: ZD3E914C henceforthL0202713-ZD3E914C-XL0203206 2020
