JT SPROCKETS Transmission plate crown 40T P-520 Ø110 MM Ø130 727.55.06

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

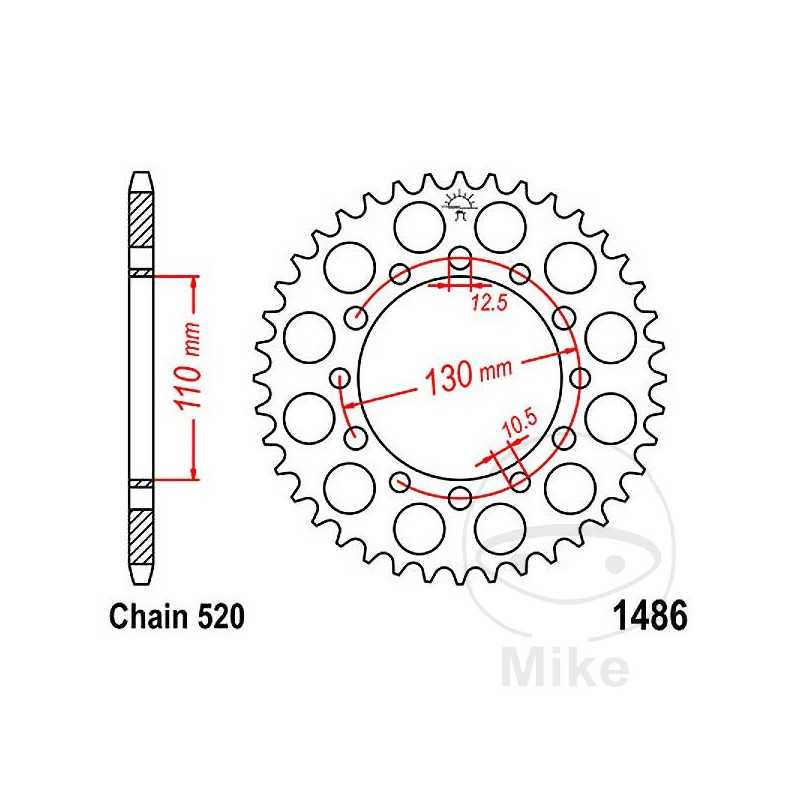

DIVISION: 520
INSIDE DIAMETER: 110MM
CIRCLE SIZE: 130 MM
HOLE: 10.5
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250B 3 Bastidores: EL250B henceforth55001-EL250B henceforth60000 1997-1998
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 4 Bastidores: EL250BFA henceforth60001-EL250BFA-999999 1999-2000
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 5 Bastidores: EL250BFA henceforth63001-EL250BFA-999999 2001-2002
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250BFA 6 Bastidores: EL250BFA henceforth66001-EL250BFA-999999 2003
Kawasaki EL 252 F Eliminator 30 CV, 22 kw 2cil. EL250F 2 Bastidores: EL250F henceforth00001-EL250F-999999 1996
