JT SPROCKETS Transmission plate crown 39T P-520 Ø80 MM Ø110 727.43.84

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

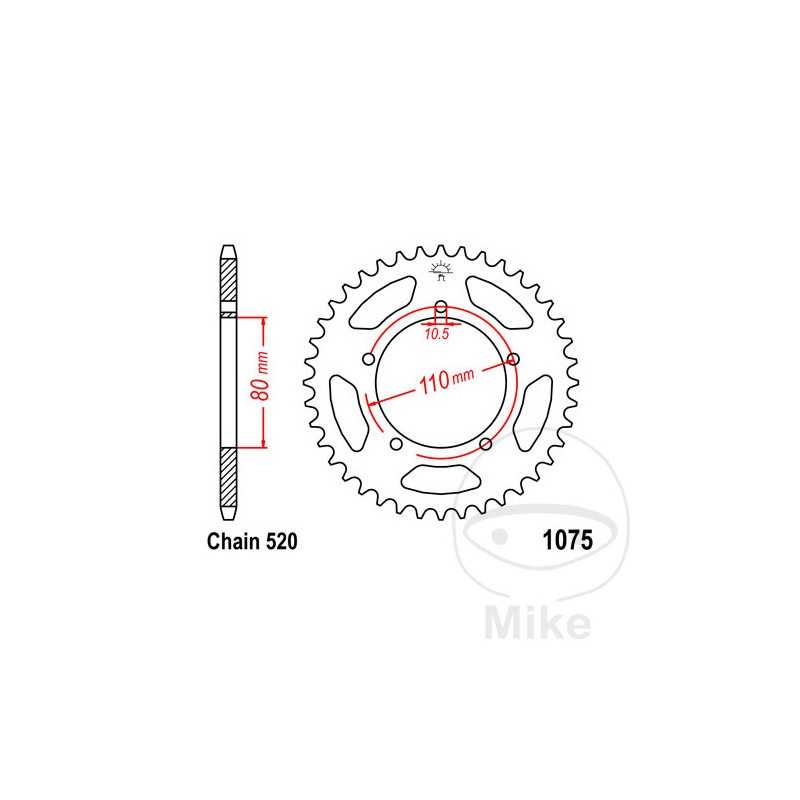

DIVISION: 520
INNER DIAMETER: 80MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 39
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CB 400 N EURO 27 CV, 20 KW 2CIL. CB400N D BASTIDORES: CB400N-3400001-CB400N-3499999 1983-1985
HONDA CB 400 N EURO 43 CV, 32 KW 2CIL. CB400N D BASTIDORES: CB400N-2400001-CB400N-2499999 1983-1985
KYMCO VENOX 250 27 CV, 20 KW 2CIL. R20010 BASTIDORES: RFBR20010-- 2002-2004
KYMCO VENOX 250 27 CV, 20 KW 2CIL. R20011 BASTIDORES: RFBR20011-- 2004-2006
KYMCO VENOX 250 I 29,7 CV, 21,8 KW 2CIL. R20012 BASTIDORES: RFBR20012-- 2007-2013
