JT SPROCKETS Transmission plate crown 38T P-530 Ø74 MM Ø110 727.41.52

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

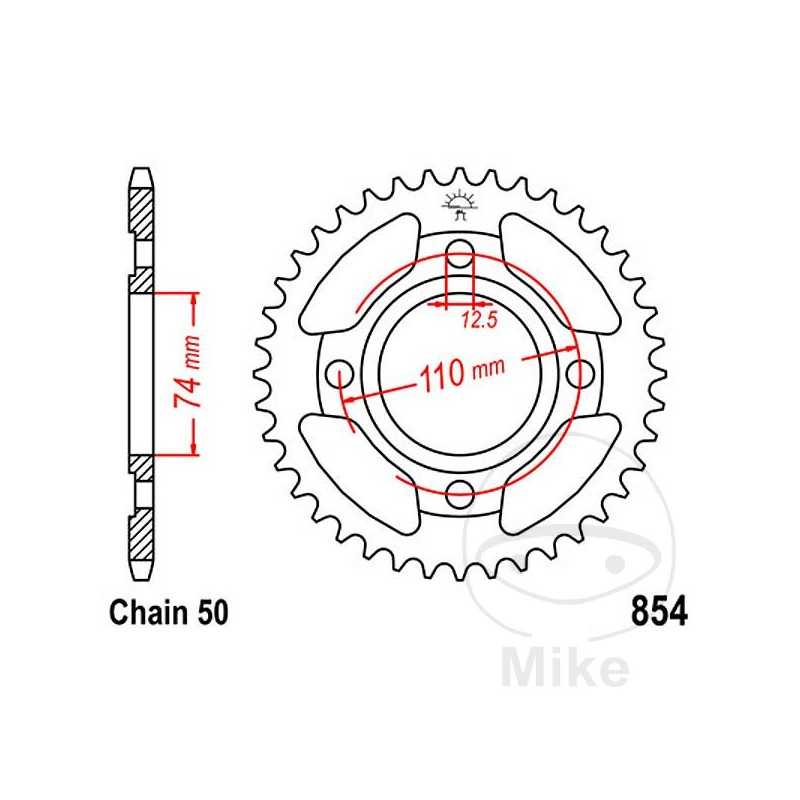

DIVISION: 530
INSIDE DIAMETER: 74MM
CIRCLE SIZE: 110 MM
HOLE: 12.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha RD 250 27 CV, 20 kw 2cil. 1A2 2R8 Bastidores: 1A2-220101-1A2-240000 1978
Yamaha RD 250 27 CV, 20 kw 2cil. 1A2 2R8 Bastidores: 1A2-430101-1A2-450000 1979
Yamaha RD 250 30 CV, 22 kw 2cil. 1A2 2R8 Bastidores: 1A2-220101-1A2-240000 1978
Yamaha RD 250 30 CV, 22 kw 2cil. 1A2 2R8 Bastidores: 1A2-430101-1A2-450000 1979
Yamaha RD 400 43 CV, 32 kw 2cil. 1A3 2R9 Bastidores: 1A3-110101-1A3-120000 1978
Yamaha RD 400 43 CV, 32 kw 2cil. 1A3 2R9 Bastidores: 1A3-330101-1A3-350000 1979
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2 henceforth60101-2A2 henceforth70000 1980
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2 henceforth70101-2A2 henceforth80000 1981
Yamaha XS 400 27 CV, 20 kw 2cil. 2A2 4A3 Bastidores: 2A2-400101-2A2-500000 1982
Yamaha XS 400 SE Special 27 CV, 20 kw 2cil. 4G5 4G5 Bastidores: 4G5 henceforth10101-4G5 henceforth30000 1981
Yamaha XS 400 SE Special 27 CV, 20 kw 2cil. 4G5 4G5 Bastidores: 4G5 henceforth30101-4G5 henceforth50000 1982-1983
