JT SPROCKETS Transmission plate crown 40T P-520 Ø120 MM Ø140 727.41.37

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

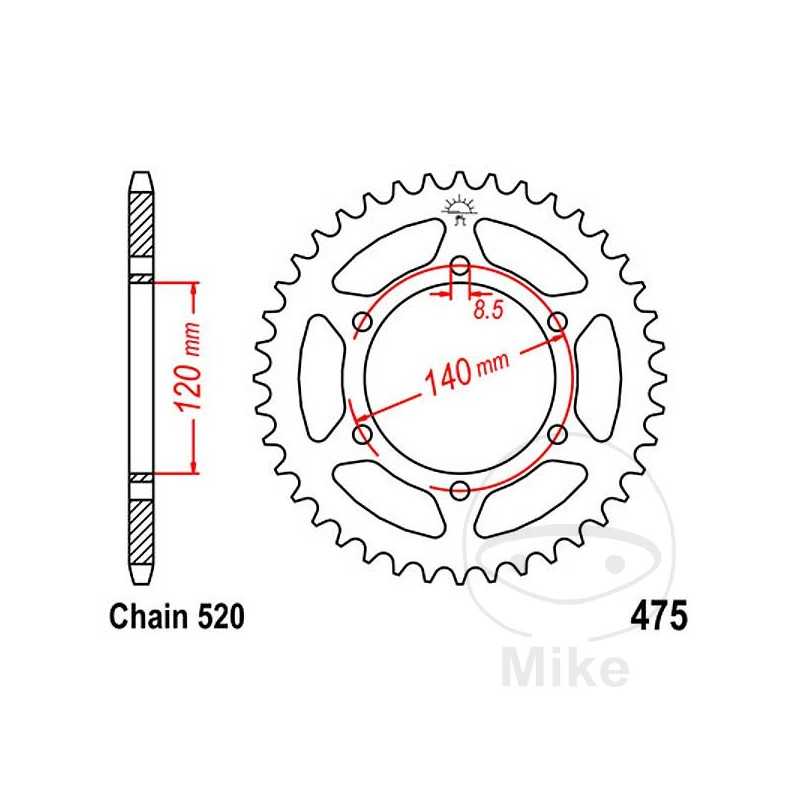

DIVISION: 520
INNER DIAMETER: 120MM
CIRCLE SIZE: 140 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI KL 250 A 17 CV, 13 KW 1CIL. KL250A 3 BASTIDORES: KL250A henceforth17301-KL250A henceforth27800 1980
KAWASAKI KL 250 A 17 CV, 13 KW 1CIL. KL250A 4 BASTIDORES: KL250A henceforth27801-KL250A henceforth40500 1981
KAWASAKI KL 250 A 17 CV, 13 KW 1CIL. KL250A 5 BASTIDORES: KL250A henceforth40501-- 1982-1983
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 2 BASTIDORES: KL250D henceforth00001-KL250D henceforth10200 1984-1985
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 3 BASTIDORES: KL250D henceforth10201-KL250D henceforth15000 1986
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 4 BASTIDORES: KL250D henceforth15001-KL250D henceforth19000 1987
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 5 BASTIDORES: KL250D henceforth19001-KL250D henceforth22300 1988
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 6 BASTIDORES: KL250D henceforth22301-KL250D henceforth26500 1989
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 7 BASTIDORES: KL250D henceforth26501-KL250D henceforth33000 1990
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 8 BASTIDORES: KL250D henceforth33001-KL250D henceforth40000 1991
KAWASAKI KLR 250 D 26/17 CV, 19/13 KW 1CIL. KL250D 9 BASTIDORES: KL250D henceforth40001-- 1992
