JT SPROCKETS Transmission plate crown 38T P-525 Ø120 MM Ø138 727.37.45

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

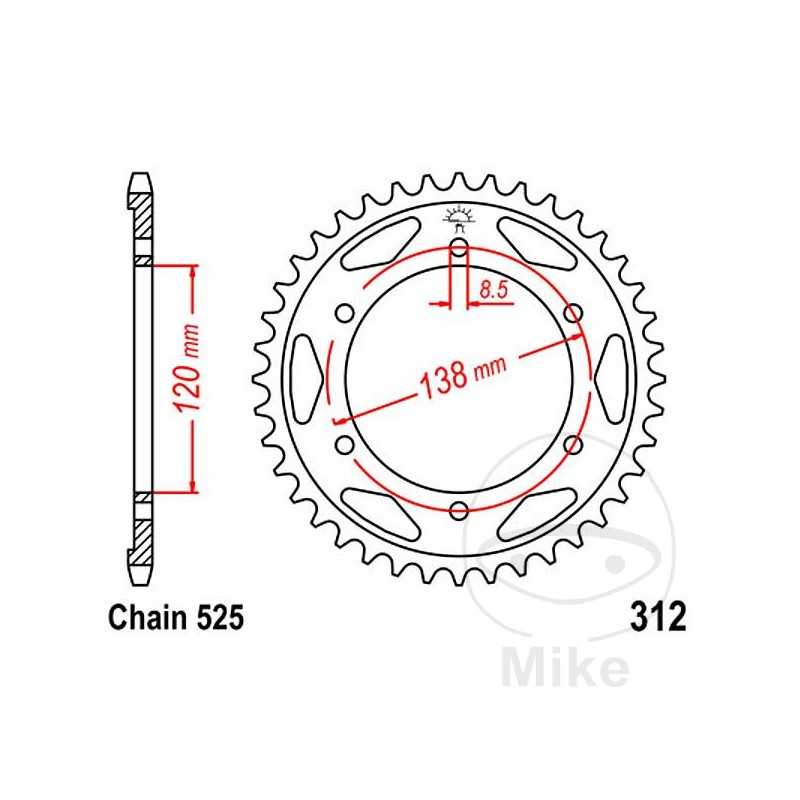

DIVISION: 525
INNER DIAMETER: 120MM
CIRCLE SIZE: 138 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda RVF 400 R 59 CV, 44 kw 4cil. NC35 R Bastidores: NC35-1000001-- 1994-1995
Honda RVF 400 R 59 CV, 44 kw 4cil. NC35 T Bastidores: NC35-1100001-- 1996
Honda RVF 750 R 98 CV, 72 kw 4cil. RC45 R Bastidores: RC45-2000146-- 1994
Honda RVF 750 R 98 CV, 72 kw 4cil. RC45 S Bastidores: RC45-2100008-- 1995-1997
Honda VFR 400 RIII 61 CV, 45 kw 4cil. NC30 K Bastidores: NC30-1000001-NC30-1014269 1989
Honda VFR 400 RIII 61 CV, 45 kw 4cil. NC30 L Bastidores: NC30-2000006-- 1990
Honda VFR 400 RIII 61 CV, 45 kw 4cil. NC30 M Bastidores: NC30-2100001-- 1991
Honda VFR 750 R 100 CV, 74 kw 4cil. RC30 J Bastidores: RC30-2000223-RC30-2001707 1988
Honda VFR 750 R 100 CV, 74 kw 4cil. RC30 K Bastidores: RC30-2100011-RC30-2101093 1989-1993
