JT SPROCKETS Transmission plate crown 39T P-525 Ø118 MM Ø138 727.37.27

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

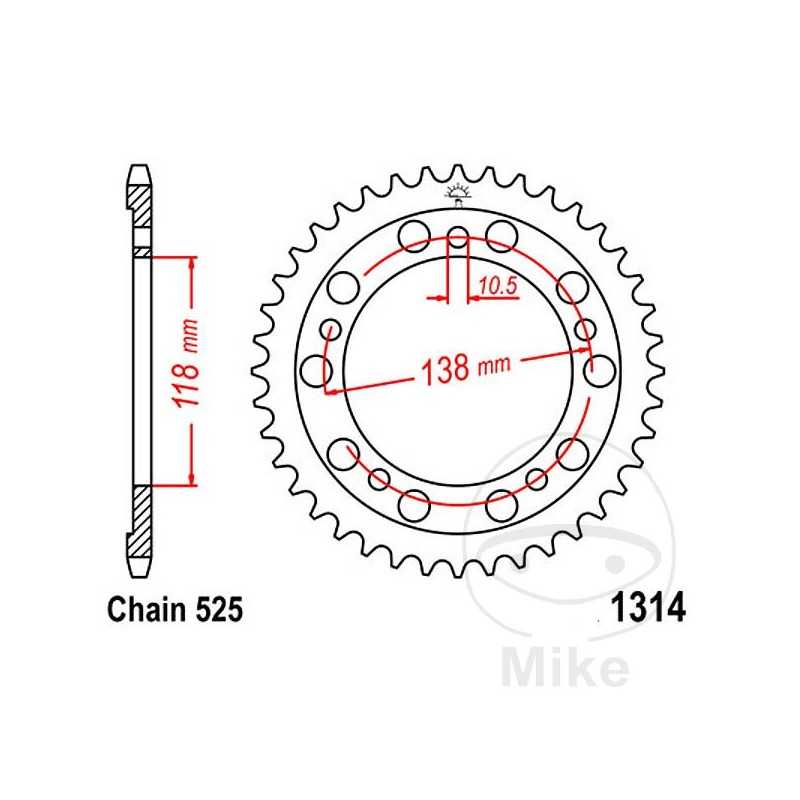

DIVISION: 525
INSIDE DIAMETER: 118MM
CIRCLE SIZE: 138 MM
HOLE: 10.5MM
HOLES QUANTITY: 5
SCREW TYPE: FLAT HEAD
QTY TEETH: 39
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 400 RR 59 CV,43 KW 4CIL. NC29 L BASTIDORES: NC29-1000001-NC29-1010598 1990-1991
HONDA CBR 400 RR 59 CV,43 KW 4CIL. NC29 N BASTIDORES: NC29-1050001-- 1992-1993
HONDA CBR 400 RR 59 CV,43 KW 4CIL. NC29 R BASTIDORES: NC29-1100001-- 1994-1999
