JT SPROCKETS Transmission plate crown 41T P-520 Ø58 MM Ø110 727.33.07

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

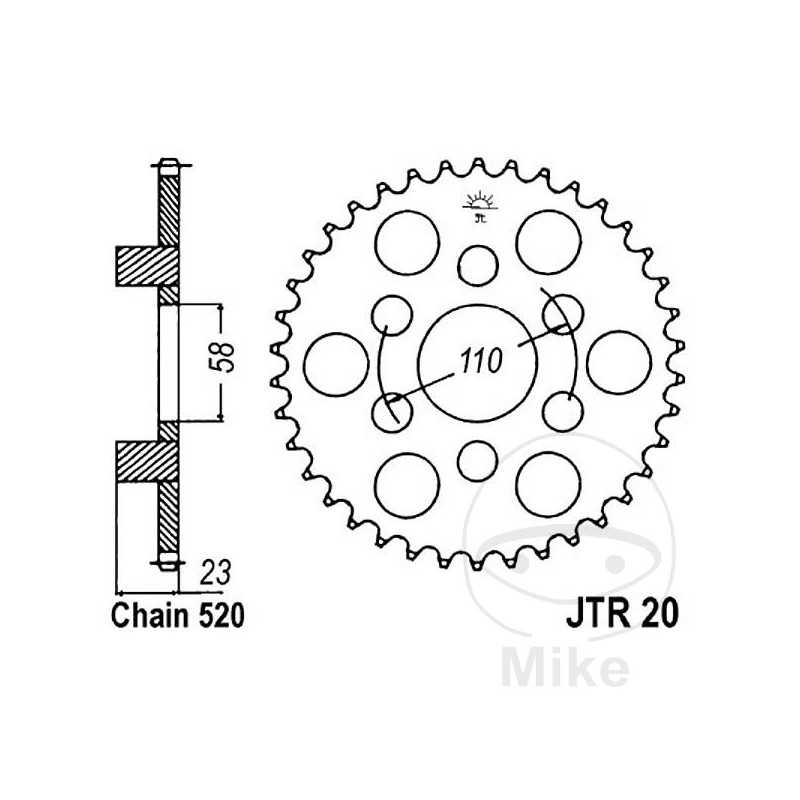

DIVISION: 520
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 110 MM
HOLES QUANTITY: NONE
QTY TEETH: 41
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Classic 125 11,6 CV, 8,5 kw 1cil. MF000 Bastidores: --- 1999-2001
Aprilia Classic 125 27/11 CV, 20/8 kw 1cil. MF000 Bastidores: --- 1997-1998
Aprilia Red Rose 125 H 1cil. FA Bastidores: --- 1987
Aprilia Red Rose 125 J 1cil. FA Bastidores: --- 1988
Aprilia Red Rose 125 K 1cil. FA Bastidores: --- 1989
Aprilia Red Rose 125 L 27 CV, 20 kw 1cil. FQ Bastidores: --- 1990
Aprilia Red Rose 125 M 27 CV, 20 kw 1cil. FQ Bastidores: --- 1991
Aprilia Red Rose 125 N 27 CV, 20 kw 1cil. FQ Bastidores: --- 1992
Aprilia Red Rose 125 P 27 CV, 20 kw 1cil. FQ Bastidores: --- 1993
Aprilia Red Rose 125 R 27 CV, 20 kw 1cil. FQ Bastidores: --- 1994-1996
