JT SPROCKETS Transmission plate crown 38T P-530 Ø90 MM Ø110 727.32.20

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.

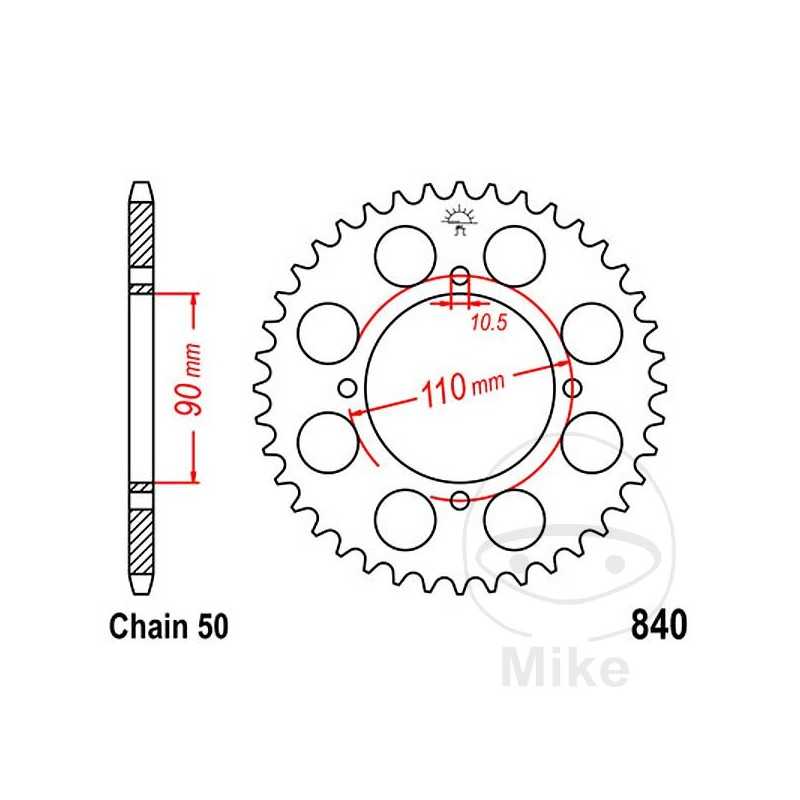

DIVISION: 530
INNER DIAMETER: 90MM
CIRCLE SIZE: 110 MM
HOLE: 10.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA XS 400 DOHC 27 CV, 20 KW 2CIL. 12E 12F BASTIDORES: 12E-100101-12E-200000 1982-1984
YAMAHA XS 400 DOHC 45 CV, 33 KW 2CIL. 12E 12E BASTIDORES: 12E henceforth00101-12E-100000 1982-1984
