JT SPROCKETS Transmission plate crown 41T P-520 Ø80 MM Ø100 727.22.30

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

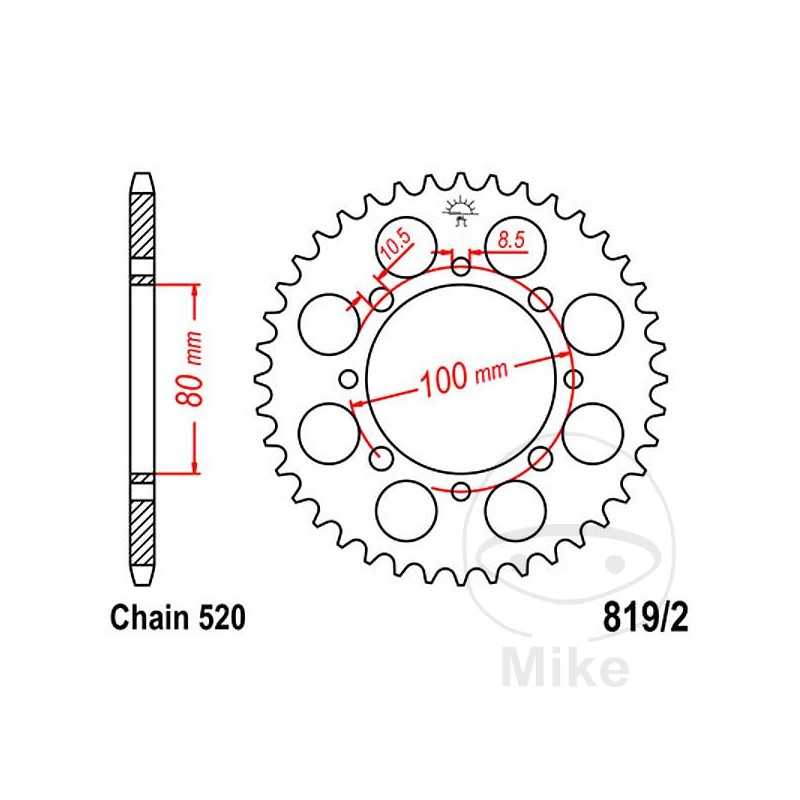

DIVISION: 520
INNER DIAMETER: 80MM
CIRCLE SIZE: 100 MM
HOLE: 10.5
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 41
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A M Bastidores: NJ42A-103100-NJ42A-107207 1991-1993
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A R Bastidores: NJ42A-107208-- 1994-1995
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A T Bastidores: NJ42A-109657-- 1996-1997
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A W Bastidores: NJ42A-110966-NJ42A-111515 1998
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42A X Bastidores: NJ42A-111516-- 1999
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD F Bastidores: NJ42AD-100705-NJ42AD-101614 1985-1987
Suzuki GN 250 17 CV, 13 kw 1cil. NJ42AD J Bastidores: NJ42AD-101615-- 1988-1990
Suzuki GNX 250 E 17 CV, 13 kw 1cil. NJ41A D Bastidores: NJ41A-101914-- 1983-1984
Suzuki GNX 250 E 17 CV, 13 kw 1cil. NJ42A Z Bastidores: NJ42A-100001-NJ42A-101913 1982
Suzuki GT 200 E X5 17 CV, 13 kw 2cil. GT200 N Bastidores: GT200-500001-- 1979-1981
Suzuki GT 200 X5 17 CV, 13 kw 2cil. GT200 N Bastidores: GT200-100001-- 1979-1981
Suzuki GT 250 E X7 27 CV, 20 kw 2cil. GT2502 N Bastidores: GT2502-500001-GT2502-519408 1979
Suzuki GT 250 E X7 27 CV, 20 kw 2cil. GT2502 X Bastidores: GT2502-519409-- 1980-1981
Suzuki GT 250 X7 27 CV, 20 kw 2cil. GT2502 N Bastidores: GT2502-100001-GT2502-115096 1979
Suzuki GT 250 X7 27 CV, 20 kw 2cil. GT2502 X Bastidores: GT2502-115097-- 1980-1981
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1211 K1 Bastidores: AR1211 henceforth0101241-- 2001
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1211 K2 Bastidores: AR1211 henceforth0100001-- 2002
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1211 X Bastidores: AR1211 henceforth0100001-AR1211 henceforth0100858 1999
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1211 Y Bastidores: AR1211 henceforth0100859-AR1211 henceforth0101240 2000
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1511 K3 Bastidores: AR1511 henceforth0100001-AR1511 henceforth0101461 2003
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1511 K4 Bastidores: AR1511 henceforth0101462-AR1511 henceforth0103152 2004
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1511 K5 Bastidores: AR1511 henceforth0103153-AR1511 henceforth0105674 2005
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1511 K6 Bastidores: AR1511 henceforth0105675-AR1511 henceforth0107415 2006
Suzuki GZ 250 Marauder 20,4 CV, 15 kw 1cil. AR1511 K7 Bastidores: AR1511 henceforth0107416-- 2007-2008
Suzuki TU 250 X Volty 20 CV, 14,7 kw 1cil. AB1111 K1 Bastidores: AB1111 henceforth0109568-- 2001
Suzuki TU 250 X Volty 20 CV, 14,7 kw 1cil. AB1111 V Bastidores: AB1111 henceforth0100001-AB1111 henceforth0102385 1997
Suzuki TU 250 X Volty 20 CV, 14,7 kw 1cil. AB1111 W Bastidores: AB1111 henceforth0102386-AB1111 henceforth0105538 1998
Suzuki TU 250 X Volty 20 CV, 14,7 kw 1cil. AB1111 X Bastidores: AB1111 henceforth0105539-AB1111 henceforth0107830 1999
Suzuki TU 250 X Volty 20 CV, 14,7 kw 1cil. AB1111 Y Bastidores: AB1111 henceforth0107831-AB1111 henceforth0109567 2000
