JT SPROCKETS Transmission plate crown 33T P-630 Ø98 MM Ø130 727.21.72

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

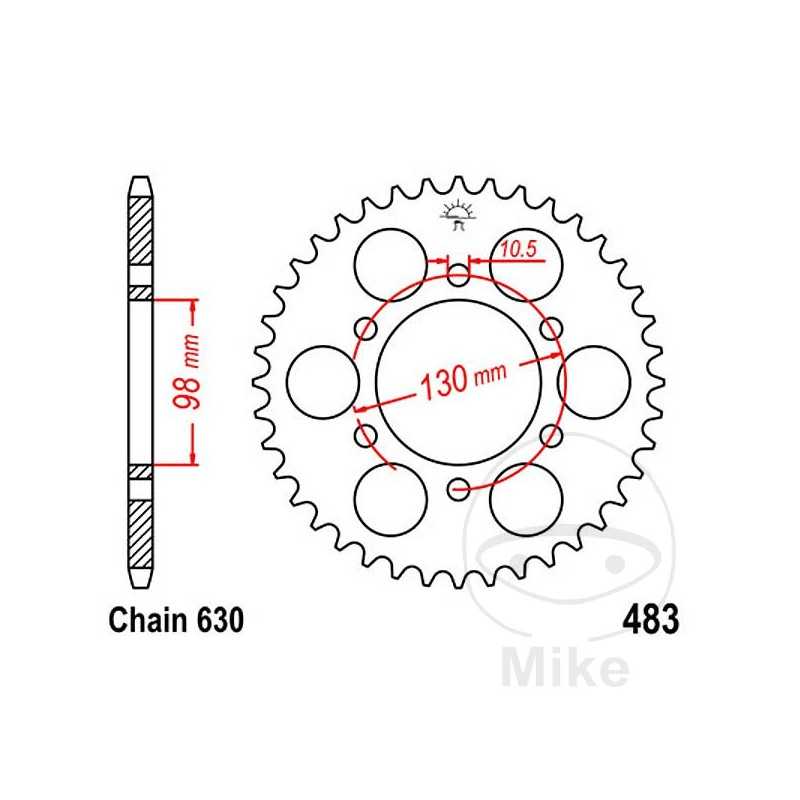

DIVISION: 630
INSIDE DIAMETER: 98MM
CIRCLE SIZE: 130 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 33
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KAWASAKI Z 900 A 81 CV, 60 KW 4CIL. Z1F 4 BASTIDORES: Z1F henceforth89701-- 1976
KAWASAKI Z1 900 79 CV, 59 KW 4CIL. Z1F BASTIDORES: Z1F henceforth00001-Z1F henceforth20000 1973
KAWASAKI Z1A 900 79 CV, 58 KW 4CIL. Z1F BASTIDORES: Z1F-20001-Z1F-47499 1974
KAWASAKI Z1B 900 79 CV, 58 KW 4CIL. Z1F BASTIDORES: Z1F-47500-Z1F henceforth85700 1975
