JT SPROCKETS Transmission plate crown 35T P-420 Ø58 MM Ø90 727.20.57

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

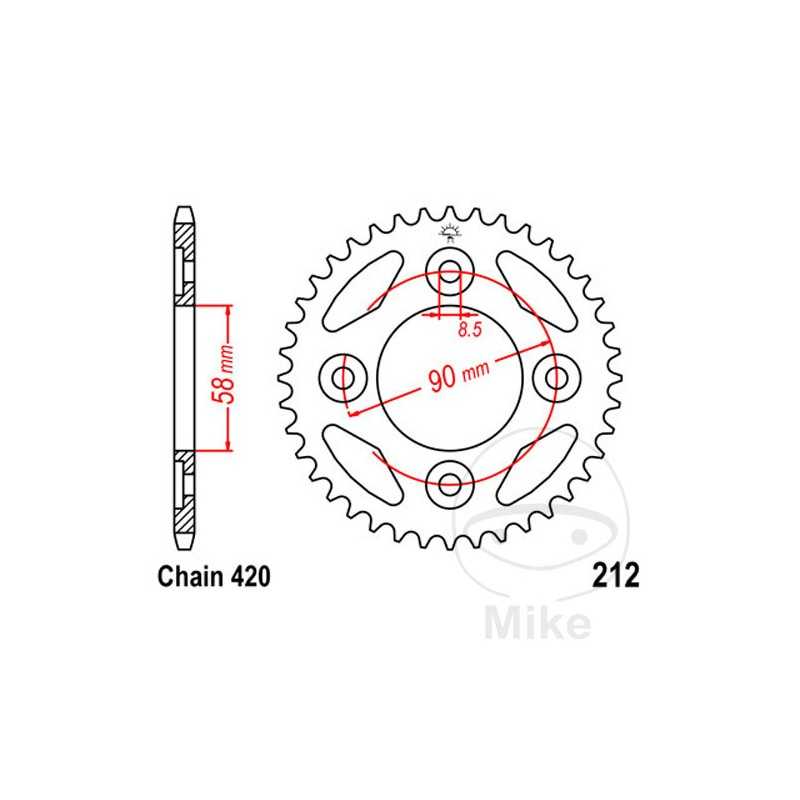

DIVISION: 420
INSIDE DIAMETER: 58MM
CIRCLE SIZE: 90 MM
HOLE: 8.5MM
QUANTITY OF HOLES: 4
SCREW TYPE: FLAT HEAD
QTY TEETH: 35
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda AFS 110 2SH i Wave 8,7 CV, 6,4 kw 1cil. JC51A C Bastidores: LTM JC51A henceforthC5000001-- 2012-2014
Honda AFS 110 CSF i Wave 8,7 CV, 6,4 kw 1cil. JC51B F Bastidores: LTM JC51B-F5100001-- 2015-2016
Honda ANF 125 Innova 1cil. JC33A 3 Bastidores: MLH JC33A-25000001-MLH JC33A-49999999 2003-2004
Honda ANF 125 Innova 1cil. JC33A 5 Bastidores: MLH JC33A-55100001-MLH JC33A-55199999 2005
Honda ANF 125 Innova 1cil. JC33A 6 Bastidores: MLH JC33A-65200001-MLH JC33A-65999999 2006
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A 7 Bastidores: MLH JC37A-75000001-- 2007-2009
Honda ANF 125 Innova 9,2 CV, 6,8 kw 1cil. JC37A A Bastidores: MLH JC37A-A5100001-- 2010-2012
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A D Bastidores: MLH JC61A-D5000001-MLH JC61A-D5099999 2013
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A E Bastidores: MLH JC61A-E5100001-MLH JC61A-E5199999 2014
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A F Bastidores: MLH JC61A-F5200001-- 2015
Honda MSX 125 9,8 CV, 7,2 kw 1cil. JC61A G Bastidores: MLH JC61A-G5300001-MLH JC61A-G5399999 2016
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A H Bastidores: MLH JC75A-H5000001-MLH JC75A-H5099999 2017
Honda MSX 125 A ABS 9,8 CV, 7,2 kw 1cil. JC75A J Bastidores: MLH JC75A-J5100001-- 2018-2020
Honda Z 125 MA Monkey ABS 9,4 CV, 6,9 kw 1cil. JB02A K Bastidores: MLH JB02A-K5000001-- 2018-2021
