JT SPROCKETS Transmission plate crown 39T P-520 Ø90 MM Ø108 727.09.37

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

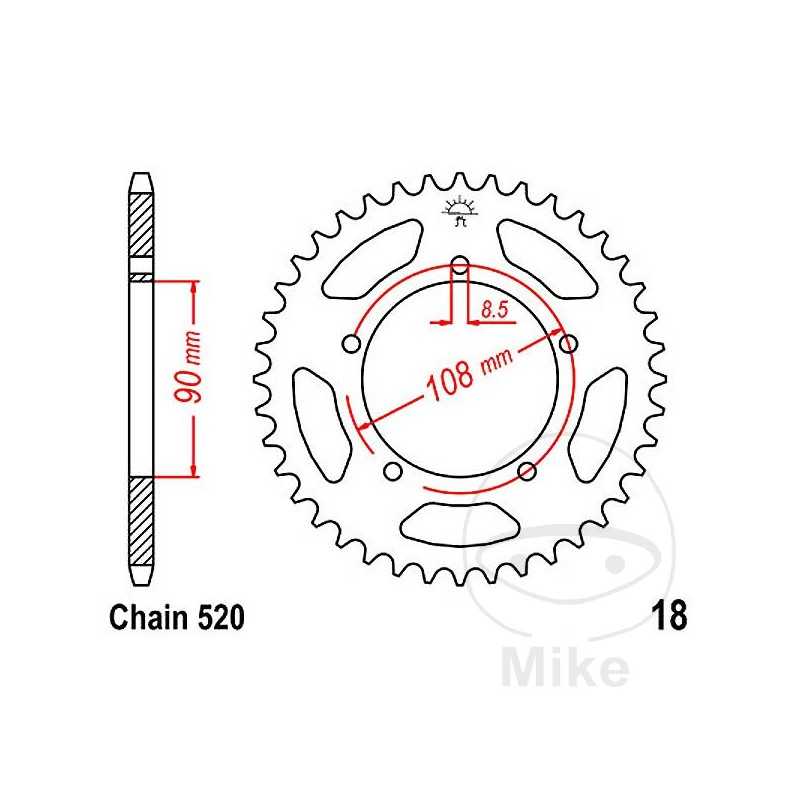

DIVISION: 520
INNER DIAMETER: 90MM
CIRCLE SIZE: 108 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 39
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MZ/MUZ SKORPION 660 RACE REPLICA 50 CV, 37 KW 1CIL. MUZ660 BASTIDORES: --- 1996-1999
MZ/MUZ SKORPION 660 SPORT 34 CV, 25 KW 1CIL. MUZ660 BASTIDORES: --- 1994-2002
MZ/MUZ SKORPION 660 SPORT 48 CV, 35 KW 1CIL. MUZ660 BASTIDORES: --- 1994-2002
MZ/MUZ SKORPION 660 TOUR 34 CV, 25 KW 1CIL. MUZ660 BASTIDORES: --- 1994-2002
MZ/MUZ SKORPION 660 TOUR 48 CV, 35 KW 1CIL. MUZ660 BASTIDORES: --- 1994-2002
MZ/MUZ SKORPION 660 TRAVELLER 34 CV, 25 KW 1CIL. MUZ660 BASTIDORES: --- 1995-2002
MZ/MUZ SKORPION 660 TRAVELLER 48 CV, 35 KW 1CIL. MUZ660 BASTIDORES: --- 1995-2002
