JT SPROCKETS Transmission plate crown 40T P-520 Ø120 MM Ø140 727.09.12

The JT Sprockets manufacturing is today the largest and most modern production plant for gears and sprockets in the world,

equipped among other things with the latest generation of CNC machine tools.

JT Sprockets produces the full range of gears and sprockets for the original equipment and aftermarket.



Each sprocket and chain goes through 25 production stages and thus undergoes more than ten individual quality checks in order to exit successful production.



JT Sprockets does it the right way: by turning, milling, and drilling! This is the only way to achieve the highest quality to the tightest tolerances and the best tooth profile.

After subsequent thermal compensation each item is checked by hand - so JT Sprockets sets new quality standards in the motorcycle industry.

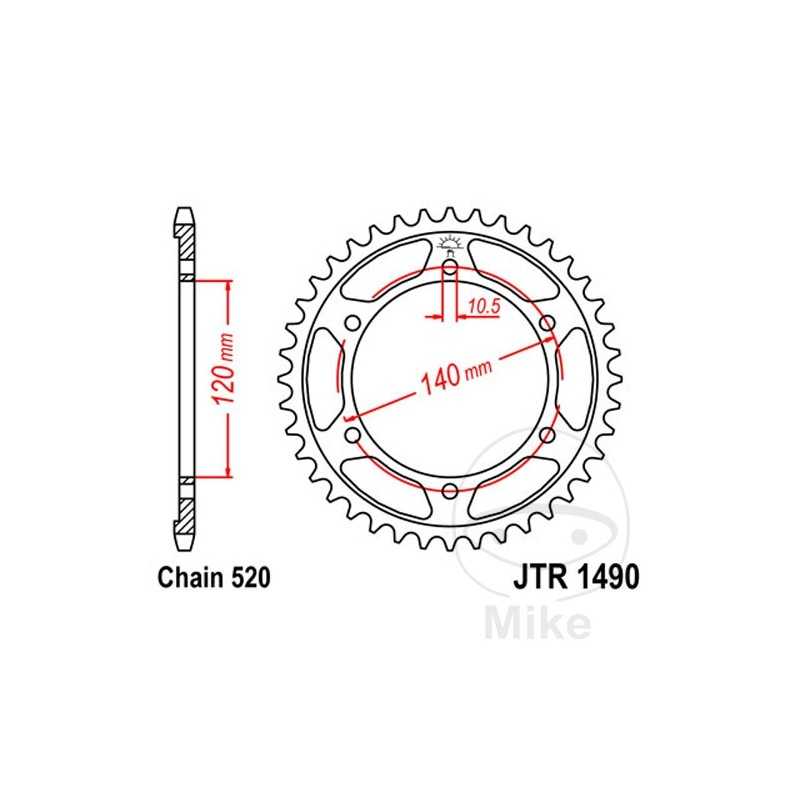

DIVISION: 520
INNER DIAMETER: 120MM
CIRCLE SIZE: 140 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda NSR 250 R 40 CV, 29 kw 2cil. MC28 R Bastidores: MC28-1000001-MC28-1002443 1994
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 2R Bastidores: MC28-1000001-MC28-1006513 1994-1995
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 2T Bastidores: MC28-1200001-- 1996
Honda NSR 250 R SE 40 CV, 29 kw 2cil. MC28 T Bastidores: MC28-1200001-- 1997-1999
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3R Bastidores: MC28-1000001-MC28-1006013 1994
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3S Bastidores: MC28-1100001-MC28-1100901 1995
Honda NSR 250 R SP 40 CV, 29 kw 2cil. MC28 3T Bastidores: MC28-1200001-- 1996
Kawasaki EN 500 C 34 CV, 25 kw 2cil. EN500ACA 4 Bastidores: EN500ACA-156001-EN500ACA-164000 1999
Kawasaki EN 500 C 34 CV, 25 kw 2cil. EN500ACA 5 Bastidores: EN500ACA-164001-EN500ACA-168000 2000
Kawasaki EN 500 C 34 CV, 25 kw 2cil. EN500ACA 6 Bastidores: EN500ACA-168001-EN500ACA-173000 2001
Kawasaki EN 500 C 34 CV, 25 kw 2cil. EN500ACA 7 Bastidores: EN500ACA-173001-EN500ACA-180000 2002
Kawasaki EN 500 C 34 CV, 25 kw 2cil. EN500ACA 8 Bastidores: EN500ACA-180001-EN500ACA-999999 2003
Kawasaki EN 500 C 46 CV, 34 kw 2cil. EN500ACA 4 Bastidores: EN500ACA-156001-EN500ACA-164000 1999
Kawasaki EN 500 C 46 CV, 34 kw 2cil. EN500ACA 5 Bastidores: EN500ACA-164001-EN500ACA-168000 2000
Kawasaki EN 500 C 46 CV, 34 kw 2cil. EN500ACA 6 Bastidores: EN500ACA-168001-EN500ACA-173000 2001
Kawasaki EN 500 C 46 CV, 34 kw 2cil. EN500ACA 7 Bastidores: EN500ACA-173001-EN500ACA-180000 2002
Kawasaki EN 500 C 46 CV, 34 kw 2cil. EN500ACA 8 Bastidores: EN500ACA-180001-EN500ACA-999999 2003
Kawasaki EN 500 C 46/34 CV, 34/25 kw 2cil. EN500C 1 Bastidores: EN500C henceforth00001-EN500C henceforth05000 1996
Kawasaki EN 500 C 46/34 CV, 34/25 kw 2cil. EN500C 2 Bastidores: EN500C henceforth05001-EN500C henceforth07000 1997
Kawasaki EN 500 C 46/34 CV, 34/25 kw 2cil. EN500C 3 Bastidores: EN500C henceforth07001-EN500C-999999 1998
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA BF Bastidores: EJ800AAA henceforth00001-EJ800AAA henceforth04232 2011
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA BS Bastidores: EJ800AAA henceforth04233-EJ800AAA henceforth08000 2011
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA CF Bastidores: EJ800AAA henceforth08001-EJ800AAA henceforth15000 2012
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA DF Bastidores: EJ800AAA henceforth15001-EJ800AAA henceforth18000 2013
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA EF Bastidores: EJ800AAA henceforth18001-EJ800AAA henceforth23000 2014
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA FF Bastidores: EJ800AAA henceforth23001-EJ800AAA henceforth26000 2015
Kawasaki W 800 A 48 CV, 35 kw 2cil. EJ800AAA GF Bastidores: EJ800AAA henceforth26001-EJ800AAA-999999 2016-2017
Kawasaki W 800 A Black Edition 48 CV, 35 kw 2cil. EJ800AAA FFA Bastidores: EJ800AAA henceforth23001-EJ800AAA henceforth26000 2015
Kawasaki W 800 A Final Edition 48 CV, 35 kw 2cil. EJ800AAA GS Bastidores: EJ800AAA henceforth26001-EJ800AAA-999999 2016-2017
Kawasaki W 800 A Special Edition 48 CV, 35 kw 2cil. EJ800AAA CFA Bastidores: EJ800AAA henceforth08001-EJ800AAA henceforth15000 2012
Kawasaki W 800 A Special Edition 48 CV, 35 kw 2cil. EJ800AAA DFA Bastidores: EJ800AAA henceforth15001-EJ800AAA henceforth18000 2013
Kawasaki W 800 A Special Edition 48 CV, 35 kw 2cil. EJ800AAA EFA Bastidores: EJ800AAA henceforth18001-EJ800AAA henceforth23000 2014
Kawasaki W 800 A Special Edition 48 CV, 35 kw 2cil. EJ800AAA GFA Bastidores: EJ800AAA henceforth26001-EJ800AAA-999999 2016-2017
Suzuki GSX-R 600 106/98 CV, 78/72 kw 4cil. AD3112 V Bastidores: AD3112 henceforth0100001-AD3112 henceforth0102576 1997
Suzuki GSX-R 750 128 CV, 94 kw 4cil. GR7DB T Bastidores: GR7DB henceforth00500001-GR7DB henceforth00503788 1996
Suzuki GSX-R 750 128 CV, 94 kw 4cil. GR7DB V Bastidores: GR7DB henceforth00503789-GR7DB henceforth00505080 1997
Suzuki GSX-R 750 135 CV, 99 kw 4cil. GR7DB W Bastidores: GR7DB henceforth00505081-GR7DB henceforth00507520 1998
Suzuki GSX-R 750 135 CV, 99 kw 4cil. GR7DB X Bastidores: GR7DB henceforth00507521-- 1999
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB T Bastidores: GR7DB henceforth00500001-GR7DB henceforth00503788 1996
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB V Bastidores: GR7DB henceforth00503789-GR7DB henceforth00505080 1997
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB W Bastidores: GR7DB henceforth00505081-GR7DB henceforth00507520 1998
Suzuki GSX-R 750 98 CV, 72 kw 4cil. GR7DB X Bastidores: GR7DB henceforth00507521-- 1999
