JT SPROCKETS Transmission plate crown 40T P-520 Ø134 MM Ø160 727.09.09

The JT Sprockets manufacturing is today the largest and most modern production plant for gears and sprockets in the world,

equipped among other things with the latest generation of CNC machine tools.

JT Sprockets produces the full range of gears and sprockets for the original equipment and aftermarket.



Each sprocket and chain goes through 25 production stages and thus undergoes more than ten individual quality checks in order to exit successful production.



JT Sprockets does it the right way: by turning, milling, and drilling! This is the only way to achieve the highest quality to the tightest tolerances and the best tooth profile.

After subsequent thermal compensation each item is checked by hand - so JT Sprockets sets new quality standards in the motorcycle industry.

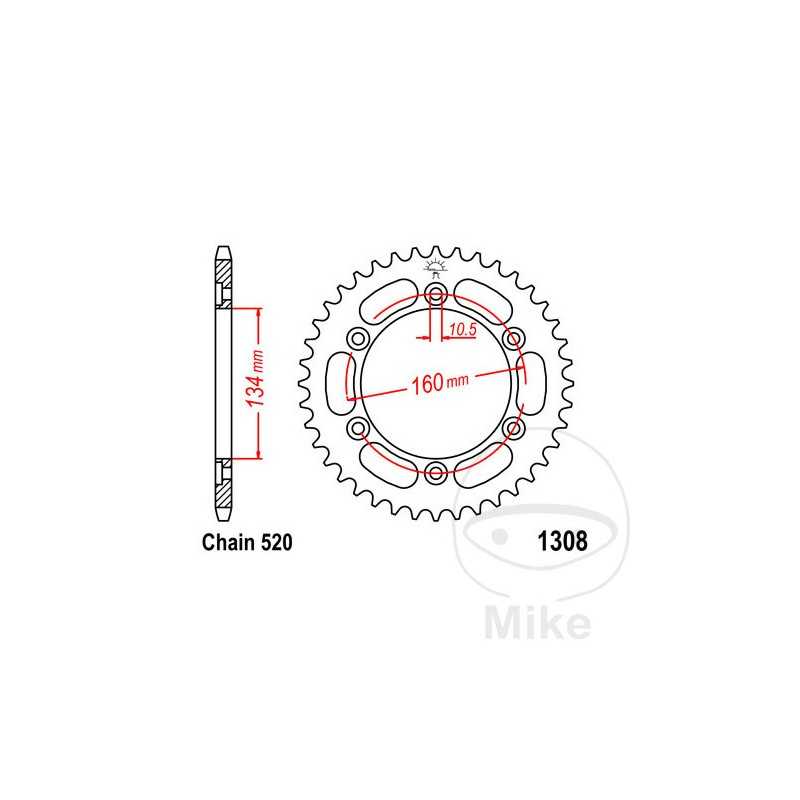

DIVISION: 520
INSIDE DIAMETER: 134MM
CIRCLE SIZE: 160 MM
HOLE: 10.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 40
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C 9 Bastidores: JH2 SC59C-9K000001-JH2 SC59C-9K099999 2009
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C A Bastidores: JH2 SC59C-AK100001-JH2 SC59C-AK199999 2010
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C B Bastidores: JH2 SC59C-BK200001-- 2011
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C C Bastidores: JH2 SC59C-CK300001-JH2 SC59C-CK399999 2012
Honda CBR 1000 RA Fireblade ABS 178 CV, 131 kw 4cil. SC59C D Bastidores: JH2 SC59C-DK400001-JH2 SC59C-DK499999 2013
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C E Bastidores: JH2 SC59C-EK500001-- 2014
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C F Bastidores: JH2 SC59C-FK600001-JH2 SC59C-FK699999 2015
Honda CBR 1000 RA Fireblade ABS 181 CV, 133 kw 4cil. SC59C G Bastidores: JH2 SC59C-GK700001-- 2016
Honda CBR 1000 RA Fireblade ABS 192 CV, 141 kw 4cil. SC77A H Bastidores: JH2 SC77A-HK000001-JH2 SC77A-HK099999 2017
Honda CBR 1000 RA Fireblade ABS 192 CV, 141 kw 4cil. SC77A J Bastidores: JH2 SC77A-JK100001-- 2018
Honda CBR 1000 RA Fireblade ABS 192 CV, 141 kw 4cil. SC77A K Bastidores: JH2 SC77A-KK200001-- 2019
Honda CBR 1000 RR Fireblade 171 CV, 126 kw 4cil. SC57A 4 Bastidores: JH2 SC57A-4M000001-JH2 SC57A-4M099999 2004
Honda CBR 1000 RR Fireblade 171 CV, 126 kw 4cil. SC57A 5 Bastidores: JH2 SC57A-5M100001-JH2 SC57A-5M199999 2005
Honda CBR 1000 RR Fireblade 171 CV, 126 kw 4cil. SC57B 4 Bastidores: JH2 SC57B-4M000001-JH2 SC57B-4M099999 2004
Honda CBR 1000 RR Fireblade 171 CV, 126 kw 4cil. SC57B 5 Bastidores: JH2 SC57B-5M100001-JH2 SC57B-5M199999 2005
Honda CBR 1000 RR Fireblade 172 CV, 126,5 kw 4cil. SC57A 6 Bastidores: JH2 SC57A-6M200001-JH2 SC57A-6M299999 2006
Honda CBR 1000 RR Fireblade 172 CV, 126,5 kw 4cil. SC57A 7 Bastidores: JH2 SC57A-7M300001-- 2007
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A 8 Bastidores: JH2 SC59A-8K020001-JH2 SC59A-8K029999 2008
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A 8 Bastidores: JH2 SC59A-8M000001-JH2 SC59A-8M019999 2008
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A 9 Bastidores: JH2 SC59A-9K100001-JH2 SC59A-9K199999 2009
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A A Bastidores: JH2 SC59A-AK200001-JH2 SC59A-AK299999 2010
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A B Bastidores: JH2 SC59A-BK300001-- 2011
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A C Bastidores: JH2 SC59A-CK400001-JH2 SC59A-CK499999 2012
Honda CBR 1000 RR Fireblade 178 CV, 131 kw 4cil. SC59A D Bastidores: JH2 SC59A-DK500001-JH2 SC59A-DK599999 2013
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A E Bastidores: JH2 SC59A-EK600001-- 2014
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A F Bastidores: JH2 SC59A-FK700001-JH2 SC59A-FK799999 2015
Honda CBR 1000 RR Fireblade 181 CV, 133 kw 4cil. SC59A G Bastidores: JH2 SC59A-GK800001-- 2016
Honda CBR 1000 RR S1 Fireblade SP-1 ABS 192 CV, 141 kw 4cil. SC77B H Bastidores: JH2 SC77B-HK000001-JH2 SC77B-HK099999 2017
Honda CBR 1000 RR S1 Fireblade SP-1 ABS 192 CV, 141 kw 4cil. SC77B J Bastidores: JH2 SC77B-JK100001-- 2018
Honda CBR 1000 RR S1 Fireblade SP-1 ABS 192 CV, 141 kw 4cil. SC77B K Bastidores: JH2 SC77B-KK200001-- 2019
Honda CBR 1000 RR S2 Fireblade SP-2 ABS 192 CV, 141 kw 4cil. SC77C H Bastidores: JH2 SC77C-HK000001-JH2 SC77C-HK099999 2017
Honda CBR 1000 RR S2 Fireblade SP-2 ABS 192 CV, 141 kw 4cil. SC77C J Bastidores: JH2 SC77C-JK100001-- 2018-2019
Honda CBR 1000 RR-R Fireblade 30th Anniversary ABS 217 CV, 160 kw 4cil. SC82A STN Bastidores: JH2 SC82A-NK100001-- 2022-2023
Honda CBR 1000 RR-R Fireblade ABS 217 CV, 160 kw 4cil. SC82A STL Bastidores: JH2 SC82A-LK000001-JH2 SC82A-LK099999 2020-2021
Honda CBR 1000 RR-R Fireblade ABS 217 CV, 160 kw 4cil. SC82A STN Bastidores: JH2 SC82A-NK100001-- 2022-2023
Honda CBR 1000 RR-R Fireblade SP ABS 217 CV, 160 kw 4cil. SC82B SPL Bastidores: JH2 SC82B-LK000001-JH2 SC82B-LK099999 2020-2021
Honda CBR 1000 RR-R Fireblade SP ABS 217 CV, 160 kw 4cil. SC82B SPN Bastidores: JH2 SC82B-NK100001-- 2022-2023
Honda CBR 1000 RRS Fireblade Edition 172 CV, 126 kw 4cil. SC57D 7 Bastidores: --- 2007
Honda CBR 1000 RRS Fireblade Edition 178 CV, 131 kw 4cil. SC59D 8 Bastidores: --- 2008
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E E Bastidores: JH2 SC59E-EK400001-- 2014
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E F Bastidores: JH2 SC59E-FK500001-JH2 SC59E-FK599999 2015
Honda CBR 1000 S Fireblade SP 181 CV, 133 kw 4cil. SC59E G Bastidores: JH2 SC59E-GK600001-- 2016
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G E Bastidores: JH2 SC59G-EK100001-- 2014
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G F Bastidores: JH2 SC59G-FK200001-JH2 SC59G-FK299999 2015
Honda CBR 1000 SA Fireblade SP ABS 181 CV, 133 kw 4cil. SC59G G Bastidores: JH2 SC59G-GK300001-- 2016
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 1 Bastidores: JH2 PC35F-1M200001-JH2 PC35F-1M299999 2001
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 2 Bastidores: JH2 PC35F-2M300001-JH2 PC35F-2M399999 2002
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 3 Bastidores: JH2 PC35F-3M400001-JH2 PC35F-3M499999 2003
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 4 Bastidores: JH2 PC35F-4M500001-- 2004
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 5 Bastidores: JH2 PC35F-5M600001-JH2 PC35F-5M699999 2005
Honda CBR 600 F 109 CV, 80 kw 4cil. PC35F 6 Bastidores: JH2 PC35F-6M700001-- 2006-2007
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 1 Bastidores: JH2 PC35D-1M200001-JH2 PC35D-1M299999 2001
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 2 Bastidores: JH2 PC35D-2M300001-JH2 PC35D-2M399999 2002
Honda CBR 600 F 34 CV, 25 kw 4cil. PC35D 3 Bastidores: JH2 PC35D-3M400001-JH2 PC35D-3M499999 2003
Honda CBR 600 FR Rossi 109 CV, 80 kw 4cil. PC35H 1 Bastidores: JH2 PC35H-1M250001-JH2 PC35H-1M299999 2001
Honda CBR 600 FR Rossi 109 CV, 80 kw 4cil. PC35H 2 Bastidores: JH2 PC35H-2M310001-JH2 PC35H-2M319999 2002
Honda CBR 600 FS Sport 109 CV, 80 kw 4cil. PC35H 1 Bastidores: JH2 PC35H-1M200001-JH2 PC35H-1M249999 2001
Honda CBR 600 FS Sport 109 CV, 80 kw 4cil. PC35H 2 Bastidores: JH2 PC35H-2M300001-JH2 PC35H-2M309999 2002
Honda CBR 600 RR 114 CV, 84 kw 4cil. PC37B 3 Bastidores: JH2 PC37B-3M000001-JH2 PC37B-3M099999 2003
Honda CBR 600 RR 114 CV, 84 kw 4cil. PC37B 4 Bastidores: JH2 PC37B-4M100001-JH2 PC37B-4M199999 2004
Honda CBR 600 RR 117 CV, 86 kw 4cil. PC37A 3 Bastidores: JH2 PC37A-3M000001-JH2 PC37A-3M099999 2003
Honda CBR 600 RR 117 CV, 86 kw 4cil. PC37A 4 Bastidores: JH2 PC37A-4M100001-JH2 PC37A-4M199999 2004
Honda CBR 600 RR 117 CV, 86 kw 4cil. PC37A 5 Bastidores: JH2 PC37A-5M200001-JH2 PC37A-5M299999 2005
Honda CBR 600 RR 117 CV, 86 kw 4cil. PC37B 5 Bastidores: JH2 PC37B-5M200001-JH2 PC37B-5M299999 2005
Honda CBR 600 RR 117 CV, 86 kw 4cil. PC37B 6 Bastidores: JH2 PC37B-6M300001-- 2006
Honda CBR 900 RR Fireblade 147 CV, 108 kw 4cil. SC44B 1 Bastidores: JH2 SC44B-1M100001-- 2001
Honda CBR 900 RR Fireblade 147 CV, 108 kw 4cil. SC44B Y Bastidores: JH2 SC44B-YM000001-- 2000
Honda CBR 900 RR Fireblade 150 CV, 110 kw 4cil. SC50A 2 Bastidores: JH2 SC50A-2M000001-- 2002
Honda CBR 900 RR Fireblade 150 CV, 110 kw 4cil. SC50A 3 Bastidores: JH2 SC50A-3M000001-- 2003
Honda CBR 900 RR Fireblade 98 CV, 72 kw 4cil. SC50B 2 Bastidores: JH2 SC50B-2M000001-- 2002
Honda CBR 900 RR Fireblade 98 CV, 72 kw 4cil. SC50B 3 Bastidores: JH2 SC50B-3M100001-- 2003
Honda VTR 1000 SP1 132 CV, 97 kw 2cil. SC45A 1 Bastidores: JH2 SC45A-1M100001-JH2 SC45A-1M199999 2001
Honda VTR 1000 SP1 132 CV, 97 kw 2cil. SC45A Y Bastidores: JH2 SC45A-YM000001-JH2 SC45A-YM099999 2000
Honda VTR 1000 SP2 135 CV, 99 kw 2cil. SC45A 2 Bastidores: JH2 SC45A-2M200001-JH2 SC45A-2M299999 2002
Honda VTR 1000 SP2 135 CV, 99 kw 2cil. SC45A 3 Bastidores: JH2 SC45A-3M300001-JH2 SC45A-3M399999 2003
Honda VTR 1000 SP2 135 CV, 99 kw 2cil. SC45A 4 Bastidores: JH2 SC45A-4M400001-JH2 SC45A-4M499999 2004
Honda VTR 1000 SP2 135 CV, 99 kw 2cil. SC45A 5 Bastidores: JH2 SC45A-5M500001-JH2 SC45A-5M599999 2005
Honda VTR 1000 SP2 135 CV, 99 kw 2cil. SC45A 6 Bastidores: JH2 SC45A-6M600001-- 2006
