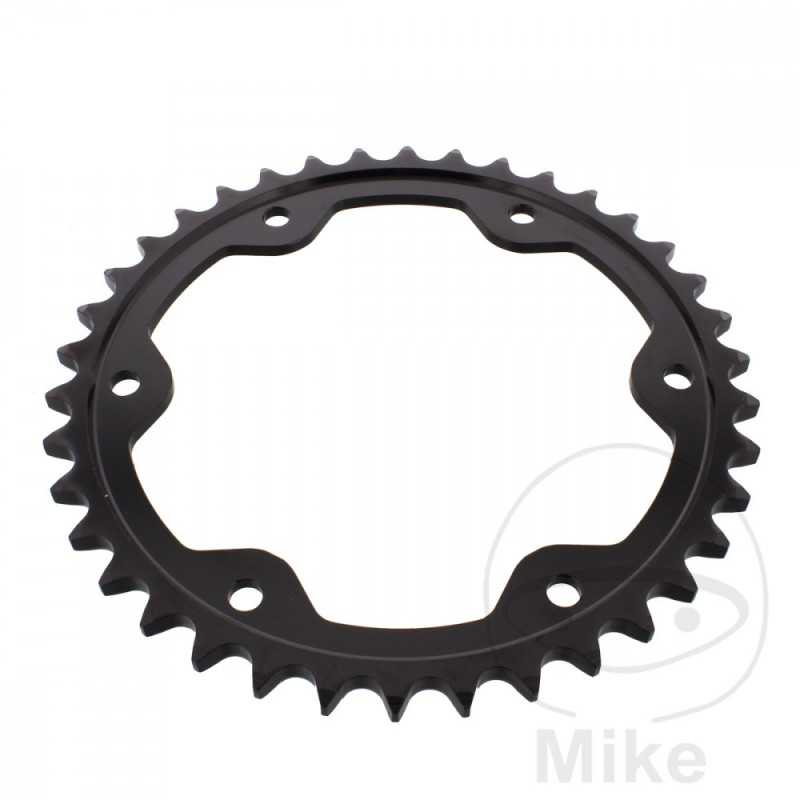

JT SPROCKETS Transmission plate crown 38T P-525 Ø153 MM Ø155 727.05.86

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 525
INSIDE DIAMETER: 153MM
CIRCLE SIZE: 155 MM
HOLE: 8.5MM
HOLES QUANTITY: 6
SCREW TYPE: FLAT HEAD
QTY TEETH: 38
CROWN TYPE: STEEL


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
KTM Super Duke 1290 GT LC8 ABS 173 CV, 127 kw 2cil. - Bastidores: --- 2016-2018
KTM Super Duke 1290 GT LC8 ABS 175 CV, 128,7 kw 2cil. - Bastidores: --- 2019-2020
KTM Super Duke 1290 GT LC8 ABS Euro5 175 CV, 128,7 kw 2cil. - Bastidores: --- 2021-2022
KTM Super Duke 1290 R LC8 ABS 173 CV, 127 kw 2cil. - Bastidores: --- 2014-2016
KTM Super Duke 1290 R LC8 ABS 177 CV, 130 kw 2cil. - Bastidores: --- 2017-2019
KTM Super Duke 1290 R LC8 ABS 180 CV, 132 kw 2cil. - Bastidores: --- 2020
KTM Super Duke 1290 R LC8 ABS Euro5 180 CV, 132 kw 2cil. - Bastidores: --- 2021-2022
KTM Super Duke 1290 R LC8 Evo ABS Euro5 180 CV, 132 kw 2cil. - Bastidores: --- 2022
KTM Super Duke 1290 R LC8 Special Edition ABS 173 CV, 127 kw 2cil. - Bastidores: --- 2016-2017
KTM Super Duke 1290 RR LC8 ABS Euro5 180 CV, 132 kw 2cil. - Bastidores: --- 2021-2022
